Hi all,
as as much as I look I just cannot find the right information.
im having some trouble with my x308 xjr
intermittently I get (at the same time)
1- low coolant level
2 - abs failer
3 - traction control failer
4 - windscreen washer pump inop
does anyone have some proper wiring diagrams please?
regards Luke
as as much as I look I just cannot find the right information.
im having some trouble with my x308 xjr
intermittently I get (at the same time)
1- low coolant level
2 - abs failer
3 - traction control failer
4 - windscreen washer pump inop
does anyone have some proper wiring diagrams please?
regards Luke
#2
What Year ?
Remove and clean the face of the wheel speed sensors as they cloud over with debris .
Fuse for washer pump ? Location in handbook .
JagRepair.com - Jaguar Repair Information Resource
Remove and clean the face of the wheel speed sensors as they cloud over with debris .
Fuse for washer pump ? Location in handbook .
JagRepair.com - Jaguar Repair Information Resource
Last edited by Lady Penelope; 11-26-2017 at 02:19 PM.
#3
I've deleted your duplicate thread from General Tech Help to X300 forum. This is the polace to post technical questions about your model.
Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.
Graham
#4
Hi all,
as as much as I look I just cannot find the right information.
im having some trouble with my x308 xjr
intermittently I get (at the same time)
1- low coolant level
2 - abs failer
3 - traction control failer
4 - windscreen washer pump inop
does anyone have some proper wiring diagrams please?
regards Luke
as as much as I look I just cannot find the right information.
im having some trouble with my x308 xjr
intermittently I get (at the same time)
1- low coolant level
2 - abs failer
3 - traction control failer
4 - windscreen washer pump inop
does anyone have some proper wiring diagrams please?
regards Luke
I know the ABS/TRAC issue is usually a soldering issue:
Low coolant/windscreen washer popping at the same time though... no idea.
#5

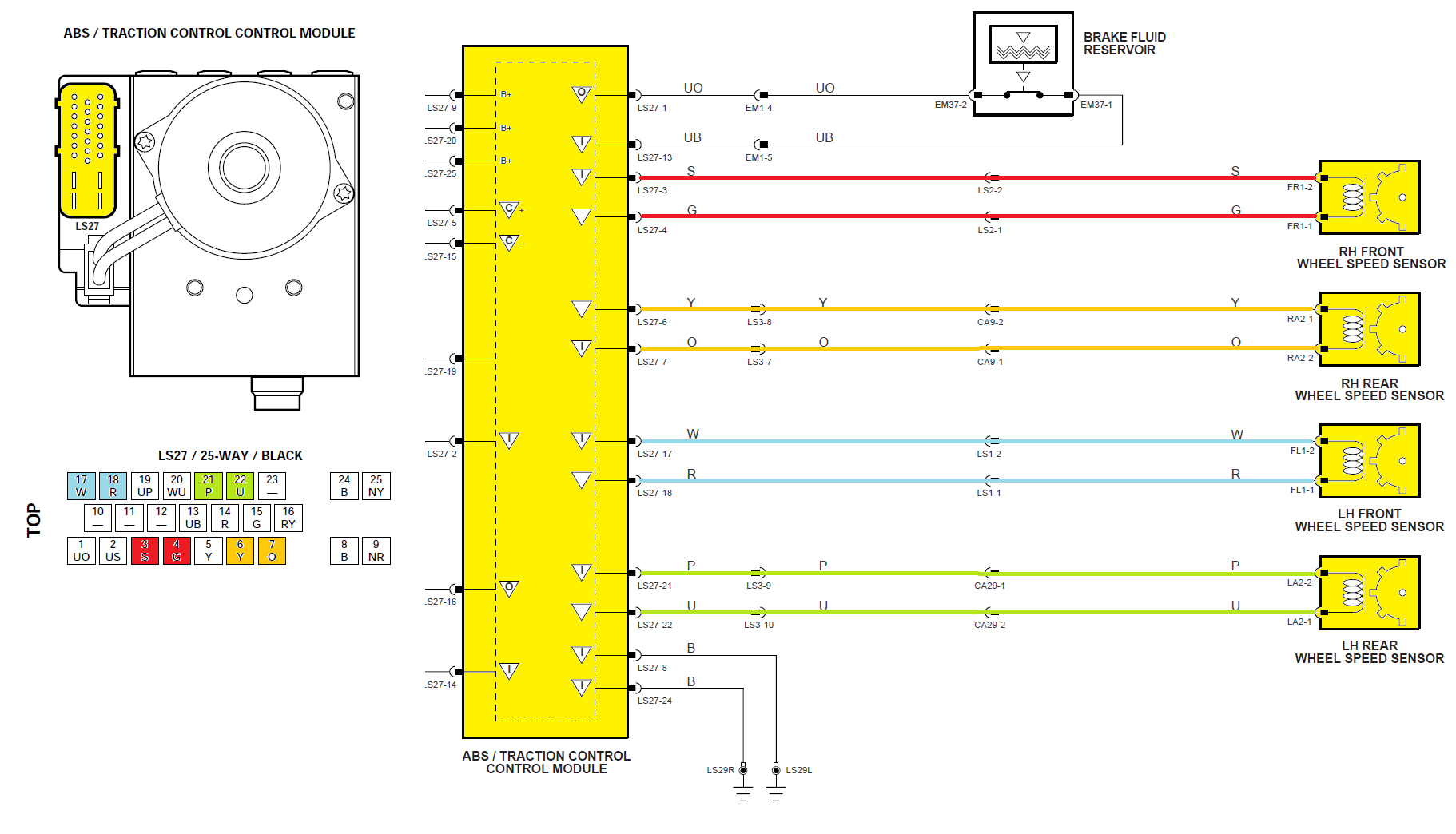

The easier try on the ABS is the sensor cleaning but don't try to hard to get them out as they do break . don't have to jack the car . 10 mm socket . Spray some penetrating oil on it overnight as the area of interest is not so much the bolts but the boss in the wheel hub . You must run the car past 12.5 MPH to clear the code . Later we'll look at reading the sensors with a meter to get a fundamental reading ( not the actual functional reading as it is a sinusoidal wave ) to see if a sensor is bad . You'll see on the print I made the sensor wire pairs are different colors and the connector map is referenced to the module view side so you'll have to reverse it for connector in hand view . 1300 ohms is what they should read with wheels not spinning so you don't have to jack the car . And with wheel spinning by hand you should see about 1 volt AC . Fuse ?
Could be the common bad soldier point in the ABS module ( easy to repair yourself ) but easiest things first .
Have you located the windshield washer pump and coolant level fuses in the handbook ? The washer pump connector gets contaminated and corroded . Same could be said of the coolant level connector . See this link on the connector :
https://www.jaguarforums.com/forum/x...nector-192735/
The handbook downloads with the different years can be found in this thread post #6 :
https://www.jaguarforums.com/forum/x...ownload-66381/
Keep in mind the Jaguar V8 series of engine changed through the years of the XJ8 or X308 and the wiring guides are different .
The most useful TSB is 303-43 and 47 for engine regulation / control troubleshooting tree , but it applies to the AJ26 series as the later series regulate about the same .
http://www.mediafire.com/file/4f96pw...+Diagnosis.pdf
http://www.mediafire.com/file/dsq7at...Flowcharts.pdf
Located in the " How To " links at the top of the X308 section above along with other helpful documents .
