Fuel Tank Woes - post reseal testing?
#1
![Default](/forum/images/icons/icon1.gif)
Had a question - I just had my '89 tank resealed (the tank is the model that doesn't have a fuel pump in the tank, but has a vent type thing on the top of the tank) that bumps out from the tank itself.
Since my tank is still out of the vehicle at the moment, i'd like to verify that nothing's blocked internally - is there a good way I can verify this, on this style tank?
I had some gas in it to test a few weeks back and it leaked out and created quite a mess. Even though I had only hooked up the lines and not actually started the vehicle up, I was surprised it had built up quite a bit of pressure from sitting overnight, as well. I checked the rochester valve up by the charcoal canister and that seemed to be operating properly..so I'd like to verify this configuration one more time, as leaking gas tanks over exhaust system lines aren't my favorite problem to deal with!
Pete
Since my tank is still out of the vehicle at the moment, i'd like to verify that nothing's blocked internally - is there a good way I can verify this, on this style tank?
I had some gas in it to test a few weeks back and it leaked out and created quite a mess. Even though I had only hooked up the lines and not actually started the vehicle up, I was surprised it had built up quite a bit of pressure from sitting overnight, as well. I checked the rochester valve up by the charcoal canister and that seemed to be operating properly..so I'd like to verify this configuration one more time, as leaking gas tanks over exhaust system lines aren't my favorite problem to deal with!
Pete
#2
![Default](/forum/images/icons/icon1.gif)
Pete,
Did you (or a vendor) use the liquid type sealer on the interior of the tank?
I choose not to use an interior liner because I was concerned about two things; a plugged line and improper adhesion/coverage on the interior baffling of the tank. I didn't want the lining peeling away after some time and creating a clogged feed/return line.
I'm assuming the leak a few weeks back may be due to the o-rings needing to be replaced, or the lines didn't seat properly to the tank. When I restored my tank, I replaced the o-rings on both lines and purchased new spring clips for the line-to-tank connections.
In regard to the presure build-up, should be typical to prevent tank collapse. There are two lines out of the top of the tank, one to the canister, the other (breather hose) to the fuel filler box assembly, does your tank look like this one:
Fuel Tank-Up To (V)629285 - Parts For XJ6 (2.9, 3.2, 3.6, 4.0) from (V)500001 to (V)667828 | Jaguar Classic Parts UK
One of the lines from the tank may have been covered by sealer, speculation on my part, but that's what I would check out.
Here's my restoration:
Jaguar Forums - Jaguar Enthusiasts Forum - Rob Evenson's Album: Fuel Tank Leak Repair and Rust Aversion Paint applied
Let us know what you discover, good luck.
Did you (or a vendor) use the liquid type sealer on the interior of the tank?
I choose not to use an interior liner because I was concerned about two things; a plugged line and improper adhesion/coverage on the interior baffling of the tank. I didn't want the lining peeling away after some time and creating a clogged feed/return line.
I'm assuming the leak a few weeks back may be due to the o-rings needing to be replaced, or the lines didn't seat properly to the tank. When I restored my tank, I replaced the o-rings on both lines and purchased new spring clips for the line-to-tank connections.
In regard to the presure build-up, should be typical to prevent tank collapse. There are two lines out of the top of the tank, one to the canister, the other (breather hose) to the fuel filler box assembly, does your tank look like this one:
Fuel Tank-Up To (V)629285 - Parts For XJ6 (2.9, 3.2, 3.6, 4.0) from (V)500001 to (V)667828 | Jaguar Classic Parts UK
One of the lines from the tank may have been covered by sealer, speculation on my part, but that's what I would check out.
Here's my restoration:
Jaguar Forums - Jaguar Enthusiasts Forum - Rob Evenson's Album: Fuel Tank Leak Repair and Rust Aversion Paint applied
Let us know what you discover, good luck.
#3
![Default](/forum/images/icons/icon1.gif)
Yes, that's the right tank....exactly..
I replaced those o rings and paid close attention to the sizing of the new rings, and the seating of the two pipes...they really 'snap' into place which allows the retaining rings to turn properly and lock the lines in place. So that seemed ok.
I had a local shop handle the sealing - they use a product called Red Kote. I'm sure there's 100 posts on the internet saying this is the best product in the world, and another 100 that says it's the worst...especially given the nature that the product, that it can be obtained by anyone and that doesn't guarantee a high level of standard prep for all of the applications that people are reviewing out there.
I have used Gas Tank renu products in the past, but it's an expensive route (more than my car cost, actually...) and in the past i've used it with with tanks that were fairly rough or in mounting locations that would require an engine pull to get to the tanks again....
This XJ6 wasn't that bad to pull the tank...not that I want to make tank swaps an ongoing maintenance task for unstable repairs, but I am concerned that the most likely leak area is right above an area where there is an exhaust pipe run. Since the tank is out of the car again, I thought I would examine this closely one more time - just to make sure (like you mentioned) these other vent pipes and such were clear.
Pete
I replaced those o rings and paid close attention to the sizing of the new rings, and the seating of the two pipes...they really 'snap' into place which allows the retaining rings to turn properly and lock the lines in place. So that seemed ok.
I had a local shop handle the sealing - they use a product called Red Kote. I'm sure there's 100 posts on the internet saying this is the best product in the world, and another 100 that says it's the worst...especially given the nature that the product, that it can be obtained by anyone and that doesn't guarantee a high level of standard prep for all of the applications that people are reviewing out there.
I have used Gas Tank renu products in the past, but it's an expensive route (more than my car cost, actually...) and in the past i've used it with with tanks that were fairly rough or in mounting locations that would require an engine pull to get to the tanks again....
This XJ6 wasn't that bad to pull the tank...not that I want to make tank swaps an ongoing maintenance task for unstable repairs, but I am concerned that the most likely leak area is right above an area where there is an exhaust pipe run. Since the tank is out of the car again, I thought I would examine this closely one more time - just to make sure (like you mentioned) these other vent pipes and such were clear.
Pete
#4
![Default](/forum/images/icons/icon1.gif)
Sounds like you have some experience under your belt.
If I was in your position, I'd pull the tank too and re-examine the bottom the tank for pin-holes. That spot on my tank hadn't actually broken through, but it was thin enough to cause seepage. It you look at my pics again, you can see how the bottom of the tank takes a real beating resting on the shelf. I had a moisture issue which exasperated the issue.
Take out the tank, seal the line feed tubes, place it on saw horses and put a few gallons of water in and let it sit. I speculate if there is a weak enough breach in the metal, the newly applied lining may have also been breached when the fuel was put in.
I applied a layer of fiberglass on the bottom of mine to distance the tank from the shelf, then applied several layers of rust aversion paint on top of the fiberglass. I think I spent about $140 total for all cleaning supplies, fiberglass, rust aversion paint and a quart of the lining material.
If I was in your position, I'd pull the tank too and re-examine the bottom the tank for pin-holes. That spot on my tank hadn't actually broken through, but it was thin enough to cause seepage. It you look at my pics again, you can see how the bottom of the tank takes a real beating resting on the shelf. I had a moisture issue which exasperated the issue.
Take out the tank, seal the line feed tubes, place it on saw horses and put a few gallons of water in and let it sit. I speculate if there is a weak enough breach in the metal, the newly applied lining may have also been breached when the fuel was put in.
I applied a layer of fiberglass on the bottom of mine to distance the tank from the shelf, then applied several layers of rust aversion paint on top of the fiberglass. I think I spent about $140 total for all cleaning supplies, fiberglass, rust aversion paint and a quart of the lining material.
#5
![Default](/forum/images/icons/icon1.gif)
Still battling this. I have gas in the tank but it's not feeding the pump... I disconnect the fuel pump line and nothing comes out... I can blow some compressed air in the feed line and the pressure causes the air to come back out, but no gas. Now I'm trying to figure out what to do - if something is not connected internally, or broken internally, whatever it is, now I have a situation where I have a non-leaking tank that's also not allowing gas to come out of the tank. Good times
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
#6
![Default](/forum/images/icons/icon1.gif)
If your tank is the same as mine, (follow the link in the prior post) there are no internal components, other than the baffling, which has nothing to do with flow.
Have you removed the sending unit? It's a clear shot to see the bottom of the tank through the sending unit hole. There should be nothing obstructing flow....... unless there was an interior tank lining applied and it's worked its way loose.
Have you removed the sending unit? It's a clear shot to see the bottom of the tank through the sending unit hole. There should be nothing obstructing flow....... unless there was an interior tank lining applied and it's worked its way loose.
#7
![Default](/forum/images/icons/icon1.gif)
Thanks Rob, I'll take another look... I'm going to do another test on the 'new' pump to make sure it's doing what it's supposed to do as well... Seems to run for a few seconds on ignition start and stop..but no gas ever makes it's way to the pump from the tank.
If I recall from the last time I looked in the tank through the sending unit area (months ago) there was a pipe inside that had to remain hooked up...perhaps this was for the vent at the top? When I looked at the two connections on the bottom of the tank (from outside the tank), it looked like they had some sort of plastic seat (for the two o ring connectors), and the tubes themselves would do a turn right after going into the tank. (These 'seats' were black, as I looked into each it wasn't just open tank area...
The saga continues... I wish someone had another tank option near me, or even aftermarket ones available like the Series III.... here I am in the Motor City I have to make a 2 hour drive to even look at another potentially rusty tank replacement option from a wrecker..heh. Might even go with a custom tank if this gets too crazy..
Though, that would make this project crazier than it already is! heh
Pete
If I recall from the last time I looked in the tank through the sending unit area (months ago) there was a pipe inside that had to remain hooked up...perhaps this was for the vent at the top? When I looked at the two connections on the bottom of the tank (from outside the tank), it looked like they had some sort of plastic seat (for the two o ring connectors), and the tubes themselves would do a turn right after going into the tank. (These 'seats' were black, as I looked into each it wasn't just open tank area...
The saga continues... I wish someone had another tank option near me, or even aftermarket ones available like the Series III.... here I am in the Motor City I have to make a 2 hour drive to even look at another potentially rusty tank replacement option from a wrecker..heh. Might even go with a custom tank if this gets too crazy..
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Pete
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)

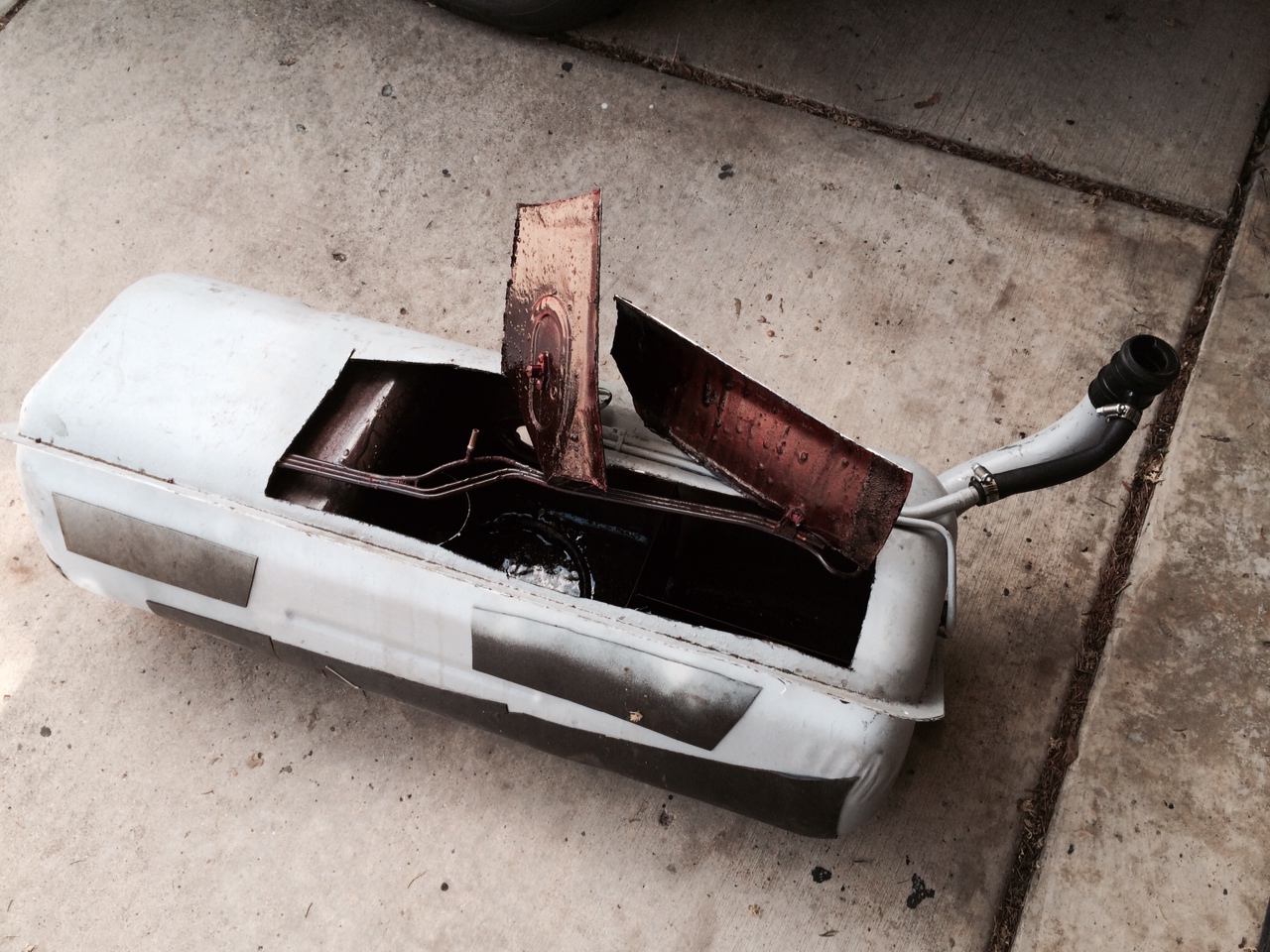

OK, so I finally gave up and sacrificed my tank in the name of science. Actually I made a 4th trip to the shop that 'sealed' my tank and they were just as animate as ever that it was going to be fine and "all the lines are clear". Three of the times I went back it came back leaking, so I wasn't exactly holding my breath, especially given the fact that they did such a poor job in cleaning up their botched repairs.
Anyway, I filled it up and surprise - still no gas coming out. That was the last straw with this frustrating task - I then purged the tank and cut it open and here is what is inside an 1989 Jaguar XJ6 Fuel Tank...

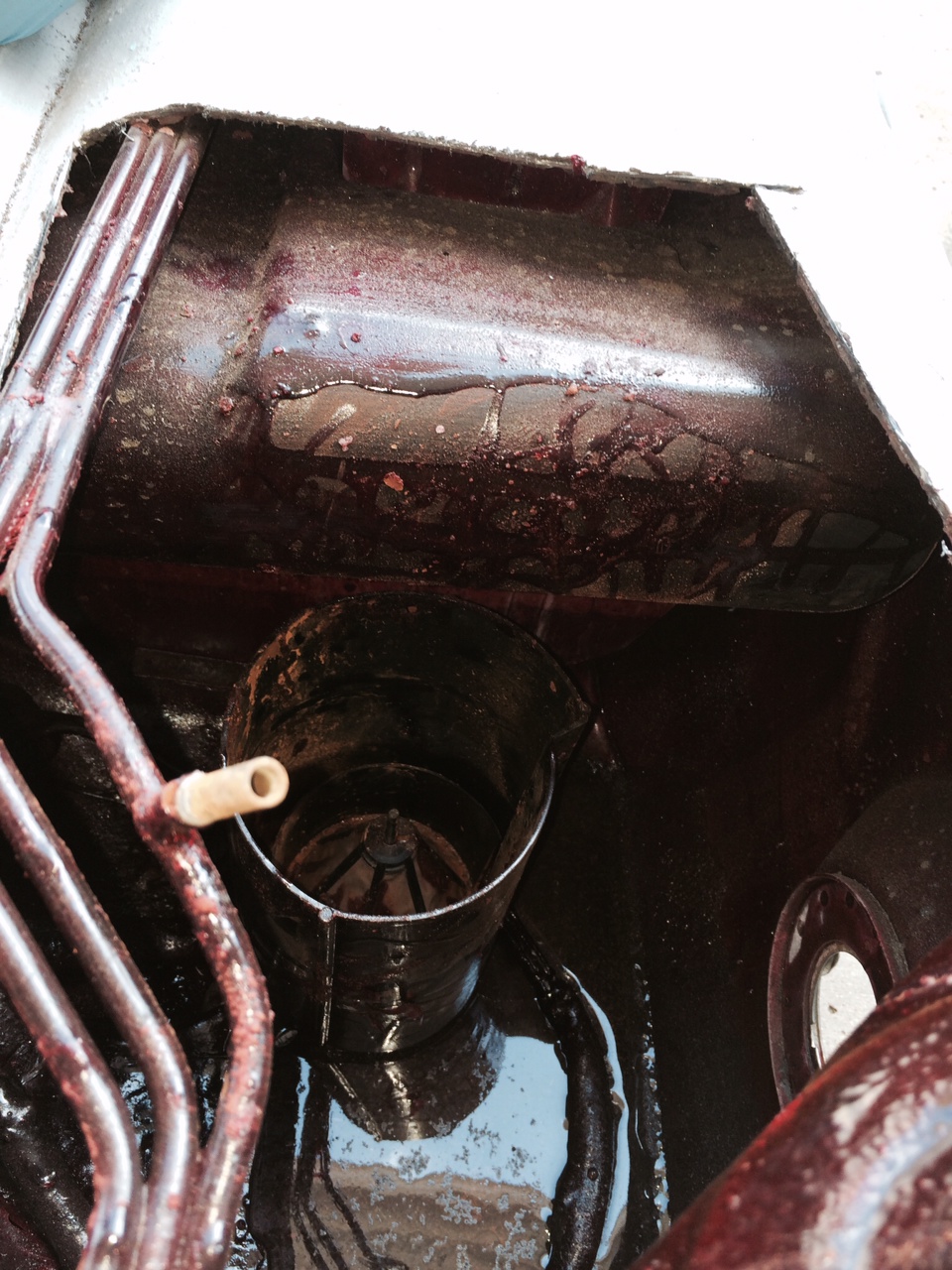

As you can see, the Red Kote fuel tank sealant plugged up the baffle for the feed pickup and in one of the photos you can see the water I filled the tank with, couldn't even get into the middle cylinder area where the pickup screen exists. All in all, a big waste of time. As you can see, that center pickup area is still covered in a layer of rust, so I'm pretty sure they didn't do the proper necessary prep (as I expected) to dissolve any surface rust inside the tank, ironic as that section was the rust that was the primary concern for having the tank sealed.
