New problem in my Kitten, ignition completely dead
#1
![Default](/forum/images/icons/icon1.gif)
Ok,
as I have tackled the light problem earlier and few other minor things this happens....![Icon Deadhorse](https://www.jaguarforums.com/forum/images/smilies/icon_deadhorse.gif)
Problem itself is clear, as I turn the ignition on there are no warning lights or any gauges waking up. Turn it to start and still more of nothing. Good thing is that the first position works and I can play the radio and open and close windows etc. atleast I can use music to cover my swearing (and I do swear like a pirate right now)
Few things I have checked already, the ignition relay (I do have a feeling it does not get the actuating current as the multimeter says only 2.something volts on the side pin and 11.55 volts on the lowest pin)
I tried to hotwire the car (just to figure out if it is a ignition lock problem, metered it and no anomalities there as far as I can tell. Cleaned the contacts and put it back together... I really do not want to do that again!) as you already guessed, nothing.
One thing I have supected is the old (not in use) alarm that had a immobilizer unit in it, I have taken that out and restored the ignition relay wire that was used in it. My own idea is that there is some wire that I have not figured out yet that was used in the immobilizer that causes the problem.

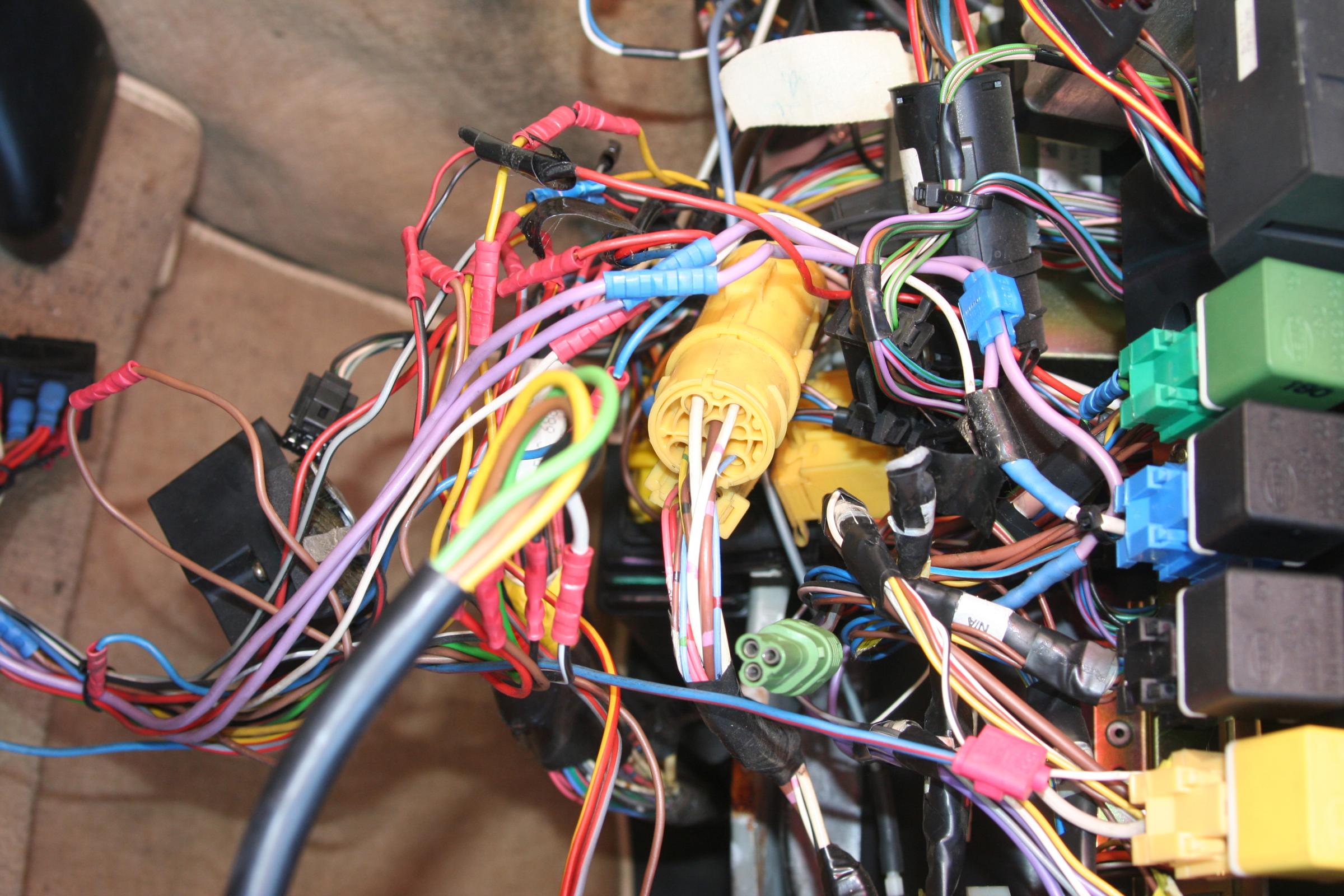

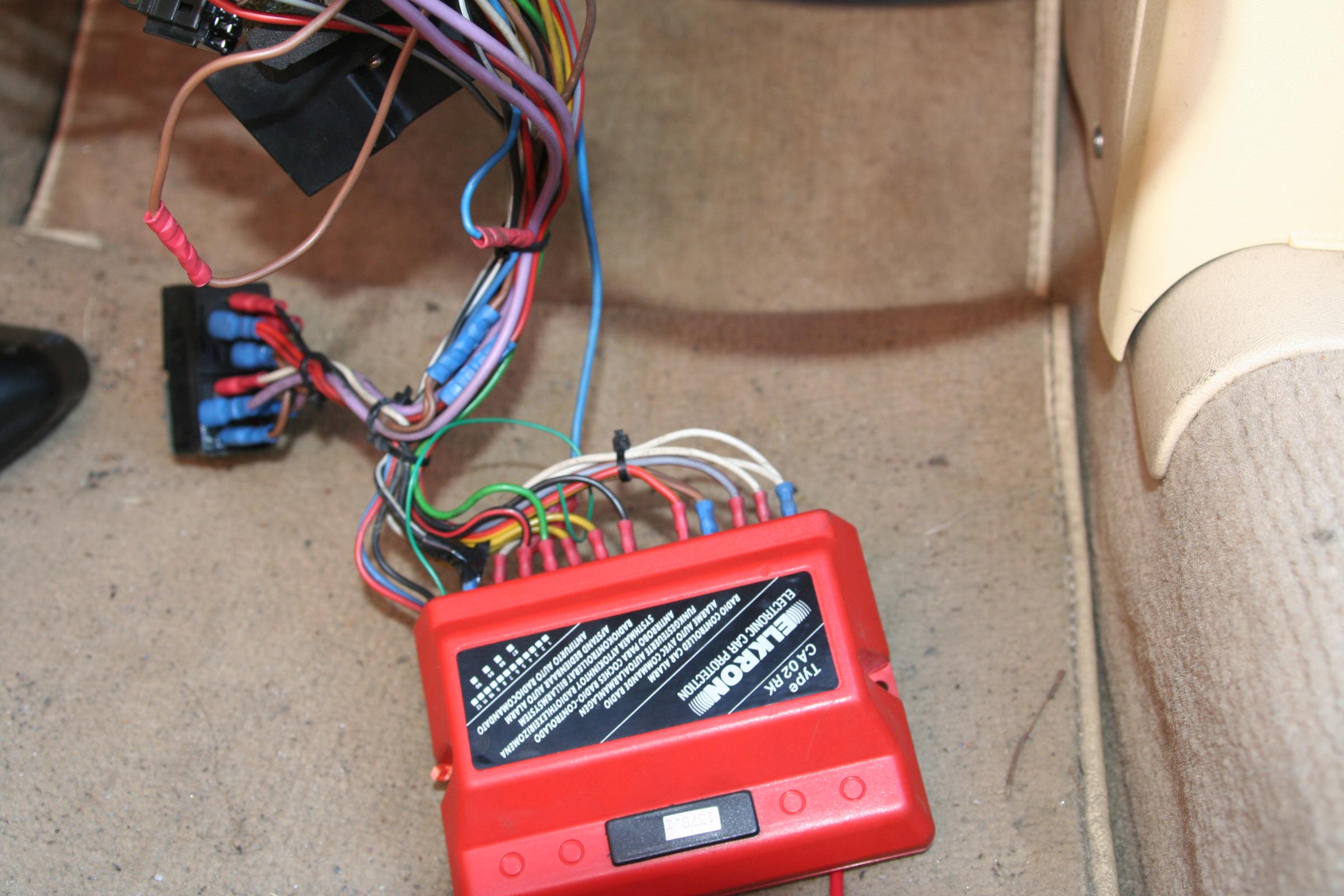

Few pics of the alarm and how it was installed
as I have tackled the light problem earlier and few other minor things this happens....
![Icon Deadhorse](https://www.jaguarforums.com/forum/images/smilies/icon_deadhorse.gif)
Problem itself is clear, as I turn the ignition on there are no warning lights or any gauges waking up. Turn it to start and still more of nothing. Good thing is that the first position works and I can play the radio and open and close windows etc. atleast I can use music to cover my swearing (and I do swear like a pirate right now)
Few things I have checked already, the ignition relay (I do have a feeling it does not get the actuating current as the multimeter says only 2.something volts on the side pin and 11.55 volts on the lowest pin)
I tried to hotwire the car (just to figure out if it is a ignition lock problem, metered it and no anomalities there as far as I can tell. Cleaned the contacts and put it back together... I really do not want to do that again!) as you already guessed, nothing.
One thing I have supected is the old (not in use) alarm that had a immobilizer unit in it, I have taken that out and restored the ignition relay wire that was used in it. My own idea is that there is some wire that I have not figured out yet that was used in the immobilizer that causes the problem.
Few pics of the alarm and how it was installed
