A/C, Dazed and confused.....
#21
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,920
Received 10,979 Likes
on
7,211 Posts
The servo is #4 in this illustration
Air Conditioning Components - Parts For Series III Saloon | Jaguar Heritage Parts UK
Cheers
DD
Air Conditioning Components - Parts For Series III Saloon | Jaguar Heritage Parts UK
Cheers
DD
#22
#23
The servo is #4 in this illustration
Air Conditioning Components - Parts For Series III Saloon | Jaguar Heritage Parts UK
Cheers
DD
Air Conditioning Components - Parts For Series III Saloon | Jaguar Heritage Parts UK
Cheers
DD

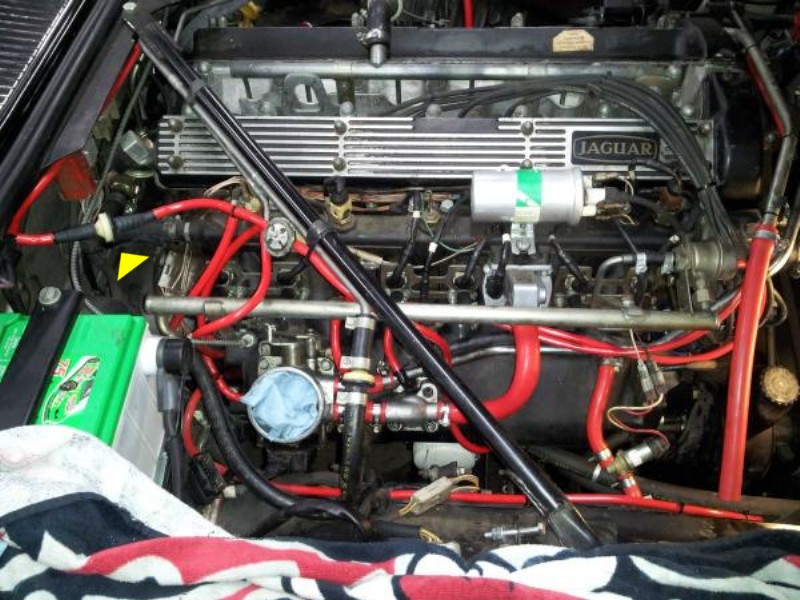

Those 2 vacuum switches, no.5 in Dougs pic, are the ones for the center vent and water valve. They are controlled by the cam in the servo.. Sometimes they are broken or plugged. Often the red and black lines from those switches have become disconnected. Check them at the servo.
At full cool 65 deg, the water valve should close by the vacuum from the red line.
You can see these valves working when the servo does its thing..You can see the end of these switches with servo in situ.
The following users liked this post:
Jose (04-06-2015)
