Ignition Switch Re-assembly
#1
![Default](/forum/images/icons/icon1.gif)
We pride ourselves in fixing something instead of buying a new one. Sure I could have bought a new ignition switch but rather fix the old one. However... I can't get it back together and have the "start" position spring back using the coiled up spring on the inside. I'm sure it's just a matter of getting the spring extension tucked behind something but for the life of me can't figure it out. I know my Band of Brothers and Sister have done this before. What am I doing wrong?

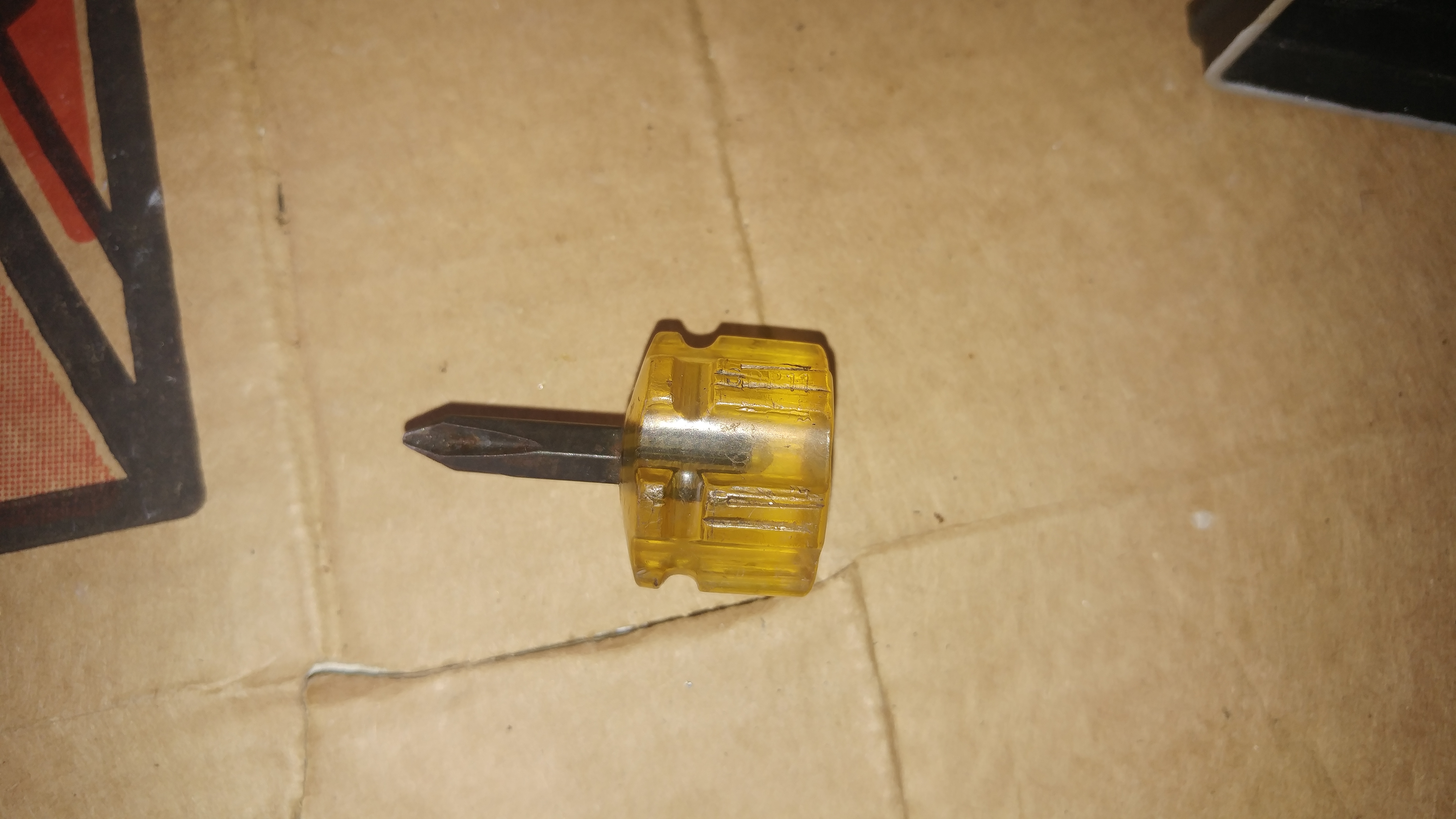

PS - I knew this little stubby screwdriver would come in handy for something someday!
PS - I knew this little stubby screwdriver would come in handy for something someday!
The following users liked this post:
ScanMan (03-23-2023)
#2
#4
![Default](/forum/images/icons/icon1.gif)
I gotta believe that if my ignition switch was as crapped up as mine was, that there may be a lot of XJ6's out there with electrical gremlins that may be attributed to the ignition switch. I was getting low voltage readings all over the place. Hopefully when I get this back together, that will be a thing of the past.
#6
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,916
Received 10,975 Likes
on
7,210 Posts
![Default](/forum/images/icons/icon1.gif)
There are! Faulty ignition switches have been cropping fairly often up for the last 10-12 years or so, maybe longer.
Cheers
DD
The following users liked this post:
ScanMan (03-23-2023)
#7
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
![Default](/forum/images/icons/icon1.gif)
Ditto!!!
All manner of electrical oddities went away when I replaced mine.
Kudos to those that can fix them in lieu of replacing them.
Grant described working in a bag. Too late for me. Little stuff just vanished when I opened mine,
A look at the S57 schematic shows how mny functions go through the switch.
That white wire travels extensively.
Carl
All manner of electrical oddities went away when I replaced mine.
Kudos to those that can fix them in lieu of replacing them.
Grant described working in a bag. Too late for me. Little stuff just vanished when I opened mine,
A look at the S57 schematic shows how mny functions go through the switch.
That white wire travels extensively.
Carl
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)
As it turns out, my switch went back together rather well and did indeed spring back from the start position. So... there is no trick to putting the switch back together, except for the little ball and spring lining up. Mark positions of all items before taking them apart will ensure going back together the same. Take pics. Lubricate with dielectric grease lightly. Sliding contacts like that. Point to point contacts, not so much (like relays). Don't be afraid to take switches/relays/plugs and jacks, etc apart using great care obviously. LOTS of electrical gremlins can be alleviated by clean electrical contact. I used to be a Field Engineer for a big computer company back in the day. And I earned a reputation of a real sharp shooter in New England. And mostly what I did was travel to troubled computers (generation 2 with plug in circuit boards - 2 flip flops to a board - oh the old days) and pulled each and every card, cleaned the contacts and reseated them. Problem went away. I'm a Hero! Pretty basic. Same situation with our 40-50 year old cars.
#9
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
![Default](/forum/images/icons/icon1.gif)
So very true. but, I've not opened a desk top box in decades. At times I did OK. Others far from it,
But, the connect/disconnect system has worked in a lot of circuitry.
Many good parts have been tossed when new ones have been installed. Not the part, merely the connection.
But, in the case of my ignition switch. The NOs unit from David Boger is much tighter and smooth. the old one loose and notchy.....
I do have a can of odds and ends for Jaguar ignition switch. Why ?
I have no logical response.
Kudos for making the old one work...
Carl
