Default IRS overhaul

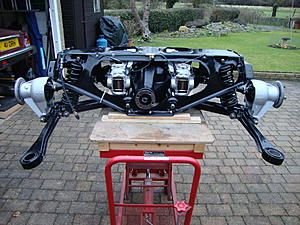

Dear friends, I have now completed the overhaul of the IRS and as suggested, I am posting some pictures before and after. In the beginning,
I decided to attend to a small oil leak in the final drive unit and fit new rear discs (rotors) and to see what else needed sorting out.

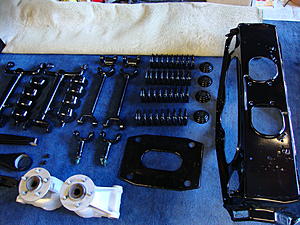

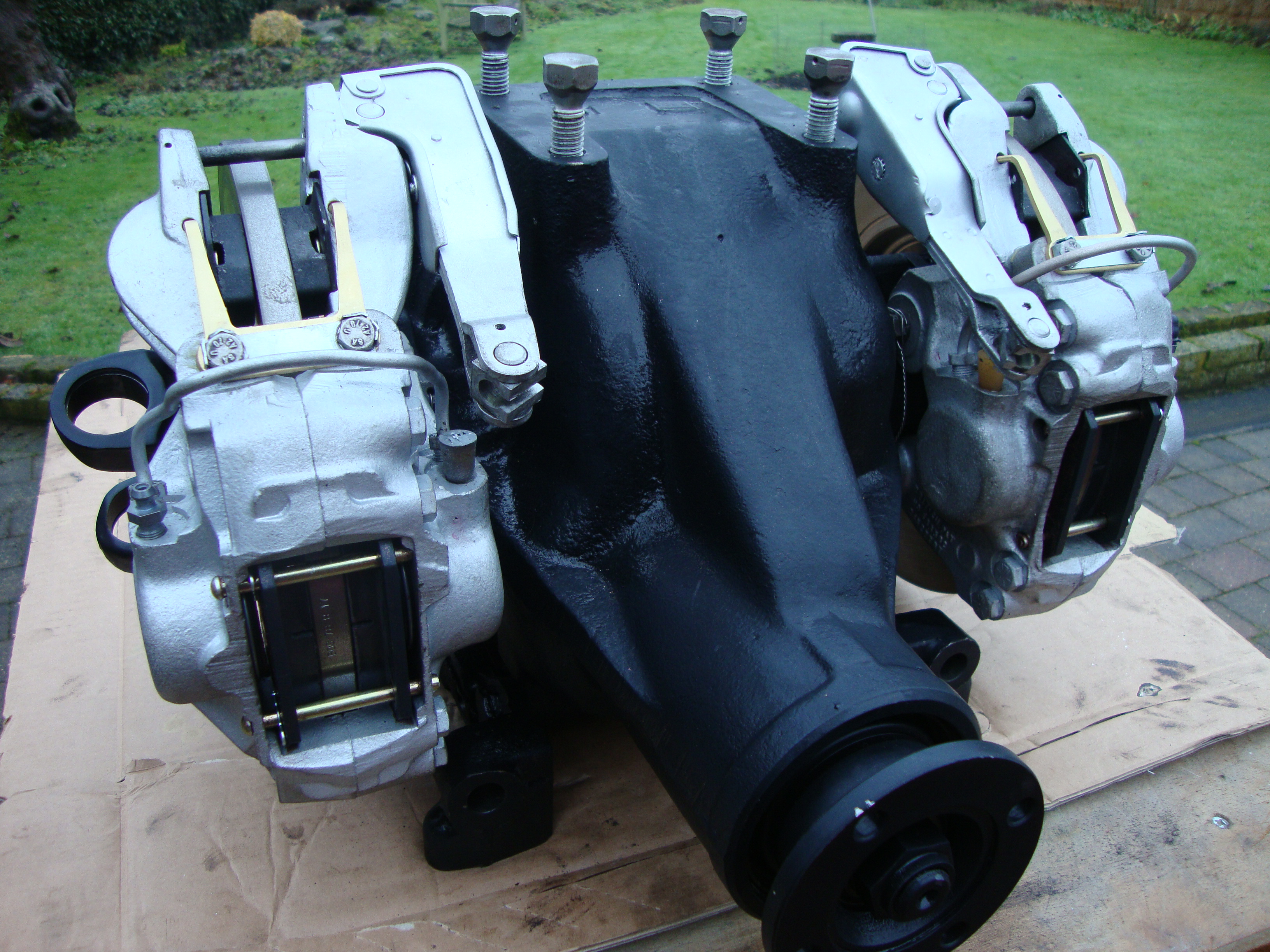

The final drive was sent to a specialist and he replaced the bearings and oil seals. I sent most of the parts away for shot blasting and then powder coating. I overhauled the handbrake calipers, rear calipers, fitted new discs,and pads. I painted the calipers and hubs with silver caliper spray paint. Fitted new Inner fulcrum bearings, new wheel bearings and outer fulcrum bearings & oil seals. New universal joints, new radius bushes. New bolts and nuts were used in many places. New bump stops are ready to fit.

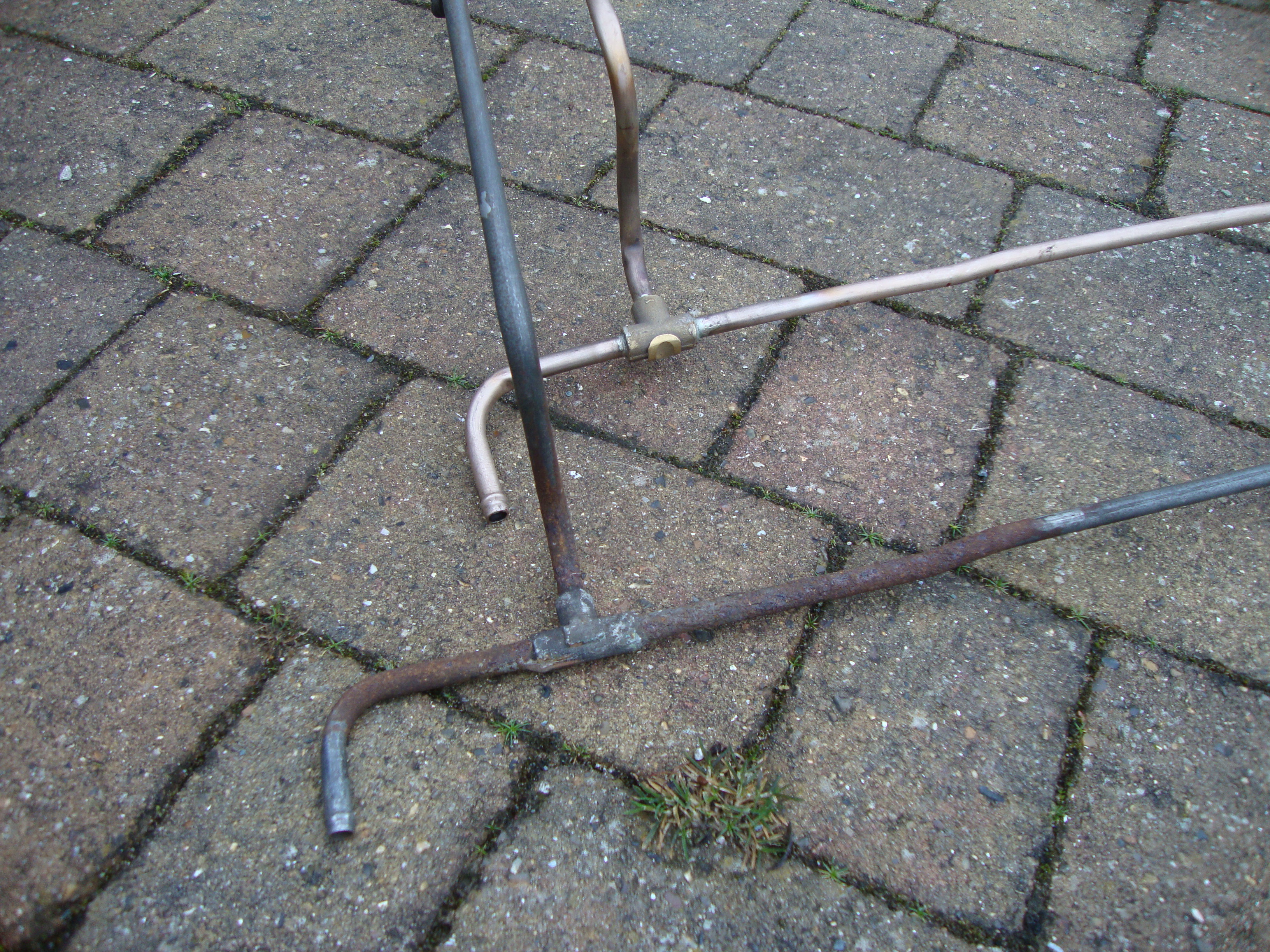

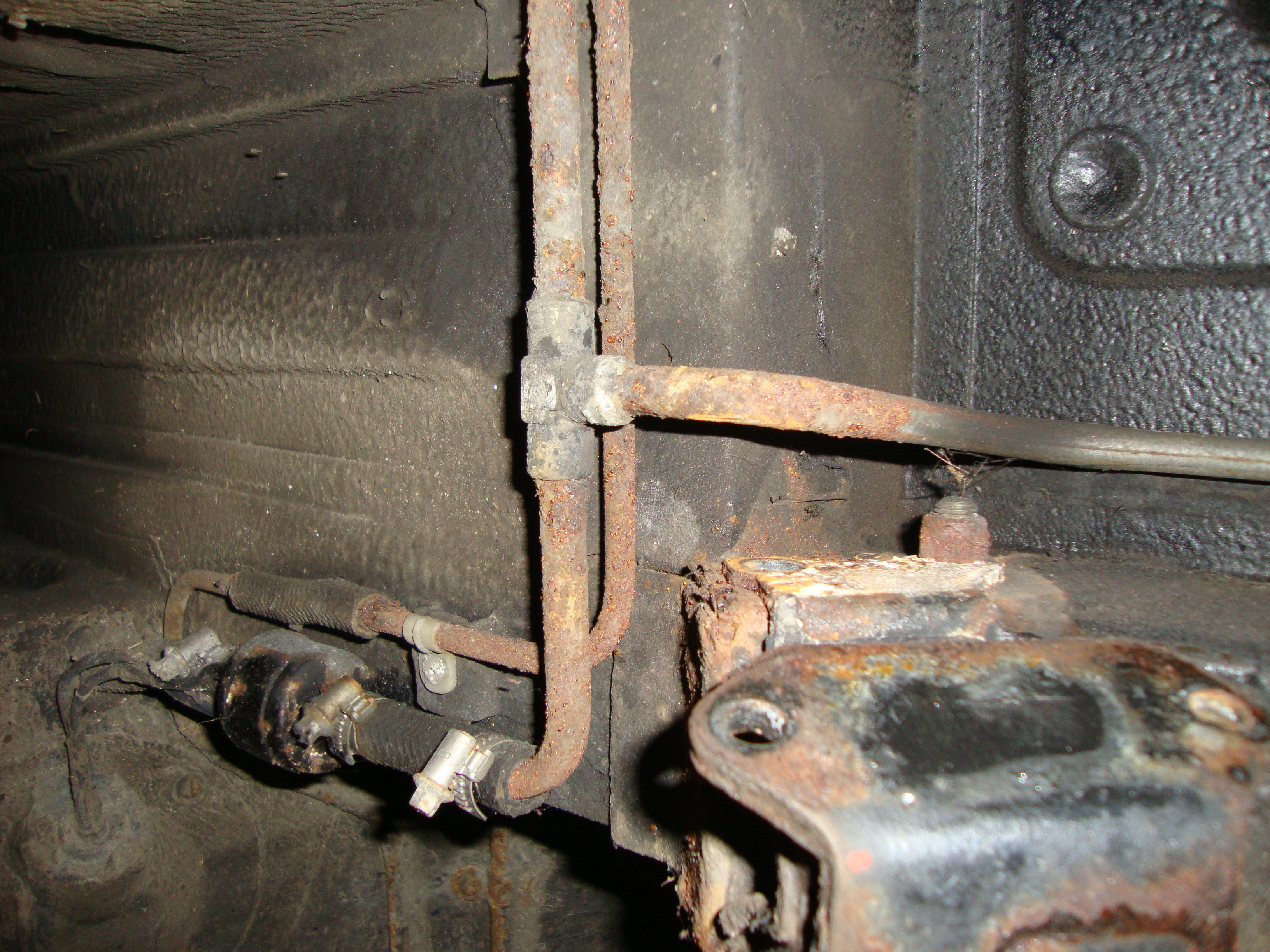

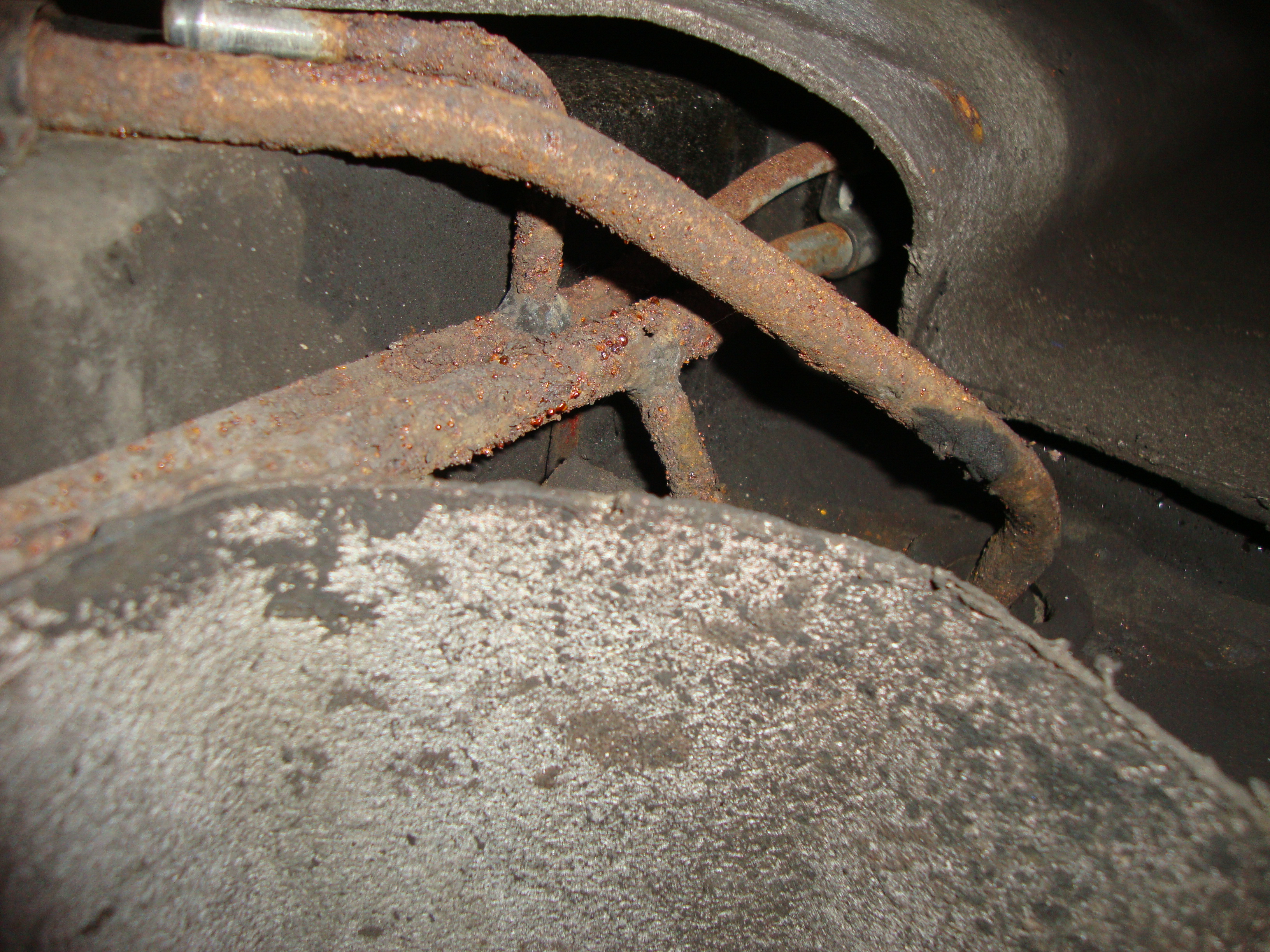

Whilst the cage was out I took the opportunity to replace the fuel pipes as they were quite corroded. I used 3/8 inch & 1/4 Kunifer for the vent, feed and return, silver soldering the Tee joint was quite easy in the end.
I am looking forward to the installation and road testing! I thank the members whose advice has helped me. Kind regards, Danny.

Attached Thumbnails IRS overhaul-001.jpg   IRS overhaul-010.jpg   IRS overhaul-006.jpg   IRS overhaul-032.jpg   IRS overhaul-053.jpg

IRS overhaul-075.jpg   IRS overhaul-076.jpg   IRS overhaul-077.jpg   IRS overhaul-080.jpg   IRS overhaul-081.jpg

IRS overhaul-083.jpg   IRS overhaul-084.jpg   IRS overhaul-059.jpg   IRS overhaul-061.jpg

Last edited by DannyRobertHoward; 02-18-2018 at 07:32 PM.
The following 6 users liked this post by DannyRobertHoward:
andys-GR (02-18-2018), Daf11e (02-18-2018), Jag7651 (02-18-2018), LnrB (02-18-2018), Roger Mabry (02-18-2018), someguywithajag (08-31-2024) and 1 others liked this post. (Show less...)
  #2
Old 02-18-2018 | 07:07 PM
Doug's Avatar
Veteran Member
Joined: Mar 2008
Posts: 24,952
Likes: 11,005
From: Pacific Northwest USA
Default

Nice work !

Cheers
DD

The following users liked this post:
DannyRobertHoward (02-19-2018)
  #3
Old 02-18-2018 | 08:02 PM
pjprofili's Avatar
Senior Member
Joined: Nov 2016
Posts: 157
Likes: 30
From: Georgia
Default

That looks awesome! Hope you can keep it that clean!

Mine is out right now as it happens - but a single UJ is (fortunately) all that I found to be worn amongst the various bearings (seal had broken) - so as soon as I get my rebuilt calipers and diff plus the new rotors and seals I should hopefully be good to go.
