pickup module signals XJ12 Ser III '79
#1
04-01-2018 | 01:14 PM
Thread Starter
|
Senior Member
Joined: Aug 2014
Posts: 153
Likes: 6
From: luxemb
pickup module signals XJ12 Ser III '79

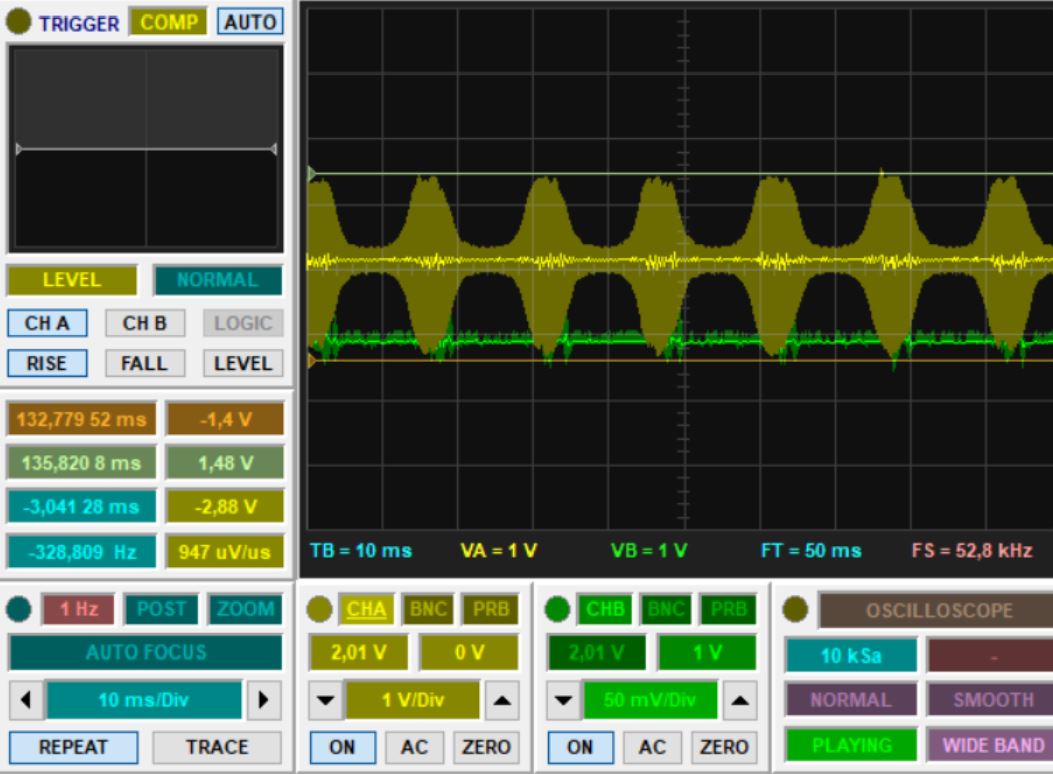

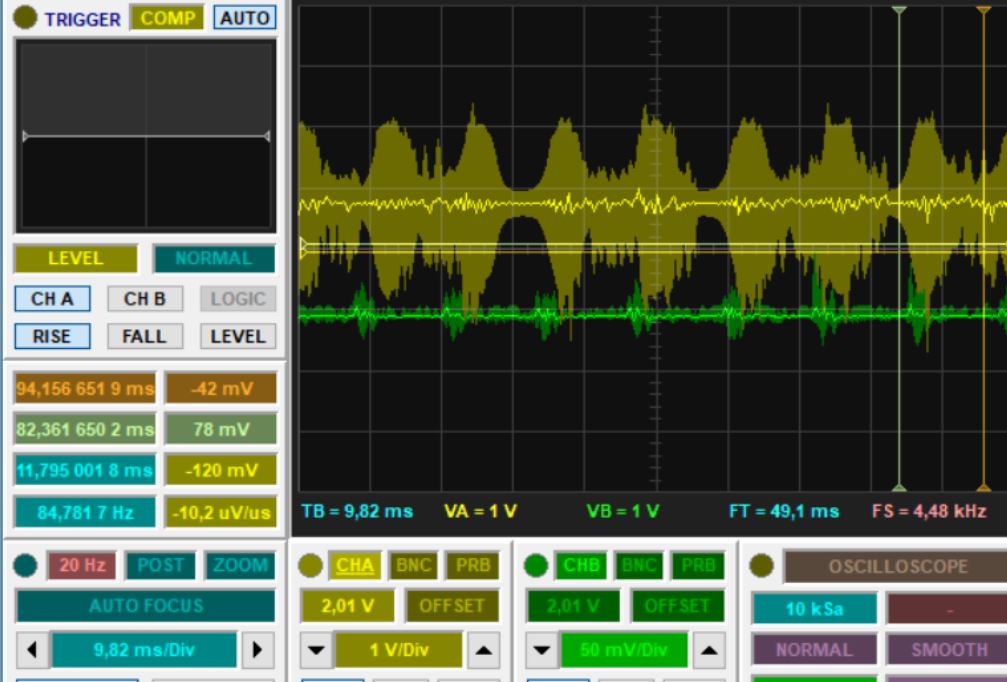

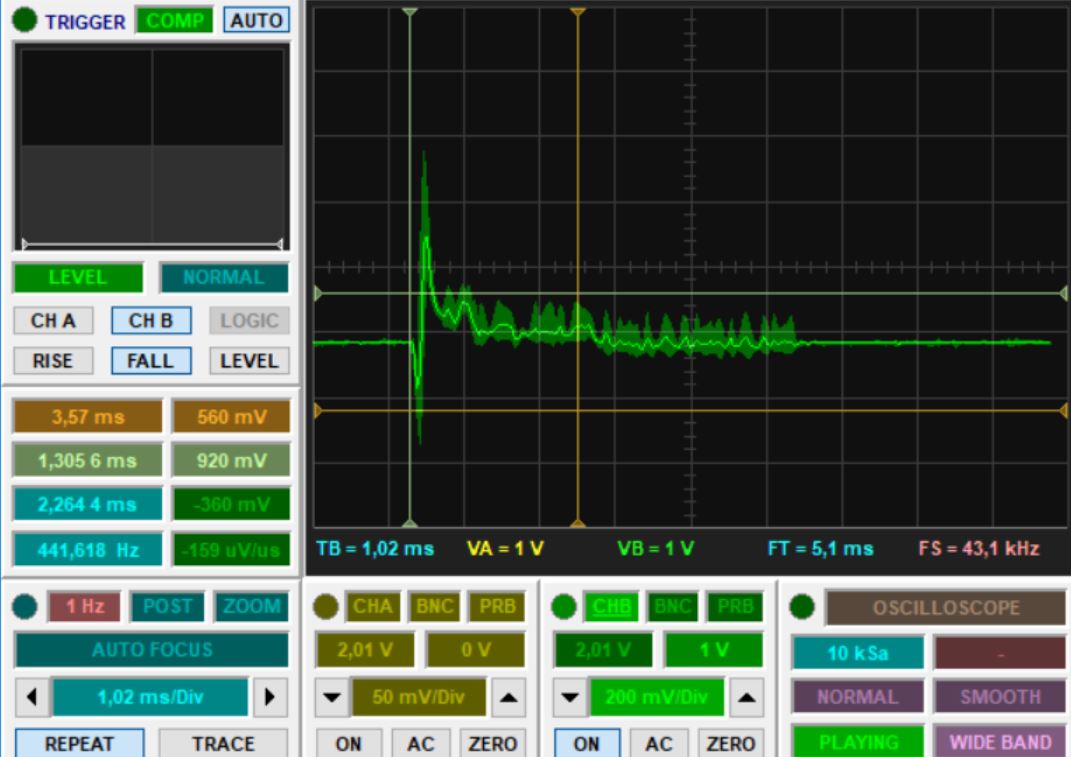

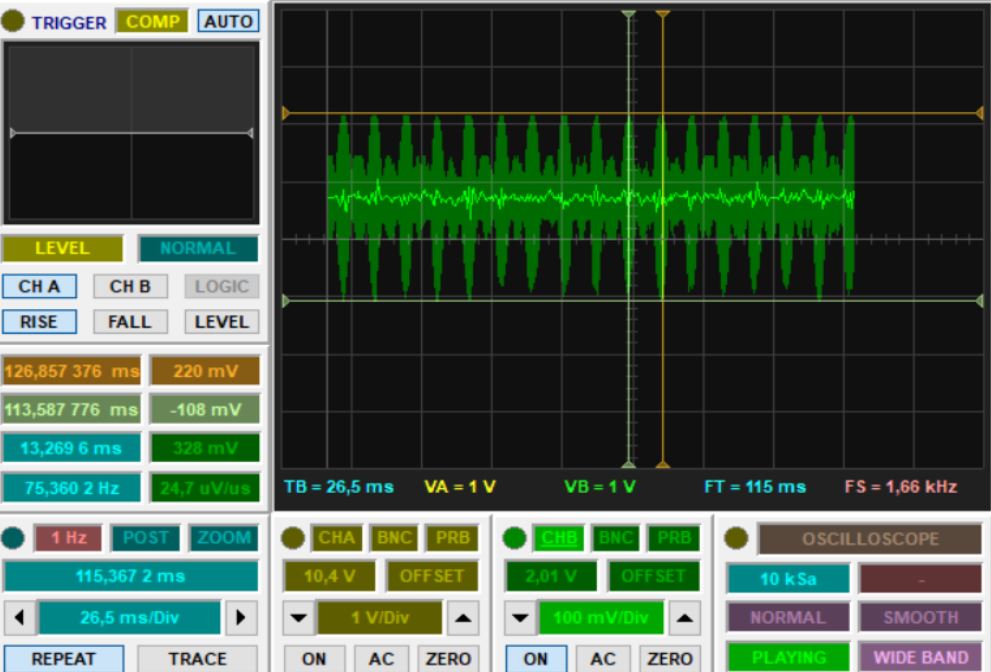

Hello, When becoming hot the car has more and more misfires and finally stalls. When I checked the pickup signals from/to the AB3 ignition amplifier from Lucas, with my scope I saw that signals are not always pure and often too small (<2.5V) on the red wire. Also on the primary of the coil I see misformations. They seem related.
I guess the misfires are caused by the signal being to small or impure.
Anyone has experience with those signals? They are new to me.
All voltages are to be multiplied by 10.
I guess the misfires are caused by the signal being to small or impure.
Anyone has experience with those signals? They are new to me.
All voltages are to be multiplied by 10.
