Removing XJ6 rear suspension.
#1
![Default](/forum/images/icons/icon1.gif)
Let me begin by saying I have done this job before - 27 years ago. But the car has been off road for 16 years and the rear brakes are not working. Last time I removed the suspension I had an article (now lost) in a club magazine to guide me. In it were directions on exactly how high to raise the rear of the car for the suspension to clear. So I am after this measurement again. Does anybody know this? Otherwise I will have to guess - I am making stands to sit the rear of the car on as well so the right height will be real helpful.
thanks
John
thanks
John
#2
Join Date: Mar 2014
Location: Tehama County, California, USA
Posts: 25,581
Received 9,384 Likes
on
5,442 Posts
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,888
Received 10,944 Likes
on
7,190 Posts
![Default](/forum/images/icons/icon1.gif)
I don't have the measurement but it shouldn't be that hard to figure out.
Assuming the cage will be slid out from the side.....
Measure how tall the cage is. Eyeball the lowest point on the car that the cage is likely to conflict with. That point must be higher then the cage plus a few inches more to allow for your floor jack or whatever you are using to lover the cage.
It's been a few years but as I recall the car doesn't have to be all that high if you slide the assembly out from the side. It needs to be quite a bit higher if you want to slide it out from the rear
Cheers
DD
Assuming the cage will be slid out from the side.....
Measure how tall the cage is. Eyeball the lowest point on the car that the cage is likely to conflict with. That point must be higher then the cage plus a few inches more to allow for your floor jack or whatever you are using to lover the cage.
It's been a few years but as I recall the car doesn't have to be all that high if you slide the assembly out from the side. It needs to be quite a bit higher if you want to slide it out from the rear
Cheers
DD
#4
![Default](/forum/images/icons/icon1.gif)
But be very sure it is properly blocked in the front and under the sides.... hardest part is either cutting or freeing the exhaust pipes that goes through the IRS.
Be sure to remove the rear brake line... then replace it when done as it will be hard/soft but worn out...
I used a floor jack with a piece of plywood under the whole IRS.. it was easy to move around.

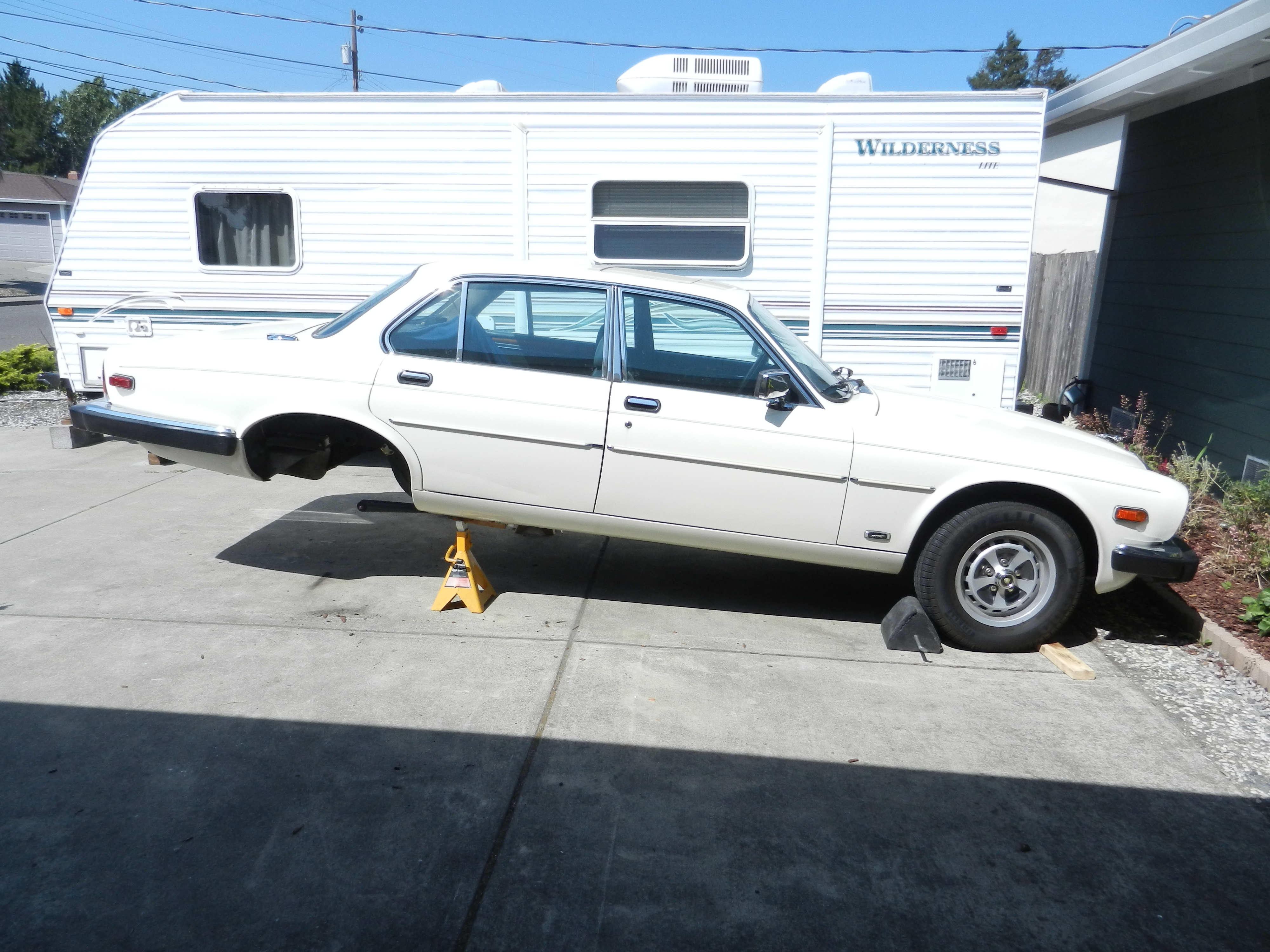

Board used is show in photo #2 foreground.
Be sure to remove the rear brake line... then replace it when done as it will be hard/soft but worn out...
I used a floor jack with a piece of plywood under the whole IRS.. it was easy to move around.
Board used is show in photo #2 foreground.
Last edited by Roger Mabry; 01-08-2017 at 04:09 PM.
#5
#6
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
![Default](/forum/images/icons/icon1.gif)
I've never done it on these critters, but I have on something similar. At least twice.
An engine and trans axle in a 63 and alter in a 65 Corvair.
Tools:
A bottle jack, a trolley jack, chunks of pipe as rollers and a plank about 4' x 12" x 2".
Oh, blocks of wood as chocks for the front wheels. And "good" or better jack stands.
Use one's creative imagination from here down and back up.
Carl
An engine and trans axle in a 63 and alter in a 65 Corvair.
Tools:
A bottle jack, a trolley jack, chunks of pipe as rollers and a plank about 4' x 12" x 2".
Oh, blocks of wood as chocks for the front wheels. And "good" or better jack stands.
Use one's creative imagination from here down and back up.
Carl
#7
![Default](/forum/images/icons/icon1.gif)
Mekon,
I'm always full of advice. Go buy the harbor freight motorcycle lift. Use a 20% off coupon. ~$300. In and out with no hassle. This suspension system rolls off the floor jack. Mine did. While it's out you have a work table.
I'll post a picture later, on mobile at the moment.
I'm always full of advice. Go buy the harbor freight motorcycle lift. Use a 20% off coupon. ~$300. In and out with no hassle. This suspension system rolls off the floor jack. Mine did. While it's out you have a work table.
I'll post a picture later, on mobile at the moment.
Removing the wheels will obviously help the clearance, i raised the car the way other have mentioned which is to measure the height of the cage without wheels and then add a little extra to allow for the lowering device. I placed the jack stands if not under but close to the radius arm mounting points to the body and it stayed put just fine for the week or 2 the IRS was out.
Good luck
Russell
Trending Topics
#9
![Default](/forum/images/icons/icon1.gif)
Just so our younger members know....
Dan Dare and the Mekon
The Eagle was a wonderful comic for boys !
Dan Dare and the Mekon
The Eagle was a wonderful comic for boys !
The following 2 users liked this post by Fraser Mitchell:
LnrB (01-10-2017),
someguywithajag (06-21-2018)
#10
![Default](/forum/images/icons/icon1.gif)
Thanks all who replied. Rfarmery's picture gives me a good guide to how high to raise the rear, and I will try the measurement method as well. Good to know I can pull it out the side, I have a better jack this time and I still have the wooden puck I made up years ago for the last removal. It fits the tie plate perfectly so the suspension stays on the jack.
#11
![Default](/forum/images/icons/icon1.gif)
Just so our younger members know....
Dan Dare and the Mekon
The Eagle was a wonderful comic for boys !
Dan Dare and the Mekon
The Eagle was a wonderful comic for boys !
#12
![Default](/forum/images/icons/icon1.gif)
I've recently pulled mine and the only comment I'll add is that you need to completely remove the Radius Arms or be very careful when lowering. My Radius Arms where hanging down and decided to dig in to my smooth concrete floor and almost force the car to roll off it's axle stands!
I guess you could probably tie them to the subframe to keep them out of the way?
I guess you could probably tie them to the subframe to keep them out of the way?
The following users liked this post:
littlelic69 (01-17-2017)
#13
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,888
Received 10,944 Likes
on
7,190 Posts
#14
#15
![Default](/forum/images/icons/icon1.gif)

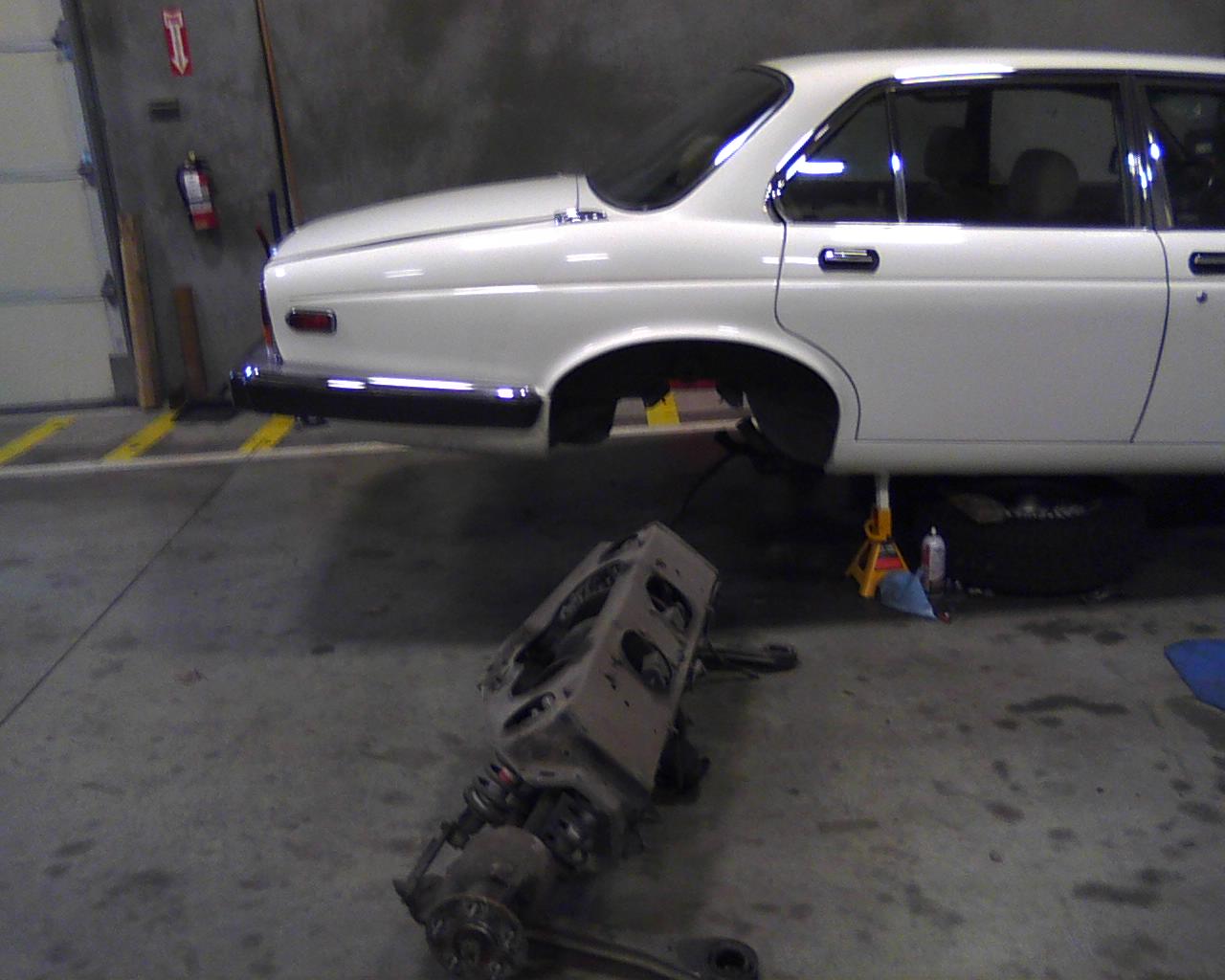

Raised the rear to 36" and pulled the suspension out today.
I had difficulty separating the central mufflers from the mid pipe so pulled the lot out together. Came out easily via the left hand rear quarter, then I separated the exhaust.
Brake caliper pistons seized which is why I am doing the job
I had difficulty separating the central mufflers from the mid pipe so pulled the lot out together. Came out easily via the left hand rear quarter, then I separated the exhaust.
Brake caliper pistons seized which is why I am doing the job
Last edited by The Mekon; 01-31-2017 at 04:29 AM.
#16
Join Date: Mar 2014
Location: Tehama County, California, USA
Posts: 25,581
Received 9,384 Likes
on
5,442 Posts
#17
![Default](/forum/images/icons/icon1.gif)
Hi!
I am dropping rear suspension to replace rotors and calipers.
I have removed the center bolt fastening the forward radius arm bushing, but it doesn't seem to want to seperate from body.
My feeling is the rubber is bonded to the surface and is going to just tear.
Any help, ideas?
Is it normal?
Thanx!
I am dropping rear suspension to replace rotors and calipers.
I have removed the center bolt fastening the forward radius arm bushing, but it doesn't seem to want to seperate from body.
My feeling is the rubber is bonded to the surface and is going to just tear.
Any help, ideas?
Is it normal?
Thanx!
#18
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,888
Received 10,944 Likes
on
7,190 Posts
#19
Join Date: Mar 2014
Location: Tehama County, California, USA
Posts: 25,581
Received 9,384 Likes
on
5,442 Posts
#20
![Default](/forum/images/icons/icon1.gif)
Are u guyz putting it on arm, or the cup area?
I have a long crowbar with an end like a screwdriver.
Very stubborn, just seems like the rubber will seperate, then I will still have to get cup off body.
I just want a good approach before I go at it.
Everything else came apart easy, I thought I was there! Lol
Will it drop low enough to replace rotors if arms are still attached?
Thanx!
I have a long crowbar with an end like a screwdriver.
Very stubborn, just seems like the rubber will seperate, then I will still have to get cup off body.
I just want a good approach before I go at it.
Everything else came apart easy, I thought I was there! Lol
Will it drop low enough to replace rotors if arms are still attached?
Thanx!
