I wouldn't disassemble and/or cut panels off of a good body. Keep the body intact and install the V12 engine and ancillaries.
In essence you'll need the V12 engine and transmission, obviously, and the matching engine and transmission mounts. All engine bay wiring, all fuel injection wiring from the boot forward, the ECU, the V12 radiator and oil cooler, throttle, shift, and cruise control cables, V12 gearshift assembly, V12 tachometer, V12 exhaust system. That's jut off the top of my head.
How easy?
As engine swaps go it isn't too bad. But there are dozens of time consuming details to work out. Actually installing the engine and transmission is the least problematic aspect.
This sort of thing is practical only if DIY labor is used. Paying a repair shop would out the costs way too high....far exceeding the value of the car, I suspect.
Cheers
DD
#63
#64
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,877
Received 10,930 Likes
on
7,181 Posts
Cheers
DD
#65
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,877
Received 10,930 Likes
on
7,181 Posts
Update:
Haven't had much time in the last month or so
Exhaust installed...using the old system from the donor car for the moment but it's in poor shape. After the car is complete, running, and sorted I'll install new.
Working now on engine-forward stuff. AC compressor, radiator, oil cooler, a/c condenser, alternator, p/s hoses, cooler hoses, etc. Shortly after this pic was taken I installed the new belts---so easy with the hood off . Fans, shrouds, and hoses are next
Installed new engine oil pan gasket. It was so easy and inexpensive that I couldn't resist.
Trans cooler hoses (second pic) were 'rebuilt' locally for about $20-25 each, as were p/s hoses. I did all the fuel hoses myself. They can be seen installed, barely, in the upper left corner of the first picture
Next is wiring which shouldn't be very hard but there are some circuits I won't be using (for a couple superfluous fuel injector functions) so I need to remove them from the looms.
After that is just continued reassembly of all the 'bits'.
Cheers
DD
Haven't had much time in the last month or so
Exhaust installed...using the old system from the donor car for the moment but it's in poor shape. After the car is complete, running, and sorted I'll install new.
Working now on engine-forward stuff. AC compressor, radiator, oil cooler, a/c condenser, alternator, p/s hoses, cooler hoses, etc. Shortly after this pic was taken I installed the new belts---so easy with the hood off . Fans, shrouds, and hoses are next
Installed new engine oil pan gasket. It was so easy and inexpensive that I couldn't resist.
Trans cooler hoses (second pic) were 'rebuilt' locally for about $20-25 each, as were p/s hoses. I did all the fuel hoses myself. They can be seen installed, barely, in the upper left corner of the first picture
Next is wiring which shouldn't be very hard but there are some circuits I won't be using (for a couple superfluous fuel injector functions) so I need to remove them from the looms.
After that is just continued reassembly of all the 'bits'.
Cheers
DD
#66
#67
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,877
Received 10,930 Likes
on
7,181 Posts
Thanks, but that's just the (cell phone) camera being a bit forgiving
I haven't detailed this engine or engine bay to a high level by any means. Just enough to avoid having to hang my head in shame when I lift the hood.
Cheers
DD
#68
#69
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
Doug:
Nice work, but what else would we expect!
Esconced in new digs? Now, time to do "fun" things! I have the impression that Oregon is more of a "progressive" state than Washington. Will that interfere with your projects? Can't trust you to pump your own gas there. Must use a "qualified, well trained technician" !!!
My ancient cell will take pictures. But, that is where it stops! How to email them or down load to my computer escapes me. As I have a basic service on it, it may be impossible.
No matter my even older digital cameras can do it nicely. Each differently, the old Olympus predates USB!! The a bit younger Canon does it sorta. But, on this machine, attachment is iffy. Non existant on this forum!!!
The other Dell on XP can handle the Olympus best...
I keep the Olympus on medium resolution to match
J-L's picture size limitations.
My daughter gave me a much newer, but still not the latest.
she thinks I can do things on it sans activation. How, beats the h...
outta me.
Played and worked outside a bit. Getting odd solar lights here and there fired up.
Fired up the weed whacker and mowed some back "pasture". If only I had a baler...
Whacked down some volunteer plumb shoots, the hard way, lopers powered by me!!!
My big Bay tree up front has two dead trunks !!! Looking forward to more lumber jack work....?!?!
Carl
Nice work, but what else would we expect!
Esconced in new digs? Now, time to do "fun" things! I have the impression that Oregon is more of a "progressive" state than Washington. Will that interfere with your projects? Can't trust you to pump your own gas there. Must use a "qualified, well trained technician" !!!
My ancient cell will take pictures. But, that is where it stops! How to email them or down load to my computer escapes me. As I have a basic service on it, it may be impossible.
No matter my even older digital cameras can do it nicely. Each differently, the old Olympus predates USB!! The a bit younger Canon does it sorta. But, on this machine, attachment is iffy. Non existant on this forum!!!
The other Dell on XP can handle the Olympus best...
I keep the Olympus on medium resolution to match
J-L's picture size limitations.
My daughter gave me a much newer, but still not the latest.
she thinks I can do things on it sans activation. How, beats the h...
outta me.
Played and worked outside a bit. Getting odd solar lights here and there fired up.
Fired up the weed whacker and mowed some back "pasture". If only I had a baler...
Whacked down some volunteer plumb shoots, the hard way, lopers powered by me!!!
My big Bay tree up front has two dead trunks !!! Looking forward to more lumber jack work....?!?!
Carl
#70
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,877
Received 10,930 Likes
on
7,181 Posts
Thanks
Esconced in new digs?
The living areas are pretty well all sorted out, boxes unpacked, etc
The PO converted half the garage to a bedroom so I'm converting it back to original configuration and planning on an expansion....so there's a fair bit of 'unrest' and chaos at that end of the house!
Now, time to do "fun" things! I have the impression that Oregon is more of a "progressive" state than Washington. Will that interfere with your projects? Can't trust you to pump your own gas there. Must use a "qualified, well trained technician" !!!
I'm smack dab in the middle of Salem so I'm in with the progressive crowd, mostly.
Gasoline:
It takes some getting used to after decades of pumping it myself.
I don't think it was ever a matter of qualifications. More a matter of job preservation, and I'm all for that. If we went back to full service gas stations everywhere we'd have a lot fewer unemployed on food stamps....and what would it cost? A dime a gallon maybe? But, anyhow, this is not the place for that discussion
My ancient cell will take pictures. But, that is where it stops! How to email them or down load to my computer escapes me. As I have a basic service on it, it may be impossible.
I have decent camera and I'm always *intending* to take more (and better) pics....but I get caught up in the task at hand and simply forget. However, the cell phone is useful for a quick snap-shot when my brain cells align properly enough for me to remember
Cheers
DD
#71
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,877
Received 10,930 Likes
on
7,181 Posts
Incremental steps.....
Sorting out some wiring bits while there's still room in the engine bay to do so
- Oxygen sensors hooked up. This means holes cut into each wall of the engine bay, as the wiring from each sensor is actually in the wheelwells and is routed into the engine bay
- Heavy ground cable installed from the main ground point to the engine

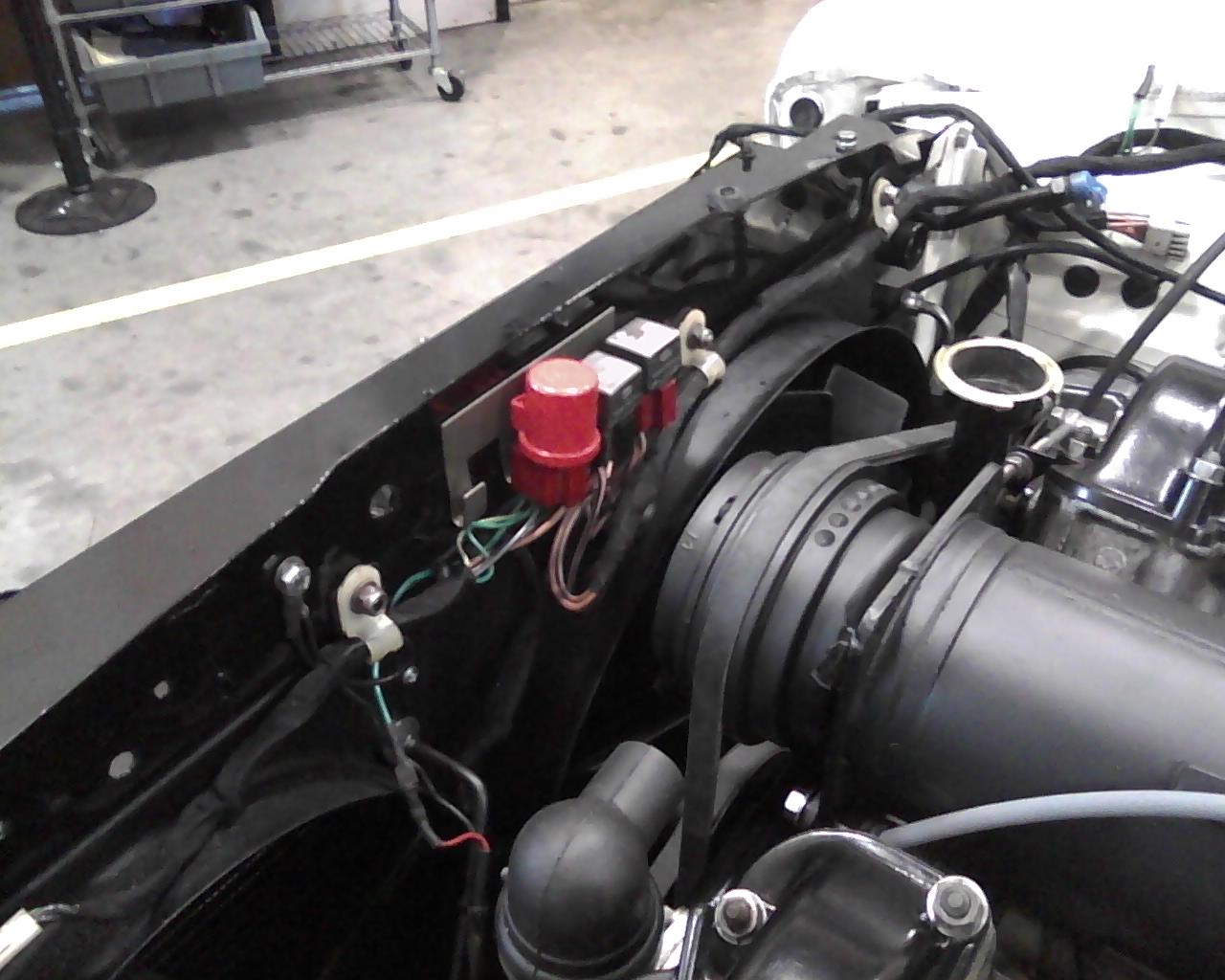

- Electric fan wired-up. Used existing XJ6 circuit as-is, except for shortening some wires. There is no tie-in with the a/c compressor as typically found on this vintage V12. That can be added later if I feel it is needed
- Eliminated two 'idle over-ride' relays and associated tangles of wire.
Also....

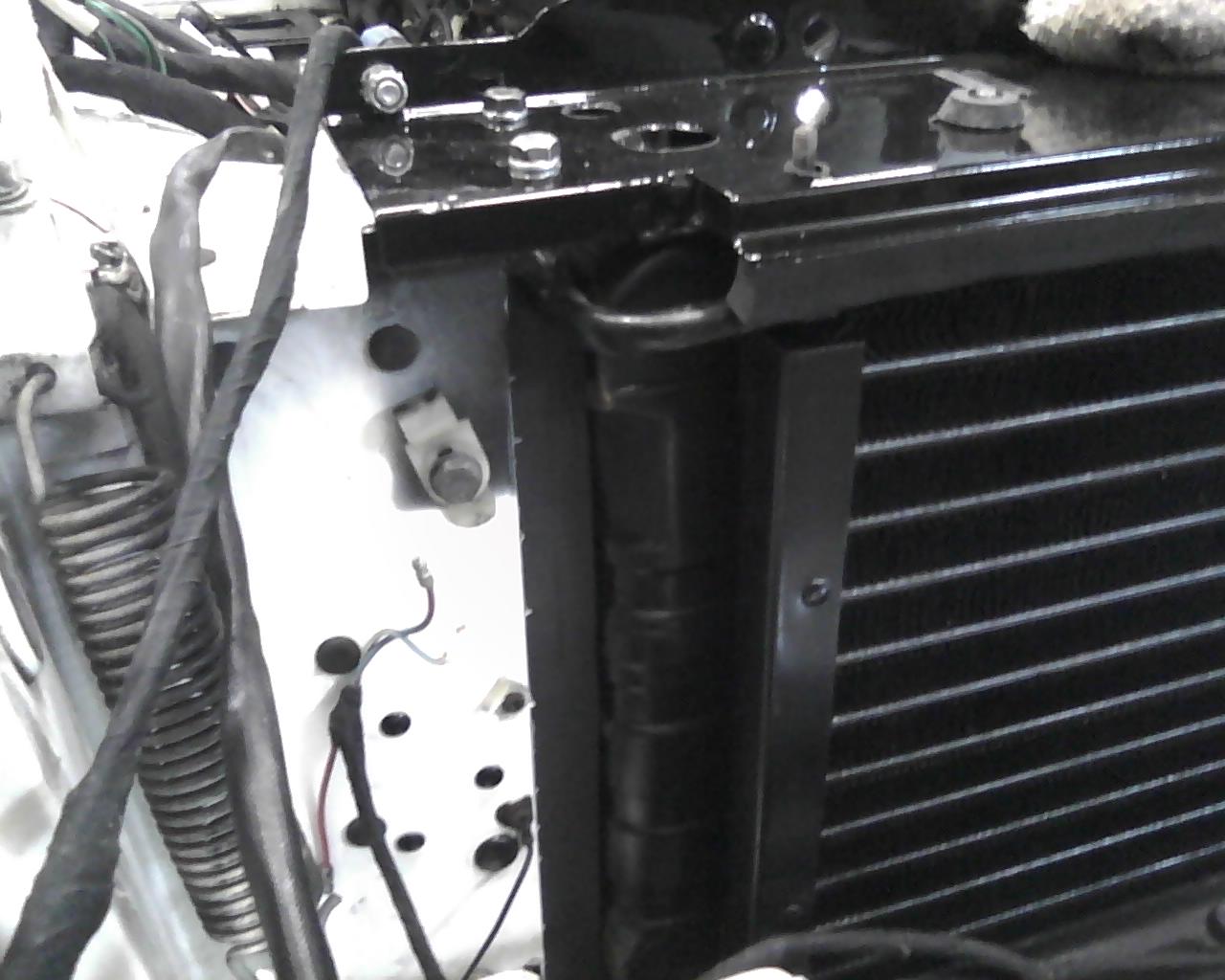

- Added the foam to close out the gaps between the radiator and the radiator opening. In this case I had some leftover Corvette radiator foam pieces (1969-72 427/454 applications) which fit nicely
