Over the last few months I have been tidying up my series 1 xj6. I'm going to be converting it to electric. They're beautiful cars and am proud to have one after fawning over them for years. It came with a 350 chev' but when that died i resolved that it should become electric, i'd wanted to build an electric car for ages, and was weighing up other nice cars like an Alpha Romeo or Audi but this is the opportunity that landed in my lap.
I had a bunch of plans for the build but when i found a wrecked Tesla for cheap i threw them out the window and bought the motor and batteries from it. This would make my car 420kw (560hp) and capable of around 300km range. It should be at least 2-300kg lighter than the Tesla too.

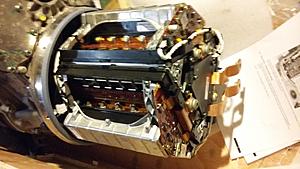

You'll find a picture of the motor and inverter below. I'm going to redesign the rear subframe to house it. The original battery is quite large and 400kg so i'm breaking it into four smaller pieces, three in the engine bay and one in the boot (trunk). (The first photo is mine, the others are stock photos, theyre better than what i have).
These plus a range of other electric brakes, air conditioners and power steering pumps i hope to drive that car exactly like it used to. I also want it to look as original as possible, original gauges, buttons everything. Being single speed i wont need the gear shifter, i really like it though and may devise a means to use it but that's a long way off. I cant help but feel some humour in the fact that i'm turning a car notorious for dodgy electrics, to be full electric, it may never actually go anywhere because its always broke!
I work full time and have two young kids, so its been a slow process so far, hopefully i can be done by next christmas. I'll post updates slowly and answer any questions.
I had a bunch of plans for the build but when i found a wrecked Tesla for cheap i threw them out the window and bought the motor and batteries from it. This would make my car 420kw (560hp) and capable of around 300km range. It should be at least 2-300kg lighter than the Tesla too.
You'll find a picture of the motor and inverter below. I'm going to redesign the rear subframe to house it. The original battery is quite large and 400kg so i'm breaking it into four smaller pieces, three in the engine bay and one in the boot (trunk). (The first photo is mine, the others are stock photos, theyre better than what i have).
These plus a range of other electric brakes, air conditioners and power steering pumps i hope to drive that car exactly like it used to. I also want it to look as original as possible, original gauges, buttons everything. Being single speed i wont need the gear shifter, i really like it though and may devise a means to use it but that's a long way off. I cant help but feel some humour in the fact that i'm turning a car notorious for dodgy electrics, to be full electric, it may never actually go anywhere because its always broke!
I work full time and have two young kids, so its been a slow process so far, hopefully i can be done by next christmas. I'll post updates slowly and answer any questions.
Last edited by itchyback; 09-04-2017 at 09:37 PM.
