1976 wiper motor help required
#1
1976 wiper motor help required
I have a 76, and for quite some time, my wiper motor has not been working properly since it had been worked on last. My car had been restored and this was one thing that was mess around with.

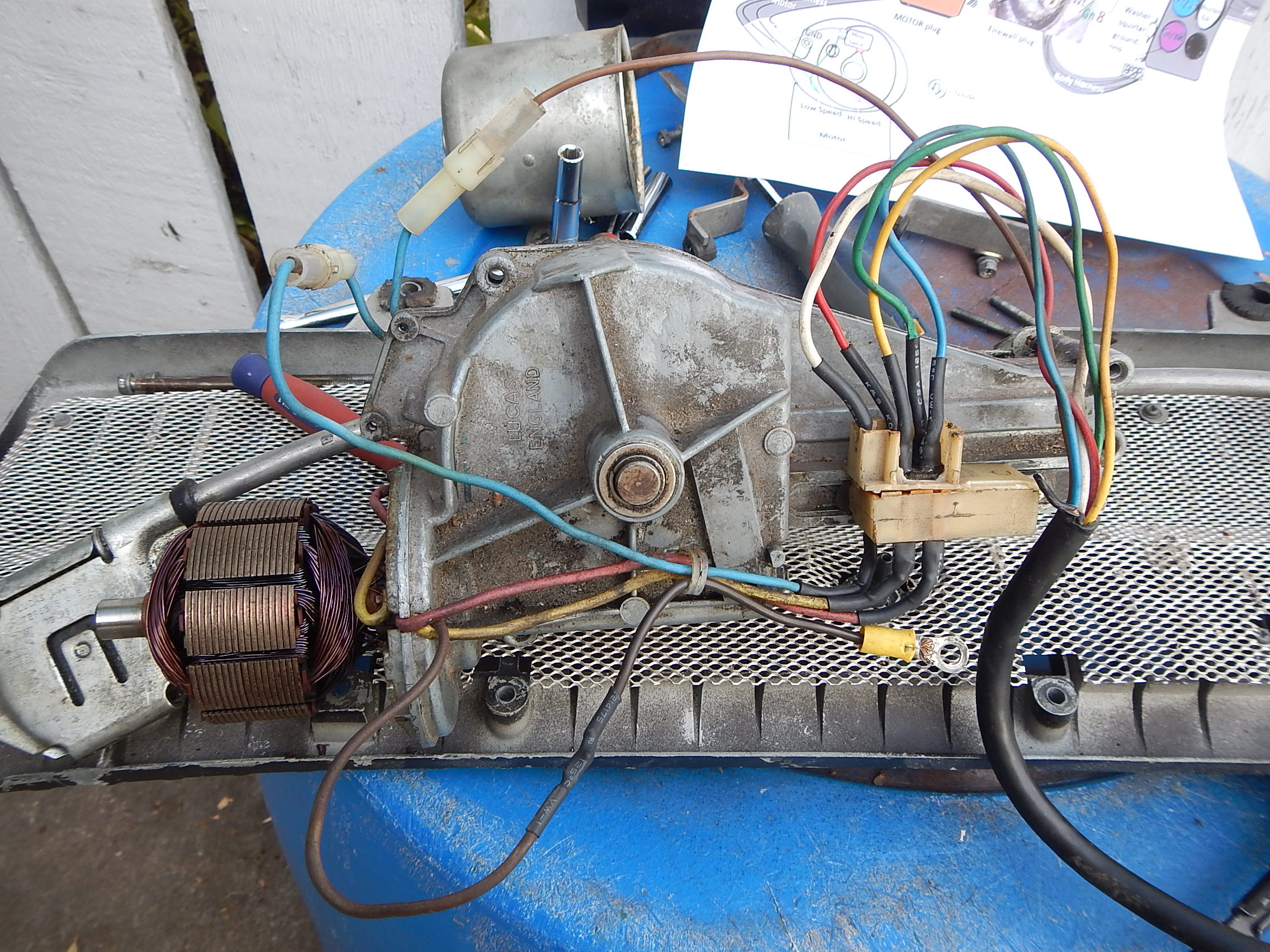

Does any one have a wire schematic for such a car? I looked everywhere for one. Here's a picture... is everything in the right places concerning the wires in the connector? I noticed a black wire also cut on the end of the harness... The two blue wires on the top left go into a toggle switch that is controlled within the gear encloser.
Thanks for your help!
Does any one have a wire schematic for such a car? I looked everywhere for one. Here's a picture... is everything in the right places concerning the wires in the connector? I noticed a black wire also cut on the end of the harness... The two blue wires on the top left go into a toggle switch that is controlled within the gear encloser.
Thanks for your help!
#3
Wiring Color Codes
N = Brown
B = Black
W = White
K = Pink
G = Green
R = Red
Y = Yellow
O = Orange
S = Slate (or Gray)
L = Light
U = Blue
P = Purple
When a wire has two or more color code letters the first letter indicates the main wire color. The subsequent letter(s) indicate the tracer color(s).
Examples;
LG = Light Green
OLG = Orange Wire / Light Green Tracer (stripe, spots etc)
Mark
N = Brown
B = Black
W = White
K = Pink
G = Green
R = Red
Y = Yellow
O = Orange
S = Slate (or Gray)
L = Light
U = Blue
P = Purple
When a wire has two or more color code letters the first letter indicates the main wire color. The subsequent letter(s) indicate the tracer color(s).
Examples;
LG = Light Green
OLG = Orange Wire / Light Green Tracer (stripe, spots etc)
Mark
