88 XJS vibration after trans service
#1
88 XJS vibration after trans service
After I changed the transmission fluid on my 88 xjs I started it up to check the fluid level and noticed a vibration at idle. It gets very strong when I increase the RPMs. It was running fine before I worked on it. It doesn't seem to be a misfire but feels like it's coming from under the seat.
Could the vibration be caused by not putting the trans mount back together properly? While I had it apart I put new rubber rings on the spring and also a new bushing as the old ones were shot. I reassembled it with the spacer inside the bushing and the bushing inside the spring. The only thing I can think of is I might have put the "special" washer on wrong. Does it go above or below the mounting plate? I installed it below.
Marvin
Could the vibration be caused by not putting the trans mount back together properly? While I had it apart I put new rubber rings on the spring and also a new bushing as the old ones were shot. I reassembled it with the spacer inside the bushing and the bushing inside the spring. The only thing I can think of is I might have put the "special" washer on wrong. Does it go above or below the mounting plate? I installed it below.
Marvin
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,866
Received 10,920 Likes
on
7,174 Posts
There is some info in this thread that might help
https://www.jaguarforums.com/forum/x...rumble-120121/
Cheers
DD
https://www.jaguarforums.com/forum/x...rumble-120121/
Cheers
DD
#3
Figured it out?
I think I might have figured out the problem. Since my original rubber bushing was disintegrated I didn't know exactly how to put it in. The diagrams on the internet are of no help either.
However, I was reading the Kirby bible and it briefly eludes to the bushing going through the mounting plate. Is this correct? If so then I goofed as I put the bushing on top of the mounting plate. I also don't have the special washer with the rounded edges that Kirby refers to. Exactly how/where does this washer go in?
Marvin
However, I was reading the Kirby bible and it briefly eludes to the bushing going through the mounting plate. Is this correct? If so then I goofed as I put the bushing on top of the mounting plate. I also don't have the special washer with the rounded edges that Kirby refers to. Exactly how/where does this washer go in?
Marvin
#4
OK,
That rubber? cotton reel looking bush, #3, presses thru the steel plate. Some silicon spray and strong fingers will get that sorted.
There is only 1 spring insulator #4, on the bottom.
The "special" washer (#28) is required. If you do not have it, locate a 1/2" "flat section" spring washer, that will be fine.

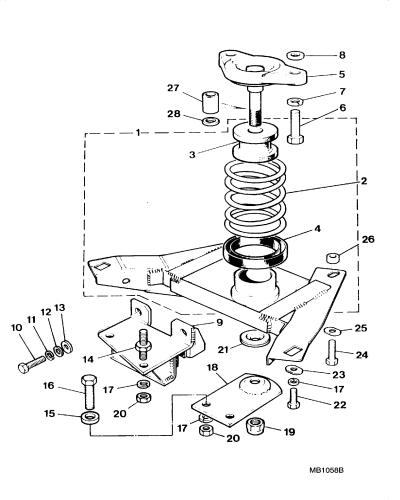

The diagram attached shows the special washer and sleeve INCORRECT. As in Item 27 & 28. Item 28 goes ON TOP of #27, so it is positioned midway in that bush #3 when all assembled. That special washer acts as a damper (friction) on the inside bore of the bush, and its as simple as that.
I agree that the drawings, including this parts drawing, are vague at best. It took me many attempts many years ago to sort this out, and the older sedan 6 cylinder assembly is worse.
That rubber? cotton reel looking bush, #3, presses thru the steel plate. Some silicon spray and strong fingers will get that sorted.
There is only 1 spring insulator #4, on the bottom.
The "special" washer (#28) is required. If you do not have it, locate a 1/2" "flat section" spring washer, that will be fine.
The diagram attached shows the special washer and sleeve INCORRECT. As in Item 27 & 28. Item 28 goes ON TOP of #27, so it is positioned midway in that bush #3 when all assembled. That special washer acts as a damper (friction) on the inside bore of the bush, and its as simple as that.
I agree that the drawings, including this parts drawing, are vague at best. It took me many attempts many years ago to sort this out, and the older sedan 6 cylinder assembly is worse.
#5
one more question
Thanks for the info. That really makes more sense. I didn't have any problem putting the the rubber bushing through the plate.
One more question. While I have it apart should I leave off the stupid bracket that bolts to the pan or should I just replace the studs with long bolts and spacers?
One more question. While I have it apart should I leave off the stupid bracket that bolts to the pan or should I just replace the studs with long bolts and spacers?
OK,
That rubber? cotton reel looking bush, #3, presses thru the steel plate. Some silicon spray and strong fingers will get that sorted.
There is only 1 spring insulator #4, on the bottom.
The "special" washer (#28) is required. If you do not have it, locate a 1/2" "flat section" spring washer, that will be fine.
The diagram attached shows the special washer and sleeve INCORRECT. As in Item 27 & 28. Item 28 goes ON TOP of #27, so it is positioned midway in that bush #3 when all assembled. That special washer acts as a damper (friction) on the inside bore of the bush, and its as simple as that.
I agree that the drawings, including this parts drawing, are vague at best. It took me many attempts many years ago to sort this out, and the older sedan 6 cylinder assembly is worse.
Attachment 89690
That rubber? cotton reel looking bush, #3, presses thru the steel plate. Some silicon spray and strong fingers will get that sorted.
There is only 1 spring insulator #4, on the bottom.
The "special" washer (#28) is required. If you do not have it, locate a 1/2" "flat section" spring washer, that will be fine.
The diagram attached shows the special washer and sleeve INCORRECT. As in Item 27 & 28. Item 28 goes ON TOP of #27, so it is positioned midway in that bush #3 when all assembled. That special washer acts as a damper (friction) on the inside bore of the bush, and its as simple as that.
I agree that the drawings, including this parts drawing, are vague at best. It took me many attempts many years ago to sort this out, and the older sedan 6 cylinder assembly is worse.
Attachment 89690
