Brake turn signal problem
#1
![Default](/forum/images/icons/icon1.gif)
Hi I have a 1990 xjs convertible which is driving me crazy. When I put my foot on the brakes the fuse for the direction indicators blows. No corrosion anywhere no modifications . Hazard lights function fine when brake pedal depressed but not turn signals . All bulbs good. Replaced fuse many times to try to trace fault but to no avail. Any suggestions? Many thanks
#3
![Default](/forum/images/icons/icon1.gif)

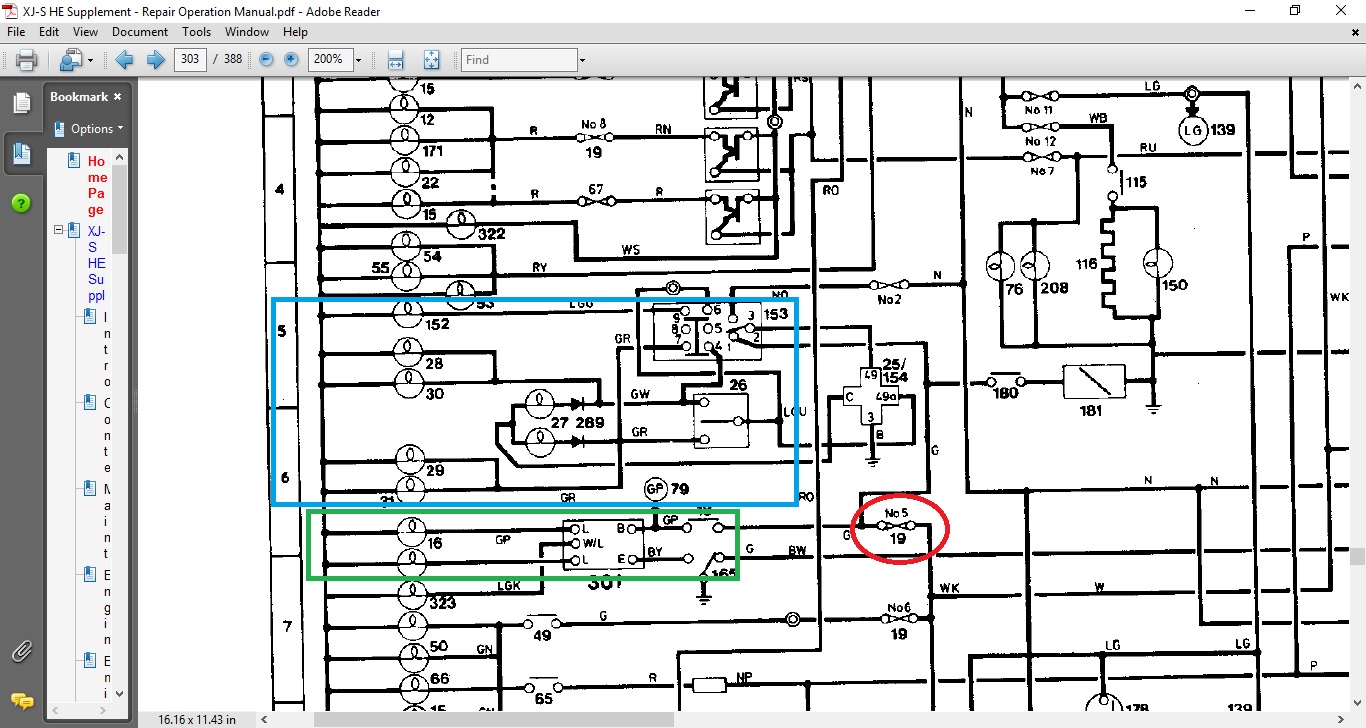

If it is fuse no.5 looking at the circuit diagram this is common to the indicators and stop lamps.
To find the cause, do the following, testing each time.....
Disconnect the connectors at the brake lights. Then work your way back towards the fuse, disconnecting connectors.
You have a short after the brake switch 18 in the diagram in the green area. It could be in the 301 the stop lamp failure sensor or in the wiring harness.
My first guess would be a chafed wire in the harness.
To find the cause, do the following, testing each time.....
Disconnect the connectors at the brake lights. Then work your way back towards the fuse, disconnecting connectors.
You have a short after the brake switch 18 in the diagram in the green area. It could be in the 301 the stop lamp failure sensor or in the wiring harness.
My first guess would be a chafed wire in the harness.
