Cigar Lighter
#1
Cigar Lighter
I was hoping for an easy fix, but that was not the case. I located the fuse for the cigarette lighter under the passenger side glove box and it was fine. Also it is the same fuse for the radio and that works fine.
I took the lighter out and I need help with the 3 wires going to it. There is black ground, then a green wire going to the bottom of the cigarette lighter and a red wire that goes to a light.
Am I correct, that with the key turned to the ignition/run position, that a test light hooked to the ground should turn on when touched to the green wire and also light when touched to the red wire? Also, the green wire is the power to the lighter itself?
If this is the case, I am not getting any power. Any suggestions?
I took the lighter out and I need help with the 3 wires going to it. There is black ground, then a green wire going to the bottom of the cigarette lighter and a red wire that goes to a light.
Am I correct, that with the key turned to the ignition/run position, that a test light hooked to the ground should turn on when touched to the green wire and also light when touched to the red wire? Also, the green wire is the power to the lighter itself?
If this is the case, I am not getting any power. Any suggestions?
#2
There is no voltage to the red light wire until the lights are turned on.
Be aware (in my case anyway) that the fuses in the ROM do not correspond with the fuses in the owners manual. Took me 2 hours to find the damn horn fuse.
#3
#4
You only said the fuse was "fine". They can fail in less than obvious ways, so always check voltage on BOTH sides. If you have voltage going through the fuse but nothing on green then you have a problem between the 2 places. Make a continuity check at those locations if you have a meter to determine if it is a short or an open.

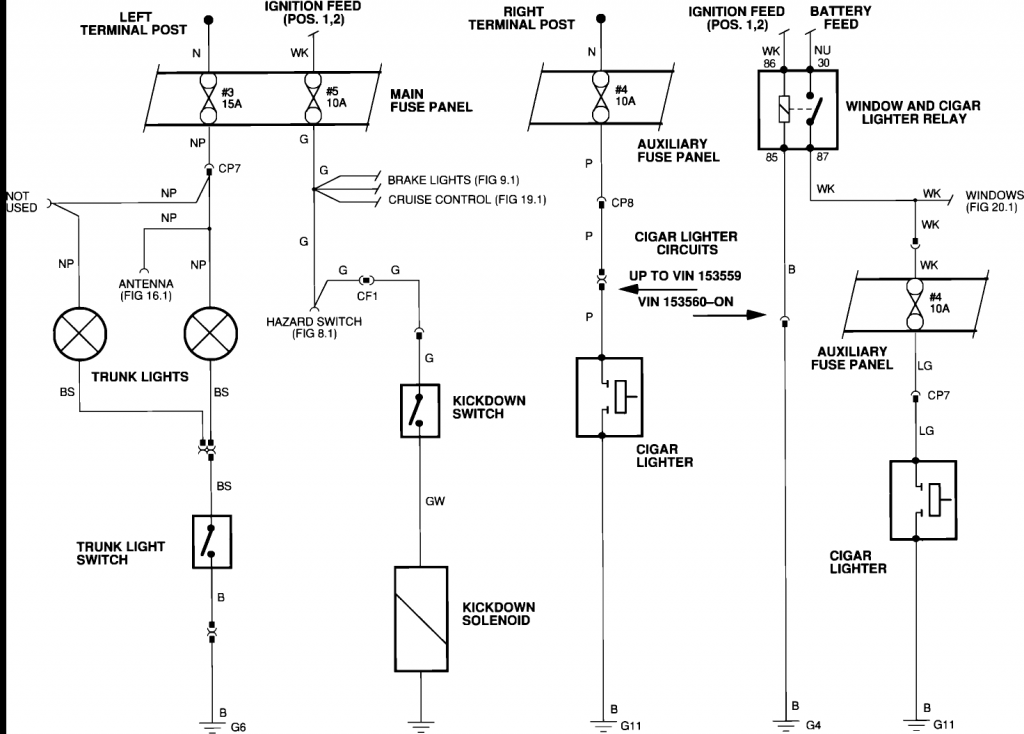

If your windows work then your relay is fine. The diagram indicates there is a connector between the relay and fuse and another between the fuse and lighter, those would also be places to check for voltage, working your way back from that first connector ( or fuse block if you have voltage there)
