dash plug
#1
dash plug

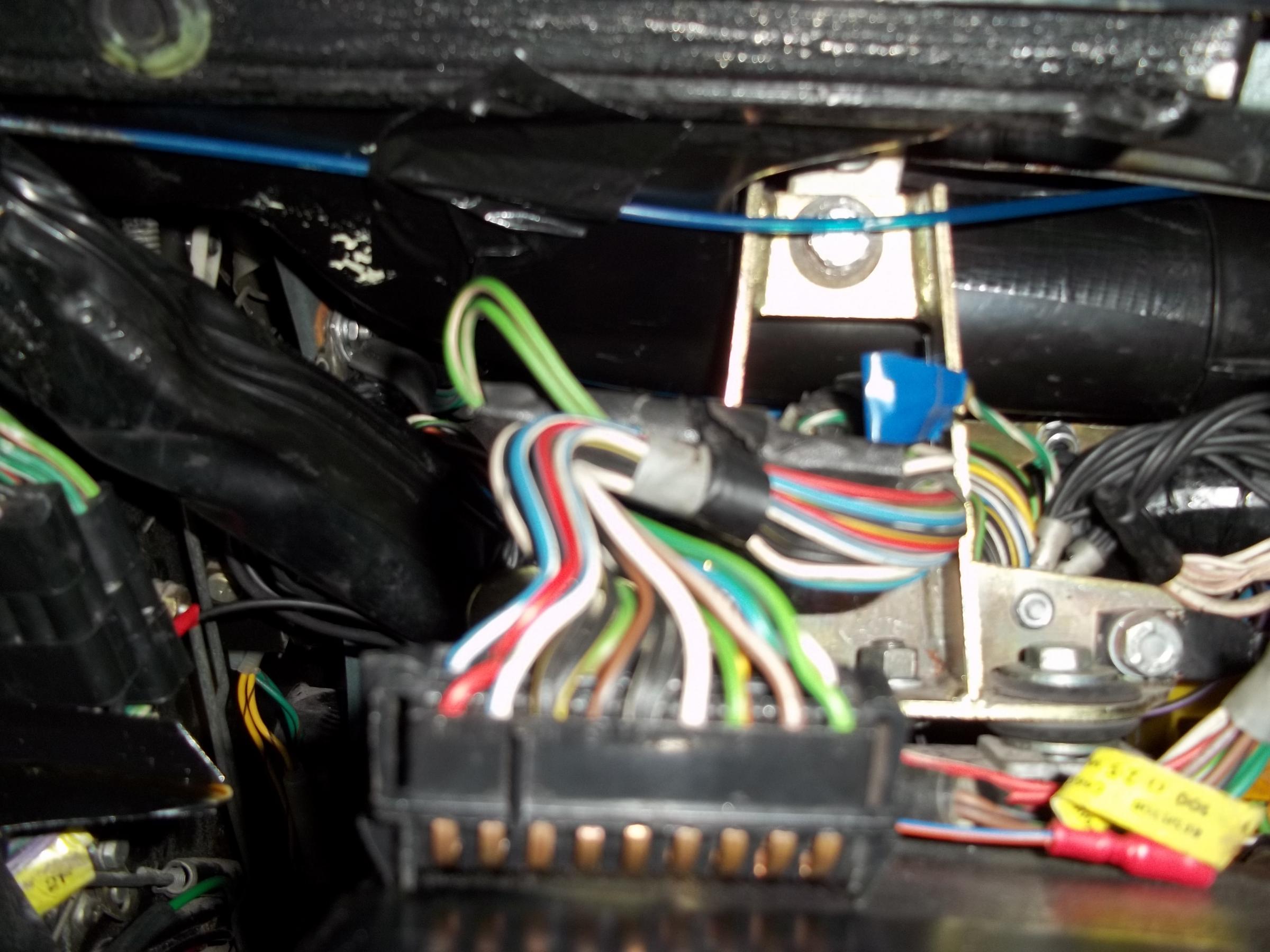

I have the dash out on the xjs, I need to find a wiring diag for the multi pin plug that carries all the info for the dash but usual books and web sites don't offer the details I want, I know I have in the past found the details on the web but not now, can anyone direct me in the right direction
#3
RGP

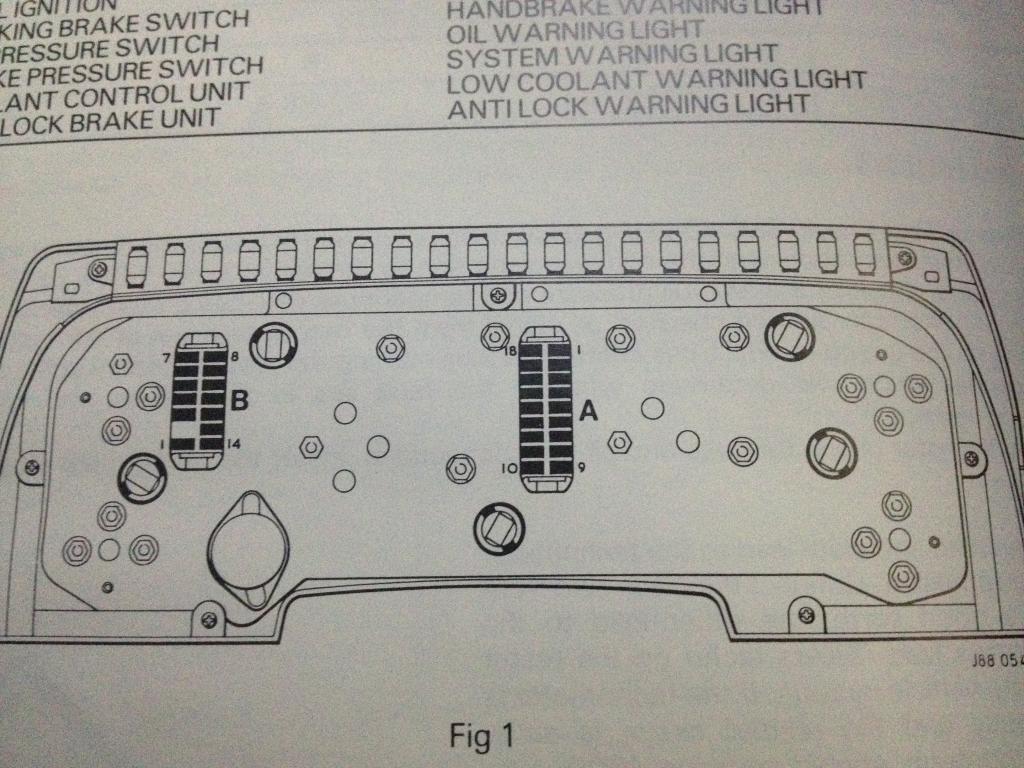

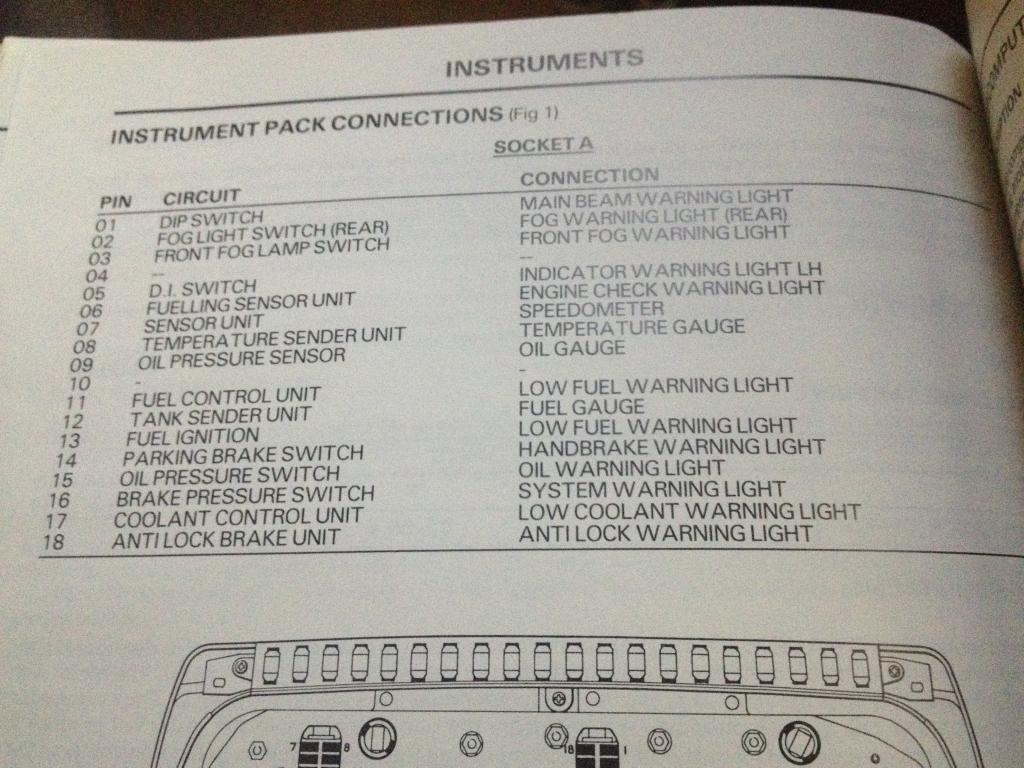

The Haynes manual page 376 to 381 has some of it. But what i did when I had a flexible circuit board problem was to use a test light to see where each connection of the instrument pack side (female side of the plug connection) went. So (eg) one probe on the plug female, and one on each instrument positive connection until I identified each. Naturally, did not keep a copy once problem solved, sorry! But the colour codes do hold good.
Greg
The Haynes manual page 376 to 381 has some of it. But what i did when I had a flexible circuit board problem was to use a test light to see where each connection of the instrument pack side (female side of the plug connection) went. So (eg) one probe on the plug female, and one on each instrument positive connection until I identified each. Naturally, did not keep a copy once problem solved, sorry! But the colour codes do hold good.
Greg
The following users liked this post:
rgp (02-25-2014)
