I just installed 16 LEDs tonight (The 20 in the panel less the "First gear lockout", "Sport", "Check Engine", and "Seat belt", where I left the useless original bulbs, in accordance with the experience of everyone else.)
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
#68
![Default](/forum/images/icons/icon1.gif)
I just installed 16 LEDs tonight (The 20 in the panel less the "First gear lockout", "Sport", "Check Engine", and "Seat belt", where I left the useless original bulbs, in accordance with the experience of everyone else.)
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
I didn't note the orientations of all of mine but that sounds about right, they are not all oriented the same way. It seems a few more of mine was down than that but like I said I didn't note them exactly. I thought I had them right on my bench by looking at the circuit board but that didn't work out so hot, so had to just plug in the dash and click the key on and off to make it do the test sequence and turn on different things doing one by one until I had them all working.
The following users liked this post:
CZSteve (05-19-2020)
#69
![Default](/forum/images/icons/icon1.gif)
I just installed 16 LEDs tonight (The 20 in the panel less the "First gear lockout", "Sport", "Check Engine", and "Seat belt", where I left the useless original bulbs, in accordance with the experience of everyone else.)
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
Problem is that only five of the LEDs work ("Transmission", fourth from the left, the left and right turn signals (positions five and 16, counted from the left), "High Beam", position six from the left, and "Bulb Out", position 18 from the left)
I assume the reason for the others not coming on is that I've got them oriented the wrong way, LEDs being polarity sensitive.
Looking at the circuit board I've made the following assumption on how to orient the LEDs, with UP being toward the sky, and DOWN exactly that. Those of you who have successfully installed LEDs, can you confirm these orientations?
From left to right, on a 1995 XJS:
Meaning Ground
1. Exhaust temperature UP
2. Low gear lockout UP (Keep bulb)
3. Sport UP (Keep bulb)
4. Transmission DOWN
5. Left turn signal UP
6. High beam UP
7. Anitlock UP
8. Charging UP
9. Brake UP
10. Low fuel UP
11. Parking brake UP
12. Low coolant UP
13. Check engine DOWN (Keep bulb)
14. Oil UP
15. Seat belt UP (Keeping bulb)
16. Right turn signal UP
17. Fog light UP
18. Bulb out indicator UP
19. Fog light UP
20. Washer fluid DOWN
Is this in accordance with your experience?
What I' obviously forgot to mention was that the UP and DOWN represent where I thought ground was, and where I put the negative, -, side of the diode... :-)
Last edited by AndersA; 10-09-2014 at 12:13 PM.
#70
![Default](/forum/images/icons/icon1.gif)
Hi,
I installed the lights from www.superbrightleds.com yesterday. I checked each and every bulb for ground and marked them. I checked each socket for the ground before inserting the bulb. After putting the bulbs in I see that they match exactly like AndersA installed them.
But all is not well. When I turn my ignition key to the on position my bulb out turns on for a second, the seat belt light turns on for about 2-3 seconds and the check engine light is on all the time. When I start the engine the check engine light stays on but nothing else. My right turn signal works when I signal a right turn and the high beam indicator illuminates when I turn on my high beams. Nothing else works. I did not replace the bulbs for the sport light, 1st gear lockout, check engine and seat belt light. Of course I triple checked to see if the two plugs are attached nicely and they are. I even verified that I did not put them in backwards.
Please advise.
Jomo
I installed the lights from www.superbrightleds.com yesterday. I checked each and every bulb for ground and marked them. I checked each socket for the ground before inserting the bulb. After putting the bulbs in I see that they match exactly like AndersA installed them.
But all is not well. When I turn my ignition key to the on position my bulb out turns on for a second, the seat belt light turns on for about 2-3 seconds and the check engine light is on all the time. When I start the engine the check engine light stays on but nothing else. My right turn signal works when I signal a right turn and the high beam indicator illuminates when I turn on my high beams. Nothing else works. I did not replace the bulbs for the sport light, 1st gear lockout, check engine and seat belt light. Of course I triple checked to see if the two plugs are attached nicely and they are. I even verified that I did not put them in backwards.
Please advise.
Jomo
Last edited by jomo; 10-10-2014 at 01:38 PM.
#71
#72
![Default](/forum/images/icons/icon1.gif)
Here is exactly how I got my results. I used a 9v battery to test the new bulbs. One direction they worked the other direction they did not work. When the bulb lit I but a mark on the bulb that was by the - side of the 9v battery. Using an ohm meter I placed one end to a screw (ground) and the other end to one of the two contact on the circuit board for each bulb opening. When I got continuity I said ground. Then I placed the bulb so that the marked side went to the ground contact. I did this for each of the 20 bulbs (I did all 20 initially because you asked me to I can tell you my results). When I had the trouble described above I removed the four 'problem' bulbs and still the same problem.
Jomo
Last edited by jomo; 10-10-2014 at 02:08 PM.
#73
![Default](/forum/images/icons/icon1.gif)
Jomo,
Very comprehensive! Some people do seem to have had problems with some LEDs seating properly. I think that if you're seeing current on the bulbholder contacts for the non-working circuits, then you have to start considering the alignment and positioning of the LEDS first.
The only other thing I can suggest is to scan for any fault codes in case bizarrely there is some reason why the MIL has lit.
Really interested to hear the outcome.
Good luck
Paul
Very comprehensive! Some people do seem to have had problems with some LEDs seating properly. I think that if you're seeing current on the bulbholder contacts for the non-working circuits, then you have to start considering the alignment and positioning of the LEDS first.
The only other thing I can suggest is to scan for any fault codes in case bizarrely there is some reason why the MIL has lit.
Really interested to hear the outcome.
Good luck
Paul
#74
![Default](/forum/images/icons/icon1.gif)
In the 95's how do I get the MIL code that is in the computer?
Jomo
Last edited by jomo; 10-10-2014 at 02:46 PM.
#75
![Default](/forum/images/icons/icon1.gif)
Here is my 1st update. I pulled the led from the left t/s socket and put back the original bulb. The bulb lit under the correct condition (ign turned on and turn signal switch in left turn position). So (once again!) Paul is correct that 13 out of the 16 new bulbs are not making good contact. I am really not happy about this as even if I do get them to work today it may not be permanent. I will try my best to seat all the bulbs nicely.
I really thought that this was going to be a quick fix especially with Paul's steps on how to remove the dashboard. I actually had the panel out in 5-7 minutes. Putting in the bulbs correctly took a bit of time as I had to find the ground of each bulb, mark it and then figure out how to orient the bulb in the socket correctly. Now I will be checking to make sure that each bulb is making contact in each socket. Maybe 30 more minutes? I really want to drive my car and see the dash lights. One day I will figure out precisely why me and so many other people just love these Jaguars. I guess the answer is that there are so many nice things about the car and when put together it is just the greatest car around (I wonder if I would put an XKE ahead of my XJS).
Wish me luck and expect my next (and final?) update shortly.
Jomo
I really thought that this was going to be a quick fix especially with Paul's steps on how to remove the dashboard. I actually had the panel out in 5-7 minutes. Putting in the bulbs correctly took a bit of time as I had to find the ground of each bulb, mark it and then figure out how to orient the bulb in the socket correctly. Now I will be checking to make sure that each bulb is making contact in each socket. Maybe 30 more minutes? I really want to drive my car and see the dash lights. One day I will figure out precisely why me and so many other people just love these Jaguars. I guess the answer is that there are so many nice things about the car and when put together it is just the greatest car around (I wonder if I would put an XKE ahead of my XJS).
Wish me luck and expect my next (and final?) update shortly.
Jomo
#76
![Default](/forum/images/icons/icon1.gif)

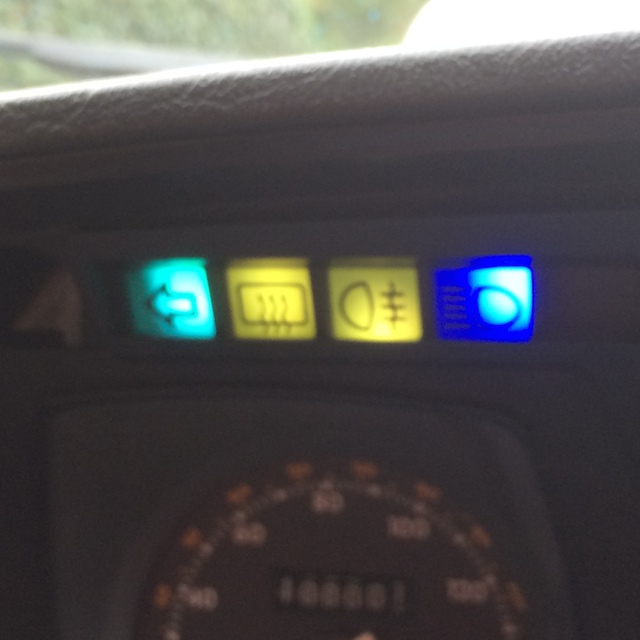

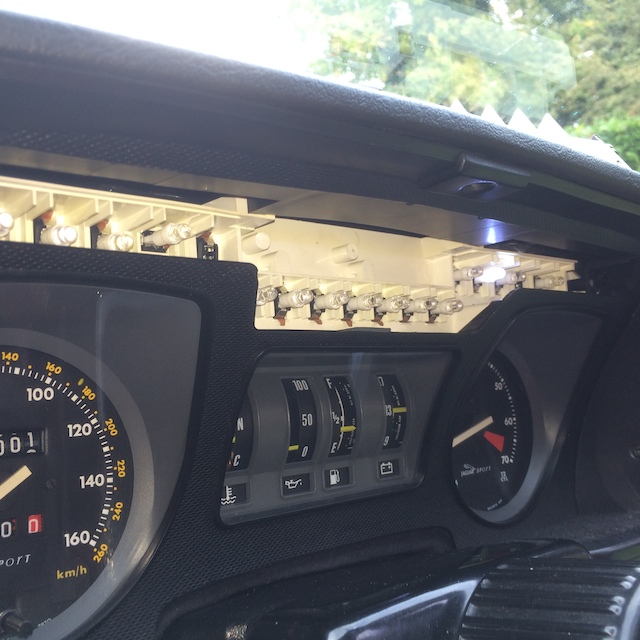

i have just replaced all the lamps in my 89 coupe , as in another post i made today with pictures
