from another forum strraight up GAVE me these in an effort to help me get my V12 running. i couldnt be more grateful.

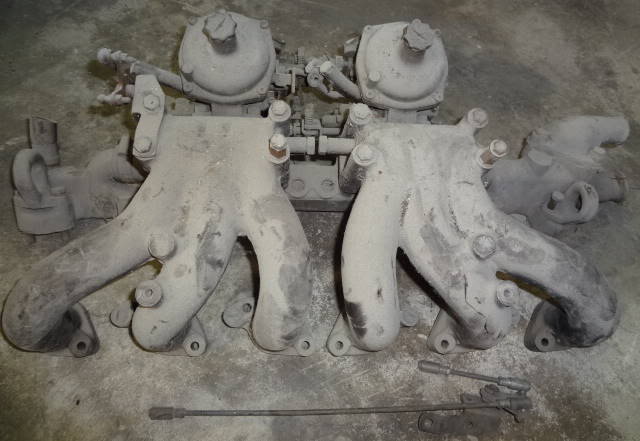

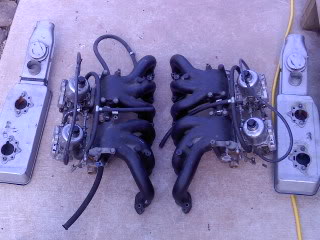

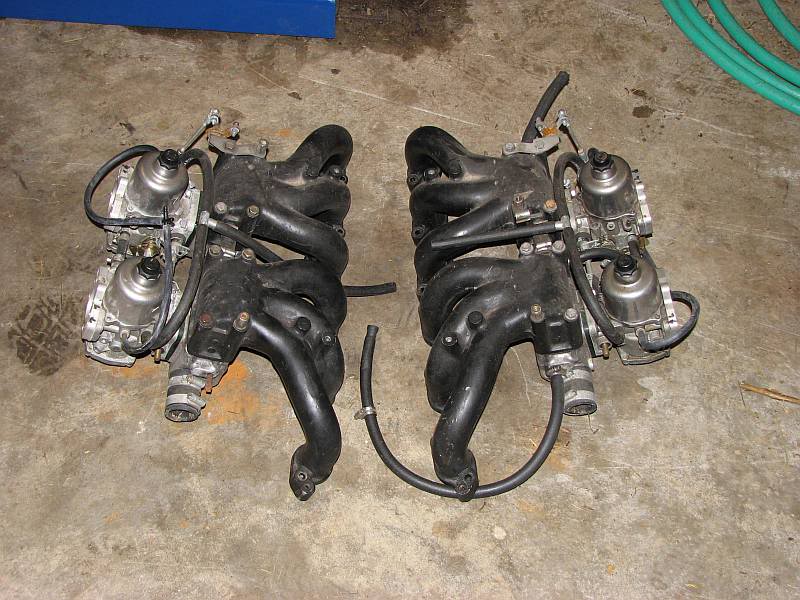

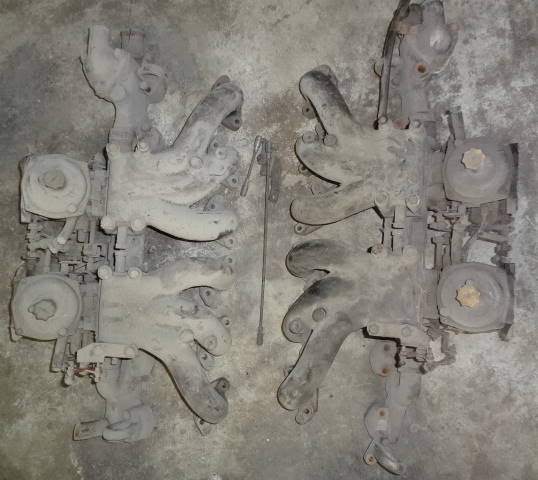

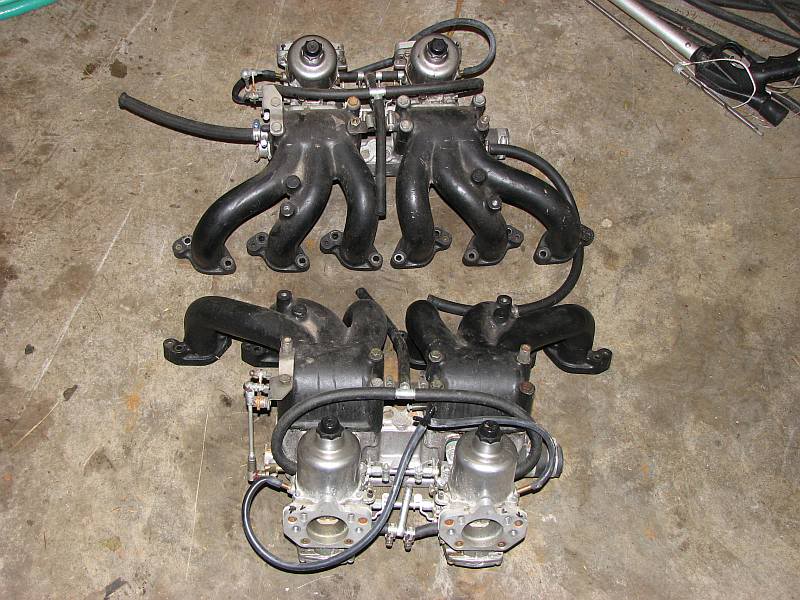

Theyre XKE inlet manifolds complete with SU constant velocity round slide carburetors.
but ive already noticed a problem. one of the slides acts very different from the other 3. the first 3 have some resistance keeping them from sliding up and down. sort of like a rubber seal around a shaft.
the 4th slide has no resistance at all. ill post a video up later if no one has a clue what im talking about.
all in all, im totally stoked to see this project move forward. ill be looking into some fuel pump options shortly.
Theyre XKE inlet manifolds complete with SU constant velocity round slide carburetors.
but ive already noticed a problem. one of the slides acts very different from the other 3. the first 3 have some resistance keeping them from sliding up and down. sort of like a rubber seal around a shaft.
the 4th slide has no resistance at all. ill post a video up later if no one has a clue what im talking about.
all in all, im totally stoked to see this project move forward. ill be looking into some fuel pump options shortly.
Last edited by M90power; 06-28-2012 at 08:57 PM.
#2
#4
also, 3.8 or 3.4?!?
Last edited by M90power; 06-28-2012 at 09:05 PM.
#5
#7
Just in case this is useful, the SU carb works like this.
There is a diaphram with the jet in it underneath. This is accessed by unscrewing the bottom casting. there is a spring underneath the jet diaphram that holds it up against the adjuster. Check on all four that the jet and spring assembly is OK
On top, the "bell" shaped bit has a slide in it that is damped by a plunger that fits in an oil-filled column. If you unscrew the round plastic knurled top (about 0.5 inch wide) you can withdraw the plunger and top up the damper oil.
The slide itself holds the jet needle (as the needle rises with the slide, the tapered needle effectively increases the jet size). If you unscrew the "bell" top of the carb the slide comes out and the jet needle can be accessed and changed. Check that the slide is not fouling the bell at all, if it is polish out any highspots.
One reason for one slide moving more freely that the others would be that the damper oil needs refilling.
Greg
There is a diaphram with the jet in it underneath. This is accessed by unscrewing the bottom casting. there is a spring underneath the jet diaphram that holds it up against the adjuster. Check on all four that the jet and spring assembly is OK
On top, the "bell" shaped bit has a slide in it that is damped by a plunger that fits in an oil-filled column. If you unscrew the round plastic knurled top (about 0.5 inch wide) you can withdraw the plunger and top up the damper oil.
The slide itself holds the jet needle (as the needle rises with the slide, the tapered needle effectively increases the jet size). If you unscrew the "bell" top of the carb the slide comes out and the jet needle can be accessed and changed. Check that the slide is not fouling the bell at all, if it is polish out any highspots.
One reason for one slide moving more freely that the others would be that the damper oil needs refilling.
Greg
Last edited by Greg in France; 06-29-2012 at 01:04 AM.
