Facelift No Fuel Issue
#1
Facelift No Fuel Issue
I have a 1996 XJS with the AJ16 engine.
I just got my car back from the shop after being there for a fuel tank repair. It was leaking. They pulled the whole thing out, recoated it (again) and I drove it home this past Thursday. I stopped on the way home and filled up the tank. After that I took it home and it sat unused over the weekend.
This morning I tried to start it up and the engine would not start. It cranks, but no start.
Long story short, I pulled the hose going into the fuel pressure regulator and no gas on startup.
I know I should take it back to the shop, and it would have to be towed a good distance to get it there, but was wondering if theres any low hanging fruit I can check before sending it back.
So far I:
1. Checked the inertia switch. I pressed the button, no click, and I shorted the two wires together, bypassing the switch. No difference.
2. Shorted Blue/Red and Brown/Pink wires at the Fuel Pump Relay. (Terminals 30 & 87) No difference.
There are no Check Engine Light codes.
Anything else I should try?
I just got my car back from the shop after being there for a fuel tank repair. It was leaking. They pulled the whole thing out, recoated it (again) and I drove it home this past Thursday. I stopped on the way home and filled up the tank. After that I took it home and it sat unused over the weekend.
This morning I tried to start it up and the engine would not start. It cranks, but no start.
Long story short, I pulled the hose going into the fuel pressure regulator and no gas on startup.
I know I should take it back to the shop, and it would have to be towed a good distance to get it there, but was wondering if theres any low hanging fruit I can check before sending it back.
So far I:
1. Checked the inertia switch. I pressed the button, no click, and I shorted the two wires together, bypassing the switch. No difference.
2. Shorted Blue/Red and Brown/Pink wires at the Fuel Pump Relay. (Terminals 30 & 87) No difference.
There are no Check Engine Light codes.
Anything else I should try?
#2
Vee,
Have you got an assistant who can help you verify if:
- the pump runs for 2 seconds every time you turn the ignition on?
- the pump runs when the engine being cranked?
If the pump doesn't run under both of those conditions, I'd be checking the Fuel Pump Relay (Which you've bypassed anyway). Then I'd assume it was a Fuel Pump problem perhaps caused when reinstalled, so I'd take it back to the shop.
But if the pump does run under both conditions, I'd disconnect the fuel line at the filter (on the output side). If it doesn't flow fuel when cranking, I'd then disconnect on the input side of the filter and check again (in case debris from the tank coating has blocked the filter).
Good luck
Paul
Have you got an assistant who can help you verify if:
- the pump runs for 2 seconds every time you turn the ignition on?
- the pump runs when the engine being cranked?
If the pump doesn't run under both of those conditions, I'd be checking the Fuel Pump Relay (Which you've bypassed anyway). Then I'd assume it was a Fuel Pump problem perhaps caused when reinstalled, so I'd take it back to the shop.
But if the pump does run under both conditions, I'd disconnect the fuel line at the filter (on the output side). If it doesn't flow fuel when cranking, I'd then disconnect on the input side of the filter and check again (in case debris from the tank coating has blocked the filter).
Good luck
Paul
#3
I left the hose to the FPR disconnected while doing a variety of tests, never got anything out of it, so that pump is either not working, or blocked.
I may check that fuel filter, but it gets changed every few years, so it’s unlikely, but plausible.
Thanks for your thoughts.

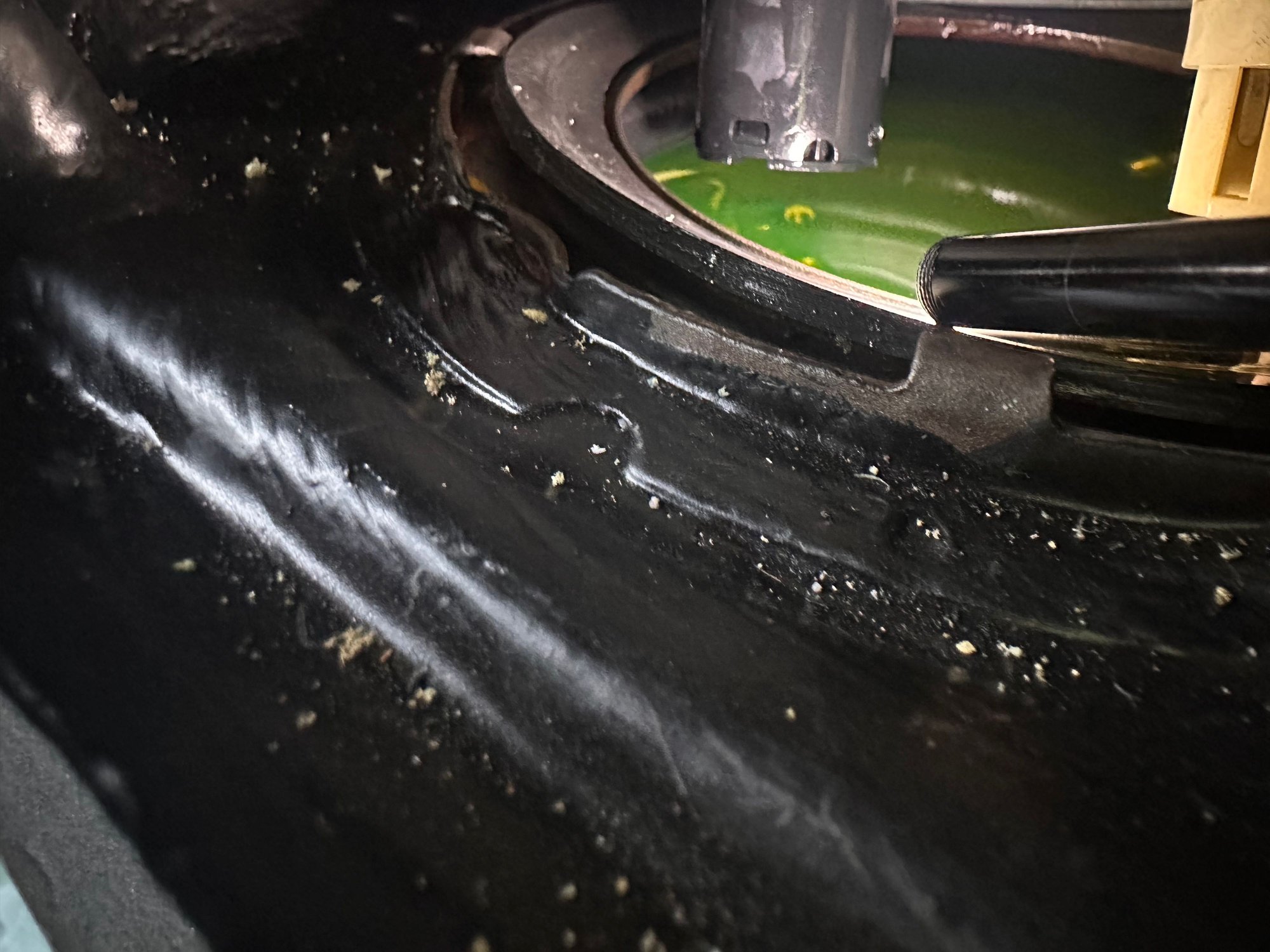

I may pull that metal wall separating the tank from the trunk down to see if there’s something that got disconnected?
I may check that fuel filter, but it gets changed every few years, so it’s unlikely, but plausible.
Thanks for your thoughts.
I may pull that metal wall separating the tank from the trunk down to see if there’s something that got disconnected?
#4
#5
I will do that.
I have confirmed continuity of the Blue/Red wire from the fuel pump relay to the top of the fuel tank harness, where it goes into the tank.
That harness has four wires. Two black, the one blue/red and a Brown/Orange. It seems like a larger gauge wire as well....what is this wire?
I have confirmed continuity of the Blue/Red wire from the fuel pump relay to the top of the fuel tank harness, where it goes into the tank.
That harness has four wires. Two black, the one blue/red and a Brown/Orange. It seems like a larger gauge wire as well....what is this wire?
#6
Continuity checks out from:
- Blue/Red between relay base and tank harness.
- Brown/Pink to Battery Clamp
- Black wire from harness checked out to ground.
Last edited by Vee; Yesterday at 06:37 PM.
#7
1. Fuel pump may be wired in reverse. Remember, I did drive this car home for about 15 miles. I even stopped at a gas station, shutting the engine off, and filled my tank. Started back up and drove the rest of the way home. Three days of inactivity and here we now are. Would that seem feasible for a reverse wired pump?
2. What if the shop reconnected the supply with the return hoses and reversed that connection under the car? Could that cause a problem?
The headscratcher here is that I drove this car home, turning the engine off then back on....
Trending Topics
#8
If I connect 12v directly to the black and white wires inside the tank, that connect to the fuel pump, the pump should run, right?
Well, I tried it, but from outside the tank, through the harness terminals. I applied 12v and the PUMP RAN!!! It is not a dead pump.
I applied 12v to the fuel relay at Terminals 85 & 86, and it clicks…so I think that works?
EMS and ECM relays both click as I plug them in and out.
Well, I tried it, but from outside the tank, through the harness terminals. I applied 12v and the PUMP RAN!!! It is not a dead pump.
I applied 12v to the fuel relay at Terminals 85 & 86, and it clicks…so I think that works?
EMS and ECM relays both click as I plug them in and out.
Last edited by Vee; Yesterday at 06:55 PM.
#9
So I ran continuity tests on all the wires I thought were relevant. See attached.
Two things to note:
1. The continuity reading I got for the Pink/Brown wire from the Fuel Pump Relay to the Black / High Power Harness at the ECU. That was the only reading that came up higher than 0.03.
2. I ran a continuity test (successfully) from the EMS Power Relay base using the White/Red wire all the way to the Inertia Switch. Then I took it to the White/Purple wire, on the other side of the Inertia Switch, and it came up good as well.
What else can I do, or test?
Two things to note:
1. The continuity reading I got for the Pink/Brown wire from the Fuel Pump Relay to the Black / High Power Harness at the ECU. That was the only reading that came up higher than 0.03.
2. I ran a continuity test (successfully) from the EMS Power Relay base using the White/Red wire all the way to the Inertia Switch. Then I took it to the White/Purple wire, on the other side of the Inertia Switch, and it came up good as well.
What else can I do, or test?
#10
Hi Vee
Its only the V12 Pumps that sometimes get wired in reverse, not the internal Fuel Pumps on the AJ16 (anything is possible but its very unlikely)
You have Separate Coil Packs on your AJ16 so who knows it could be a Failing Coil
You might not even have enough Fuel in the Tank! It could take 20 Gallons just to get to cover the Filter depending of course on how high the Filter is from the Bottom of the Tank
It could also be the 2 X Blue Hella Relays on top of the Fuses under the Passenger Knee Panel if the are not making good contact in their Holders (Prime Suspects!)
It could be the Fuse to the ECU that is also amongst all those Fuses
Worth Checking them all
Have a look at this Thread 'Carmen Won't Start' Page 93 'Cherry Blossom' Restoration Thread Almost every trick in the Book to try and Start my AJ16 Engine!
You also need a really good Battery showing in excess of 12 Volts to really '**** it over' as that could also be the problem
Good Luck
Alex
Its only the V12 Pumps that sometimes get wired in reverse, not the internal Fuel Pumps on the AJ16 (anything is possible but its very unlikely)
You have Separate Coil Packs on your AJ16 so who knows it could be a Failing Coil
You might not even have enough Fuel in the Tank! It could take 20 Gallons just to get to cover the Filter depending of course on how high the Filter is from the Bottom of the Tank
It could also be the 2 X Blue Hella Relays on top of the Fuses under the Passenger Knee Panel if the are not making good contact in their Holders (Prime Suspects!)
It could be the Fuse to the ECU that is also amongst all those Fuses
Worth Checking them all
Have a look at this Thread 'Carmen Won't Start' Page 93 'Cherry Blossom' Restoration Thread Almost every trick in the Book to try and Start my AJ16 Engine!
You also need a really good Battery showing in excess of 12 Volts to really '**** it over' as that could also be the problem
Good Luck
Alex
#11
Thanks for the thoughtful response. I really appreciate it.
I had everything covered. Blue relays replaced, failing coils wouldn’t disable a fuel pump, fuses have been checked….until….
..until you got to the battery. I had thought that the car was in the shop for months. The battery might have been jumped just before I picked up the car…then as I drove it home, it might have had just enough juice to restart after a fill up….then after sitting dormant for another 96 hours, maybe it has enough to crank, but not enough to fire up the fuel pump?
it was a variable I had to cross off the list. So it’s currently charging using my trickle charger.
Thanks for the continued thoughts. I’ll let you know tomorrow if this is the answer!
I had everything covered. Blue relays replaced, failing coils wouldn’t disable a fuel pump, fuses have been checked….until….
..until you got to the battery. I had thought that the car was in the shop for months. The battery might have been jumped just before I picked up the car…then as I drove it home, it might have had just enough juice to restart after a fill up….then after sitting dormant for another 96 hours, maybe it has enough to crank, but not enough to fire up the fuel pump?
it was a variable I had to cross off the list. So it’s currently charging using my trickle charger.
Thanks for the continued thoughts. I’ll let you know tomorrow if this is the answer!
