need help identifying hoses/lines
#1
need help identifying hoses/lines
its been about 2 years since the car was V12 powered so my memory is a bit fogy. so i appear to have 5 hoses/steel lines that go out of the engine bay to places unknown. i need help identifying the last 3 and confirming my fuel lines are hooked up correctly.
one is fuel return to tank
, one is fuel in to engine from tank

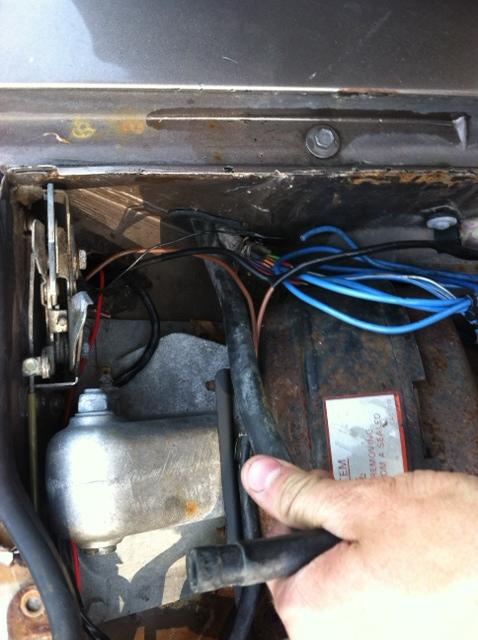

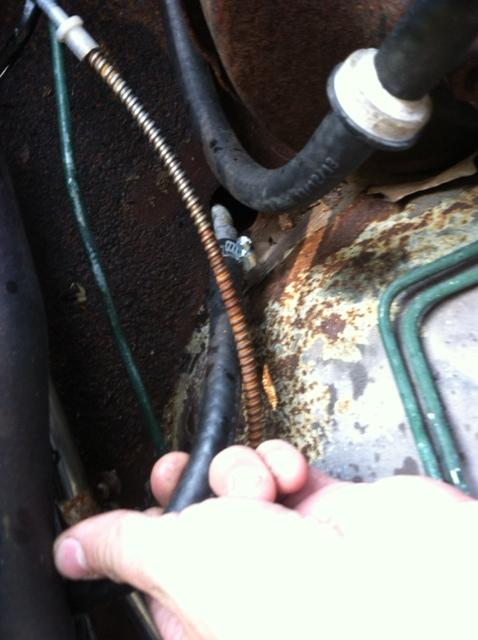

, one is a rubber hose that goes behind the brake booster down into the fender

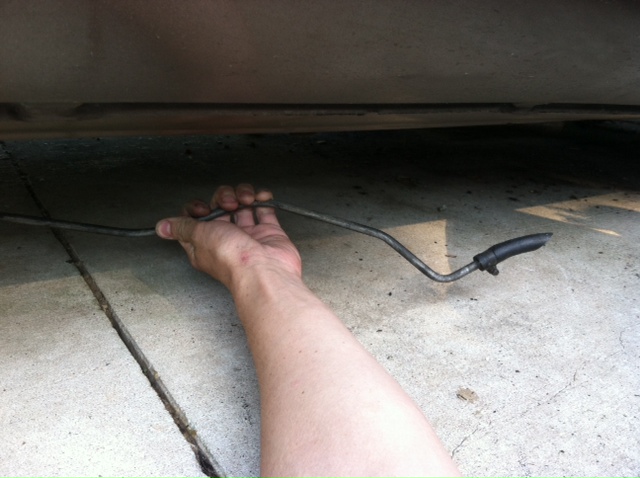

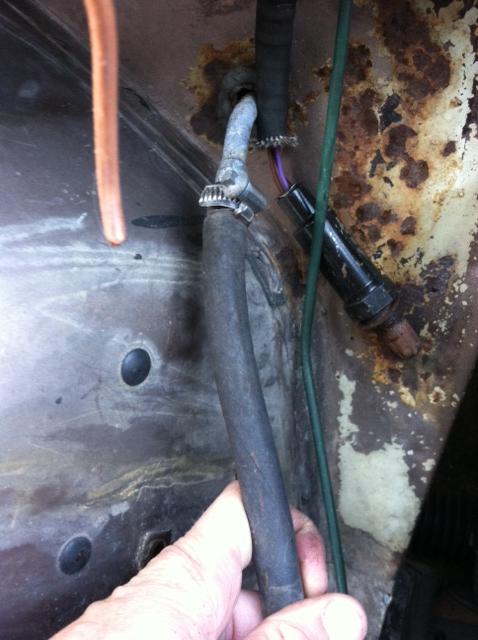

one is a steel line that starts at the drivers fender well
the last one goes up the center of the transmission tunnel into where the V sits on the old 12.
ideas?
one is fuel return to tank
, one is fuel in to engine from tank
, one is a rubber hose that goes behind the brake booster down into the fender
one is a steel line that starts at the drivers fender well
the last one goes up the center of the transmission tunnel into where the V sits on the old 12.
ideas?
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,923
Received 10,980 Likes
on
7,212 Posts
The last one...the one that goes in/along the trans tunnel, is probably the vacuum supply to the ECU.
From memory the only thing inside the LH fender is the coolant overflow tank.....aft of the front wheel, behind a plastic shield in the fenderwell. Maybe there's also a vapor cannister in the LH fender? Can't remember for sure....don't think so, though.
The fuel supply comes in on the RH side of the engine bay; fuel return on the LH side...but I think you aleady figured those out
Steel line in LH fenderwell? I'm stumped.
Cheers
DD
From memory the only thing inside the LH fender is the coolant overflow tank.....aft of the front wheel, behind a plastic shield in the fenderwell. Maybe there's also a vapor cannister in the LH fender? Can't remember for sure....don't think so, though.
The fuel supply comes in on the RH side of the engine bay; fuel return on the LH side...but I think you aleady figured those out
Steel line in LH fenderwell? I'm stumped.
Cheers
DD
The following users liked this post:
M90power (05-19-2014)
