It's almost there!!!

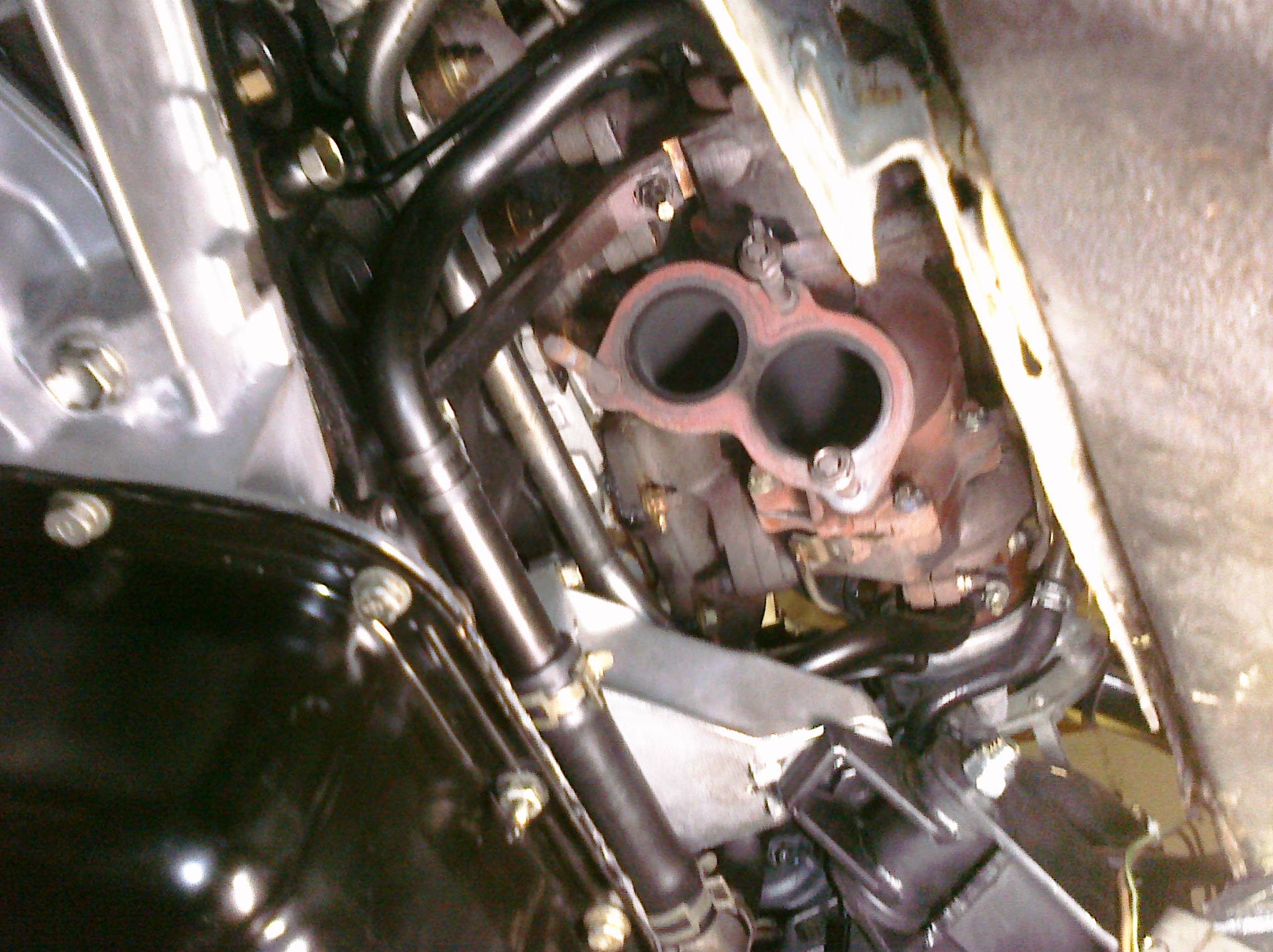

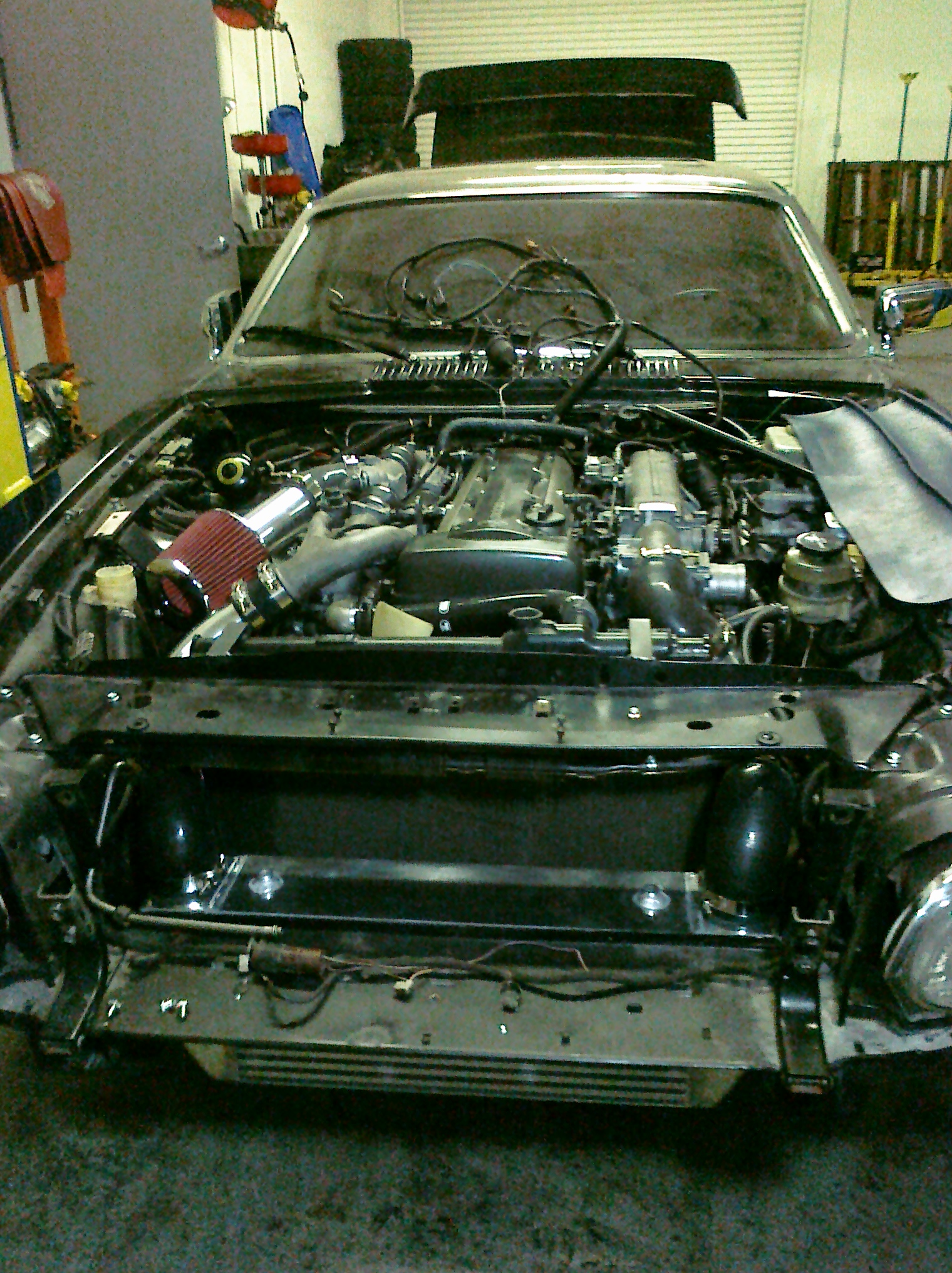

Intercooler piping done, Supra radiator mounted (the top brackets are just temporary though), power steering all plumbed including a cooler, AN-8 braided fuel line running all the way to the trunk, motor mounts all done, heater hoses all hooked up to the engine and a Supra heater control valve, throttle cable hooked up.
![Name: CIMG0304.jpg
Views: 977
Size: 1.04 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178909d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0304.jpg)
![Name: CIMG0306.jpg
Views: 998
Size: 1.12 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178910d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0306.jpg)
![Name: CIMG0307.jpg
Views: 902
Size: 1.12 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178911d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0307.jpg)
![Name: CIMG0311.jpg
Views: 1207
Size: 1.23 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178912d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0311.jpg)
![Name: CIMG0312.jpg
Views: 1108
Size: 1.30 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178913d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0312.jpg)
![Icon Hyper](https://www.jaguarforums.com/forum/images/smilies/icon_hyper.gif)
![Name: CIMG0304.jpg
Views: 977
Size: 1.04 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178909d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0304.jpg)
![Name: CIMG0306.jpg
Views: 998
Size: 1.12 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178910d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0306.jpg)
![Name: CIMG0307.jpg
Views: 902
Size: 1.12 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178911d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0307.jpg)
![Name: CIMG0311.jpg
Views: 1207
Size: 1.23 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178912d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0311.jpg)
![Name: CIMG0312.jpg
Views: 1108
Size: 1.30 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178913d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0312.jpg)
![Name: CIMG0315.jpg
Views: 1105
Size: 1.37 MB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/178914d1501301698-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0315.jpg)
#66
![Default](/forum/images/icons/icon1.gif)
It drives!!! We finally got it to the point were we can drive it! Man this has been a lot more work then I originally expected. I got the fuel system dialed in with an inline Walbro high pressure pump and two filters, new Koyo radiator, I got a MUCH larger 30 row transmission oil cooler, new Bilstein shocks front and rear, just ordered a set of poly bushings for the front suspension.
With the new lighter weight engine, and no park bench sized front bumper, the car sat a good 1.5 inches higher in the front then stock. I couldn't find lowering springs, and with less weight in the front I didn't want higher spring rate spring anyway.... So I cut about one coil off the bottom of the front springs, and with my trusty oxy-acetlyene torch I heated and bent the last coil to be more flat like stock. This mod gave us the perfect drop that we wanted. It lowered the car around 2" in the front, which gives it a little rake, and that makes the car look like it's fast just sitting there!
Next thing to get is a set of 18" wheels, and it looks like we can fit a 18"x9.5" wheel in the back, possibly with a 275x40x18 tire! It's going to take a wheel with about a +45 offset.

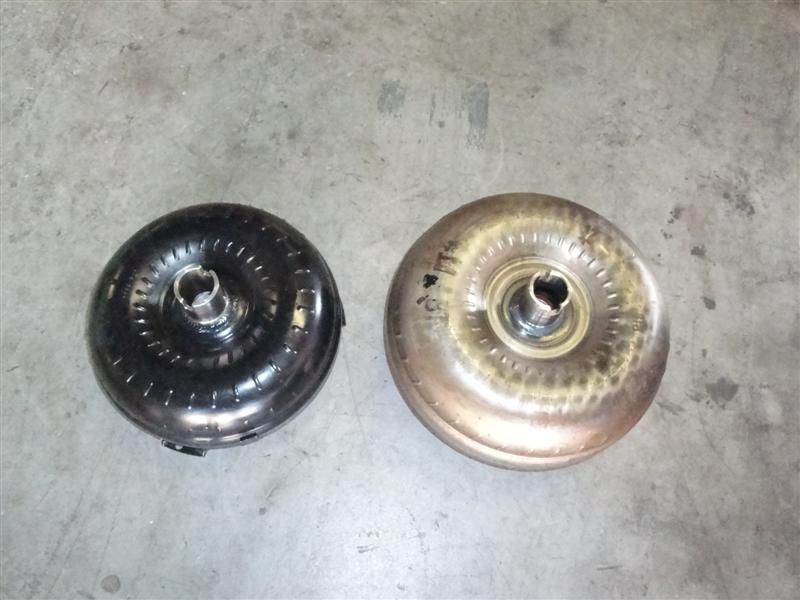

The transmission is going to take more work to get it dialed in. It needs a custom torque converter, and adjustment to the shift point for load and rpm.
The power steering works excellent, the stock oil ressure gauge works, the alternator is charging, and once it hits full boost at about 4500rpm it takes off like crazy!
I have lots of pics to post, I'll try to get them uploaded this weekend.
With the new lighter weight engine, and no park bench sized front bumper, the car sat a good 1.5 inches higher in the front then stock. I couldn't find lowering springs, and with less weight in the front I didn't want higher spring rate spring anyway.... So I cut about one coil off the bottom of the front springs, and with my trusty oxy-acetlyene torch I heated and bent the last coil to be more flat like stock. This mod gave us the perfect drop that we wanted. It lowered the car around 2" in the front, which gives it a little rake, and that makes the car look like it's fast just sitting there!
Next thing to get is a set of 18" wheels, and it looks like we can fit a 18"x9.5" wheel in the back, possibly with a 275x40x18 tire! It's going to take a wheel with about a +45 offset.
The transmission is going to take more work to get it dialed in. It needs a custom torque converter, and adjustment to the shift point for load and rpm.
The power steering works excellent, the stock oil ressure gauge works, the alternator is charging, and once it hits full boost at about 4500rpm it takes off like crazy!
I have lots of pics to post, I'll try to get them uploaded this weekend.
Last edited by Bigaaron; 06-02-2010 at 02:12 AM.
#71
![Default](/forum/images/icons/icon1.gif)
Tonight I was able to get the engine temp working, along with the tachometer! Incredibly the tach works perfectly with the 2jz ignition! And the Jaguar stock temp gauge is almost exactly correct using the 2jz coolant temp sensor! So now I have ALL the gauges working, including the coolant reservoir light! We turned the stock Jaguar coolant fill tank into an overflow bottle for the Toyota radiator!
Last, but not least, we need to hook up and adjust the parking brakes. Since it was adjusted by the previous owner for the old worn out parking brake pads, we need to put some slack back in the cable at the handle, so that we can connect the new rear parking brake calipers with the brand new pads.
Here's some more pics!
Front view of intercooler, the hood is finally back on!

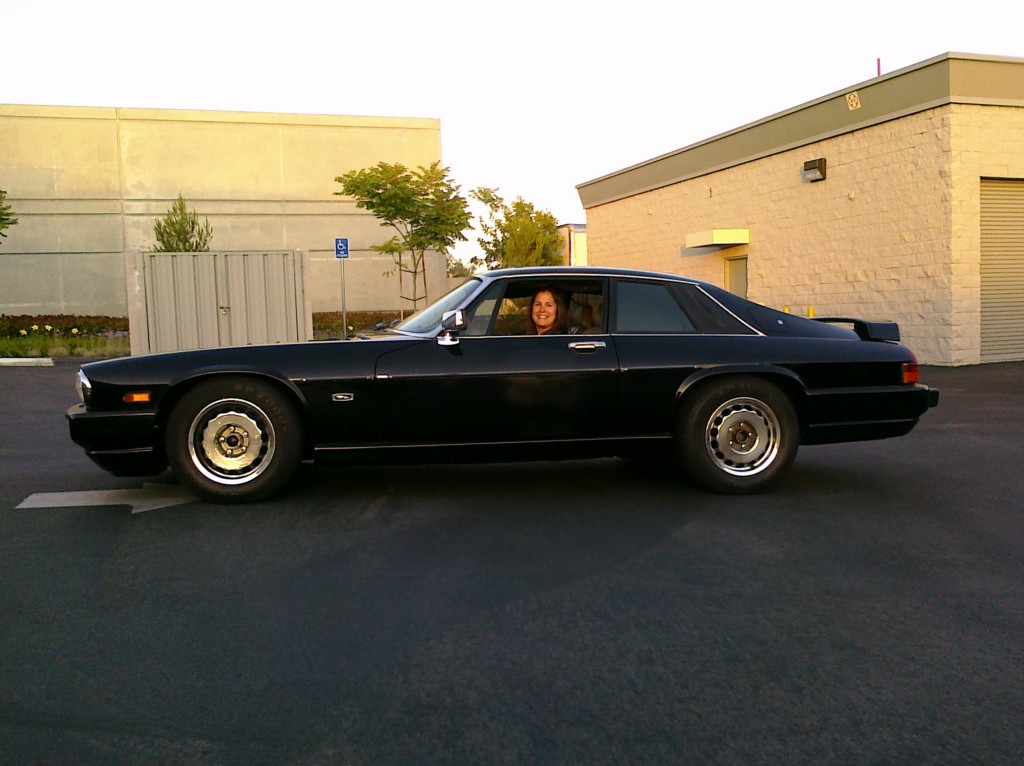

Side view with new ride height.
![Name: CIMG05281024x768.jpg
Views: 881
Size: 137.3 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177990d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05281024x768.jpg)

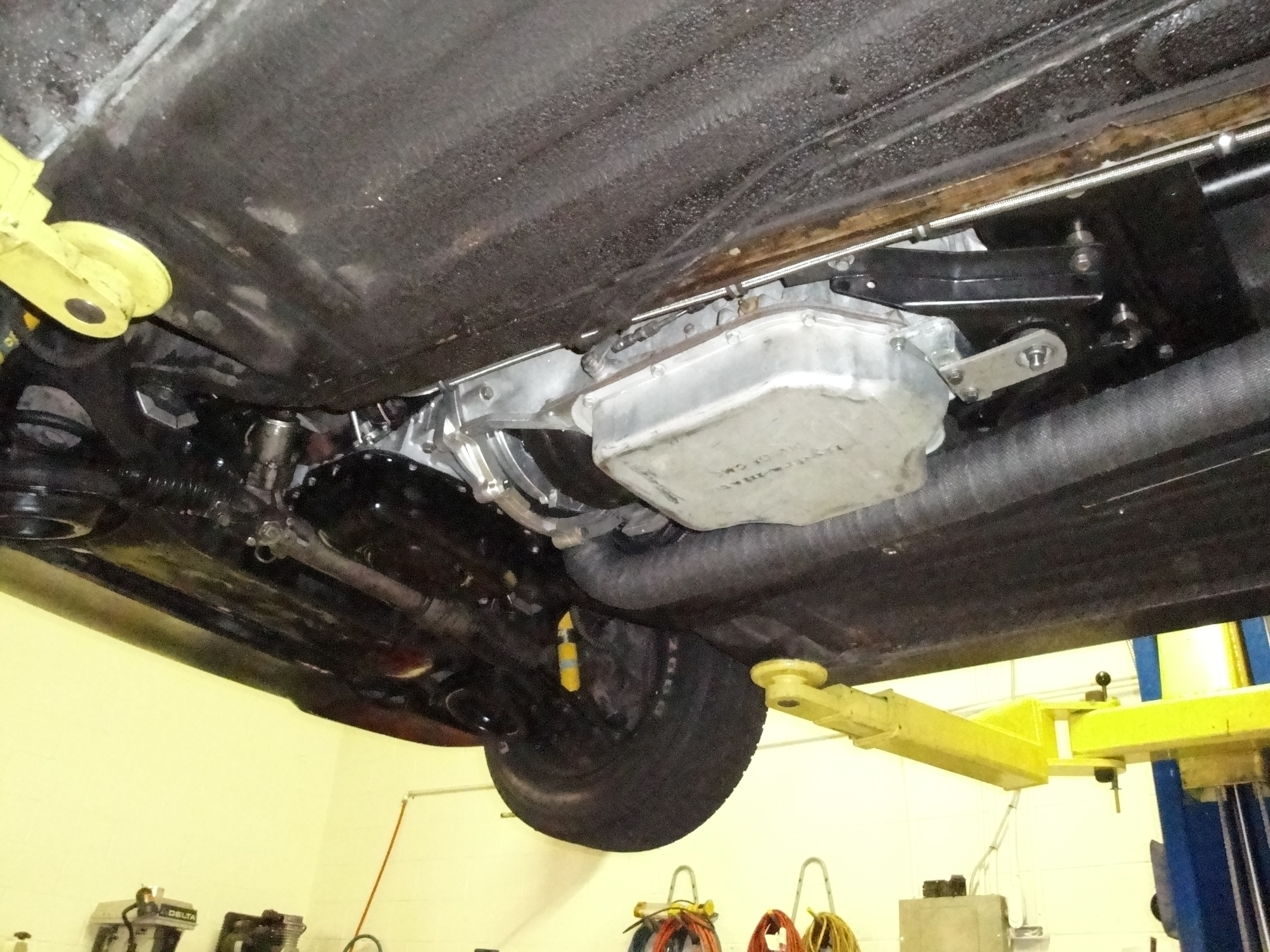

New mandrel bent 3" exhaust I made today, with 3" turbo muffler, and a simple turndown outlet. We wrapped all the piping with 2" graphite color exhaust wrap, because the piping runs pretty close to the trans and the underside of the car for the best possible ground clearance.
![Name: CIMG05201024x768.jpg
Views: 834
Size: 183.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177991d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05201024x768.jpg)
Exhaust installed, view from underneath
![Name: CIMG05241024x768.jpg
Views: 848
Size: 138.1 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177992d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05241024x768.jpg)
Here you can see how the exhaust tucks up nicely when installed.
![](http://img.photobucket.com/albums/v379/BigAaron/Jaguar%20XJS%20Project%20Car/CIMG05271024x768.jpg)
Plenty of ground clearance for engine, trans, and exhaust.
![Name: CIMG05331024x768.jpg
Views: 867
Size: 148.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177993d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05331024x768.jpg)

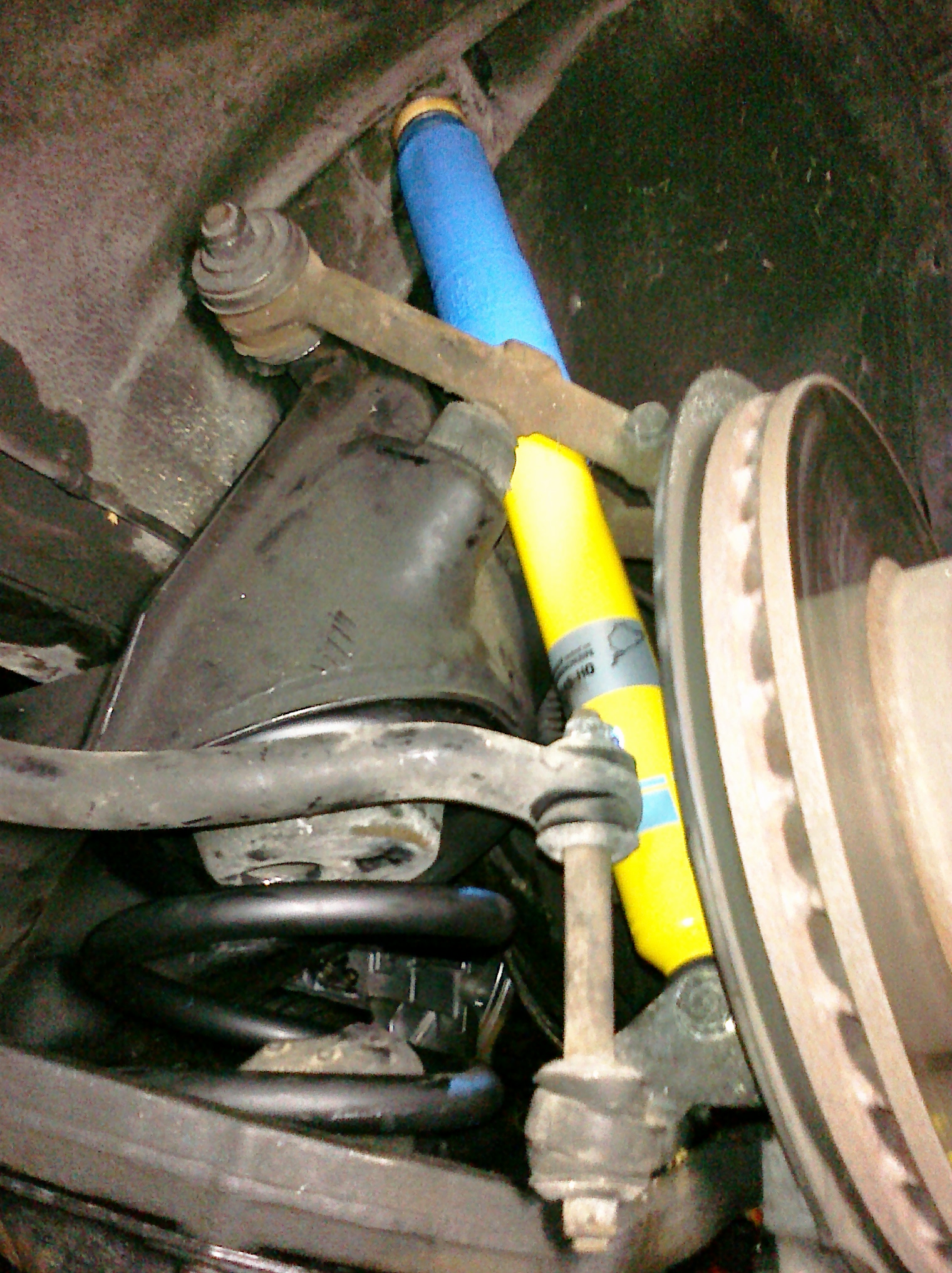

The new Bilstein shocks made a HUGE improvement in the ride quality!!!
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Last, but not least, we need to hook up and adjust the parking brakes. Since it was adjusted by the previous owner for the old worn out parking brake pads, we need to put some slack back in the cable at the handle, so that we can connect the new rear parking brake calipers with the brand new pads.
Here's some more pics!
Front view of intercooler, the hood is finally back on!
![Name: CIMG05391024x768.jpg
Views: 865
Size: 186.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177989d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05391024x768.jpg)
Side view with new ride height.
![Name: CIMG05281024x768.jpg
Views: 881
Size: 137.3 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177990d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05281024x768.jpg)
New mandrel bent 3" exhaust I made today, with 3" turbo muffler, and a simple turndown outlet. We wrapped all the piping with 2" graphite color exhaust wrap, because the piping runs pretty close to the trans and the underside of the car for the best possible ground clearance.
![Name: CIMG05201024x768.jpg
Views: 834
Size: 183.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177991d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05201024x768.jpg)
Exhaust installed, view from underneath
![Name: CIMG05241024x768.jpg
Views: 848
Size: 138.1 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177992d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05241024x768.jpg)
Here you can see how the exhaust tucks up nicely when installed.
![](http://img.photobucket.com/albums/v379/BigAaron/Jaguar%20XJS%20Project%20Car/CIMG05271024x768.jpg)
Plenty of ground clearance for engine, trans, and exhaust.
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
![Name: CIMG05331024x768.jpg
Views: 867
Size: 148.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177993d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05331024x768.jpg)
The new Bilstein shocks made a HUGE improvement in the ride quality!!!
![Name: CIMG05171024x768.jpg
Views: 870
Size: 188.4 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177994d1501299806-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg05171024x768.jpg)
Last edited by Bigaaron; 06-05-2010 at 12:53 AM.
#72
![Default](/forum/images/icons/icon1.gif)
So I finally go the exhaust done tonight and it's time to take my good buddy for a first real test drive (he's an awesome transmission mechanic!) to show him how it runs, so he can tell me the best options for the transmission mods for the new engine. I manually put it in first and it takes off like crazy as soon as the boost comes on, I shift at probably 6k rpm or so, and as it hits second gear at like 40mph it lays rubber for a good distance and then pulls hard to about 6k again, then shift to third
..... and then it cruises nicely in third at about 2.5k rpm at 70mph.
![Icon Hyper](https://www.jaguarforums.com/forum/images/smilies/icon_hyper.gif)
![Smile](https://www.jaguarforums.com/forum/images/smilies/smile.gif)
Last edited by Bigaaron; 06-05-2010 at 12:52 AM.
#75
![Default](/forum/images/icons/icon1.gif)
Thanks guys! I do have the entire V12 engine here at the shop, but the harness was in bad shape to begin with. The engine is fairly complete otherwise, I would take $200 for the whole thing. It had rod knock and a blown head gasket.
The saga continues!

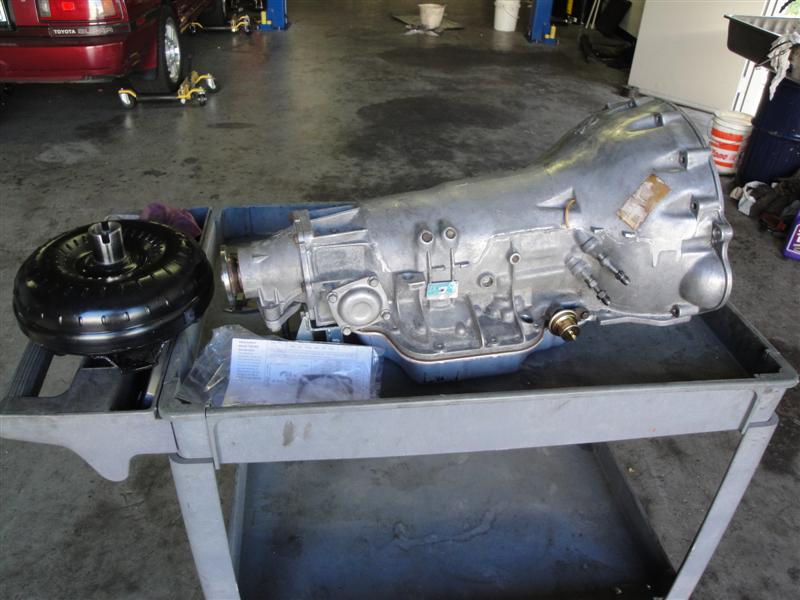

After driving the car several times it became apparent that the transmission should be looked at and the torque converter was not going to cut it at all. The stall speed with the brakes depressed at full throttle was only 1600rpm, and with an engine that makes no real power under 2500rpm, it was way too slow of the line. So we pulled out the transmission and took it over to my friend's shop, he's a transmission mechanic.
Now on to the pics!

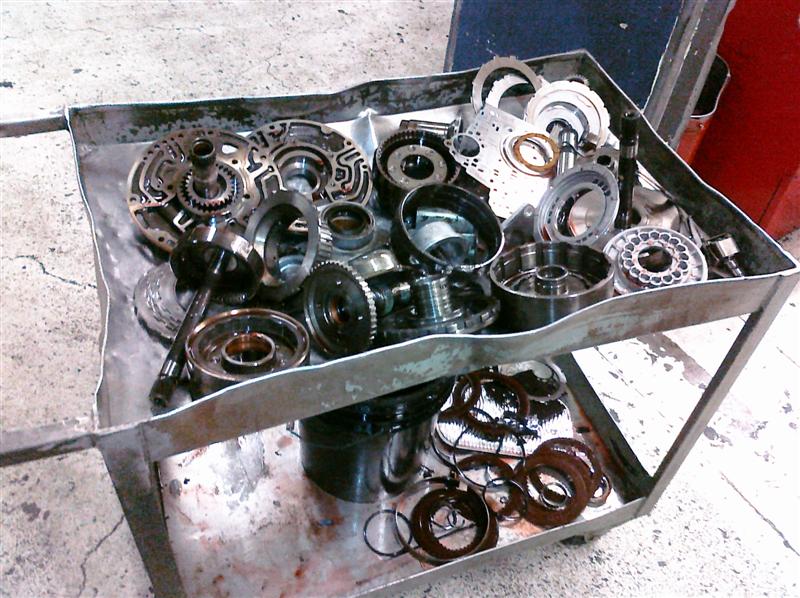

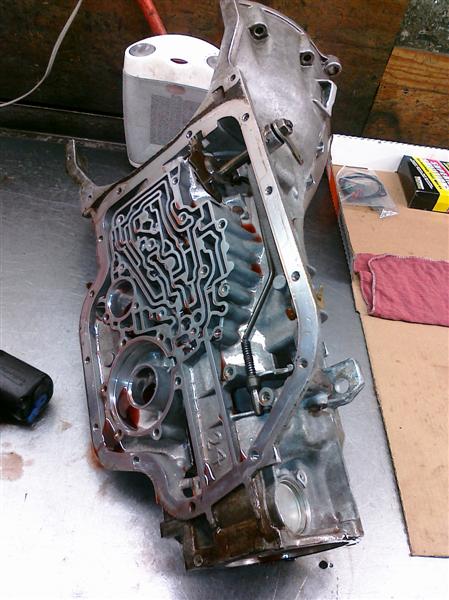

Ever wondered what was inside your XJS transmission?
![Name: CIMG0560Medium.jpg
Views: 854
Size: 144.7 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177740d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0560medium.jpg)
![Name: CIMG0559Medium.jpg
Views: 914
Size: 90.3 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177741d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0559medium.jpg)
![Name: CIMG0557Medium.jpg
Views: 851
Size: 91.4 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177742d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0557medium.jpg)

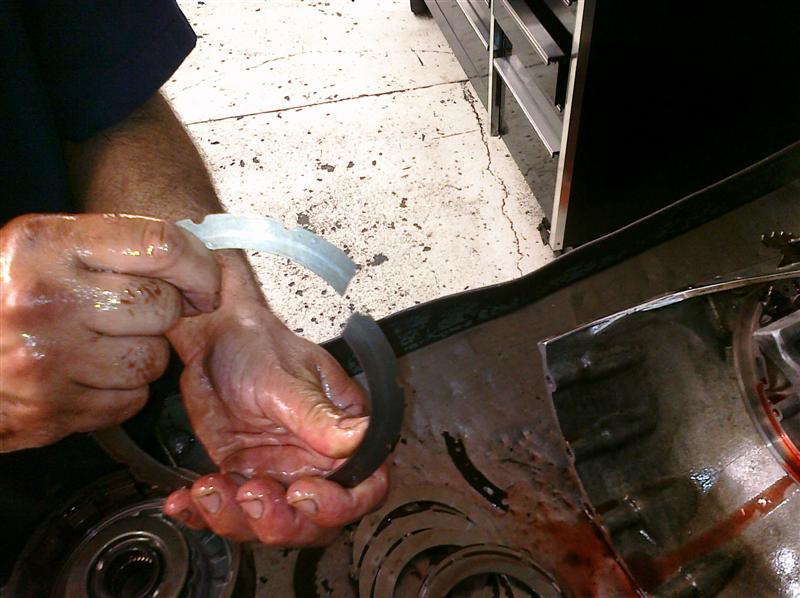

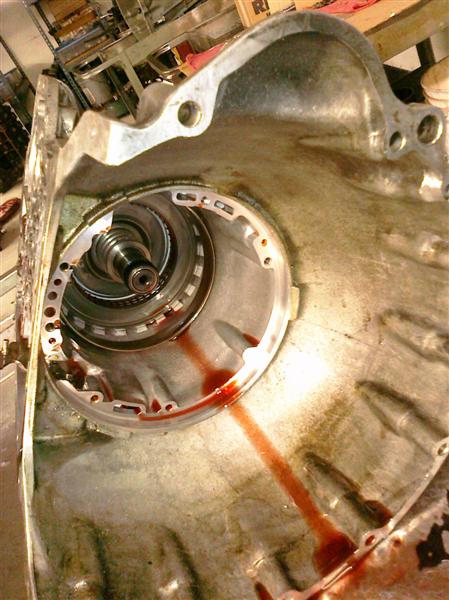

This is NOT supposed to be a snap ring! It's a broken spring washer from inside the transmission. If we had let it go any longer, it could have completely broken in two and done some major damage. We caught this in time to avoid any problems. In addition to this issue, all of the rubber parts in the transmission were hard as a rock!
![Name: CIMG0555Medium.jpg
Views: 871
Size: 98.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177743d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0555medium.jpg)

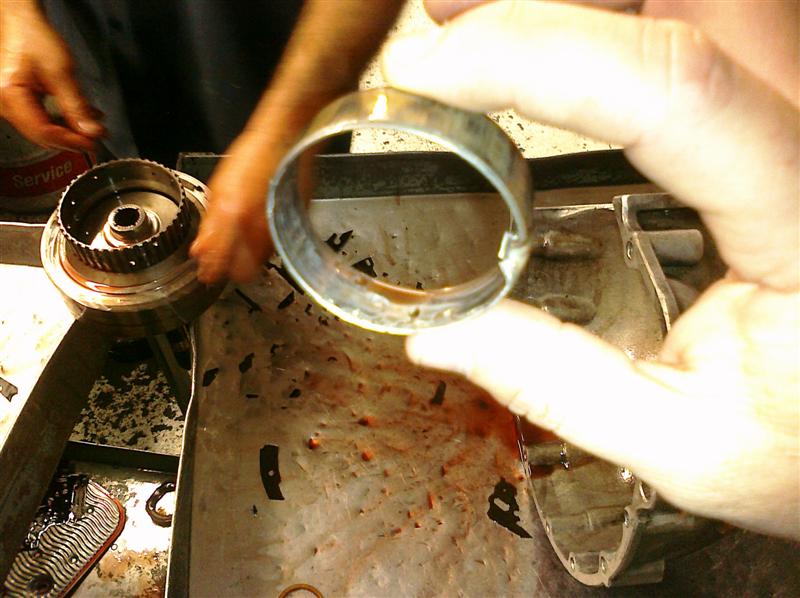

The part I'm holding on the right is a bushing that is supposed to be smooth inside, but you can see it was severely worn and had little chunks missing! Keep in mind, this transmission was otherwise very clean inside, and has only 80k miles! Makes me wonder about some people's transmissions that have a lot more miles on them!
![Name: CIMG0552Medium.jpg
Views: 866
Size: 100.9 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177744d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0552medium.jpg)

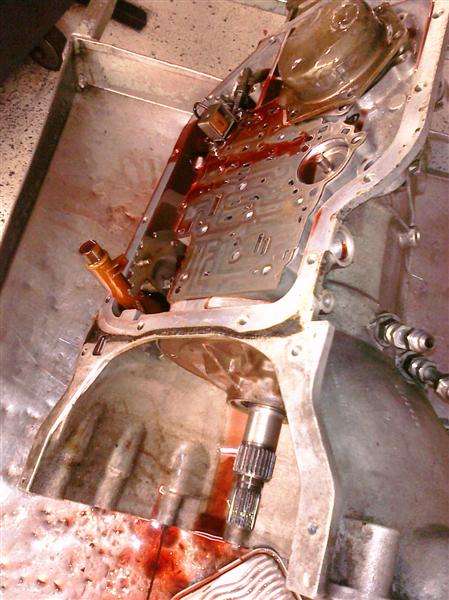

In this pic it looks like we killed it and it's bleeding![Icon Evil](https://www.jaguarforums.com/forum/images/smilies/icon_evil.gif)
![Name: CIMG0551Medium.jpg
Views: 857
Size: 93.6 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177745d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0551medium.jpg)

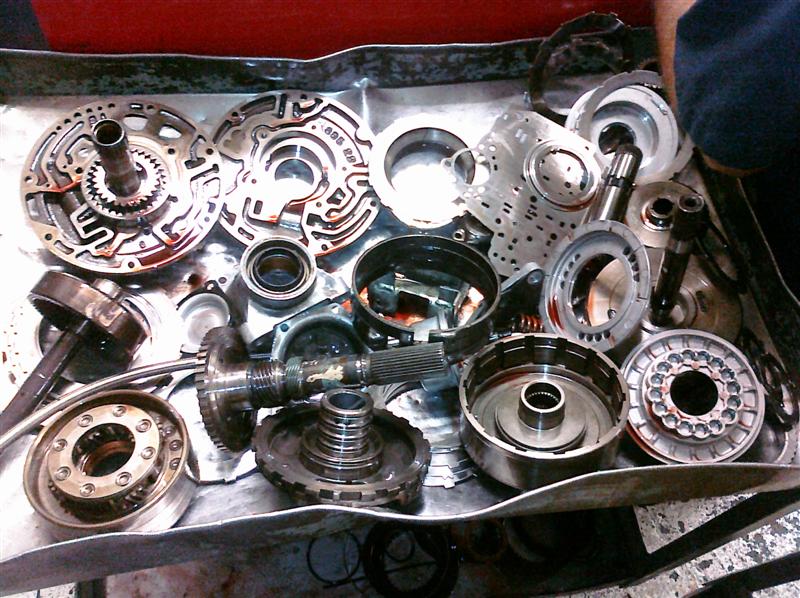

Luckily, all the hard parts were in nice shape, and it just needed freshing up. My buddy did a complete rebuild, installed a shift kit, aftermarket governor springs and weights to make it shift at a higher rpm at full throttle, an adjustable vacuum modulator to dial in the light throttle shift points, and some other internal upgrades to make the transmission last longer and handle more horsepower. I was advised by several people not to put high performance clutch packs in it, so we went with Borg Warner clutches for the rebuild.
The saga continues!
After driving the car several times it became apparent that the transmission should be looked at and the torque converter was not going to cut it at all. The stall speed with the brakes depressed at full throttle was only 1600rpm, and with an engine that makes no real power under 2500rpm, it was way too slow of the line. So we pulled out the transmission and took it over to my friend's shop, he's a transmission mechanic.
Now on to the pics!
Ever wondered what was inside your XJS transmission?
![Name: CIMG0560Medium.jpg
Views: 854
Size: 144.7 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177740d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0560medium.jpg)
![Name: CIMG0559Medium.jpg
Views: 914
Size: 90.3 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177741d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0559medium.jpg)
![Name: CIMG0557Medium.jpg
Views: 851
Size: 91.4 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177742d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0557medium.jpg)
This is NOT supposed to be a snap ring! It's a broken spring washer from inside the transmission. If we had let it go any longer, it could have completely broken in two and done some major damage. We caught this in time to avoid any problems. In addition to this issue, all of the rubber parts in the transmission were hard as a rock!
![Name: CIMG0555Medium.jpg
Views: 871
Size: 98.0 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177743d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0555medium.jpg)
The part I'm holding on the right is a bushing that is supposed to be smooth inside, but you can see it was severely worn and had little chunks missing! Keep in mind, this transmission was otherwise very clean inside, and has only 80k miles! Makes me wonder about some people's transmissions that have a lot more miles on them!
![Name: CIMG0552Medium.jpg
Views: 866
Size: 100.9 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177744d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0552medium.jpg)
In this pic it looks like we killed it and it's bleeding
![Icon Evil](https://www.jaguarforums.com/forum/images/smilies/icon_evil.gif)
![Name: CIMG0551Medium.jpg
Views: 857
Size: 93.6 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177745d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0551medium.jpg)
Luckily, all the hard parts were in nice shape, and it just needed freshing up. My buddy did a complete rebuild, installed a shift kit, aftermarket governor springs and weights to make it shift at a higher rpm at full throttle, an adjustable vacuum modulator to dial in the light throttle shift points, and some other internal upgrades to make the transmission last longer and handle more horsepower. I was advised by several people not to put high performance clutch packs in it, so we went with Borg Warner clutches for the rebuild.
![Name: CIMG0558Medium.jpg
Views: 902
Size: 147.2 KB](https://www.jaguarforums.com/forum/attachments/xjs-x27-32/177746d1501299193-project-1990-xjs-rouge-2jz-gte-engine-swap-cimg0558medium.jpg)
Last edited by Bigaaron; 06-22-2010 at 09:31 PM.
