Ronbros SDS system
#1
![Default](/forum/images/icons/icon1.gif)
Ronbros
I have started a new thread so as not further to confuse the M90 thread.
Very interested in your SDS system points, so a few questions:
Did you buy 2 x 6 cylinder systems and mount them independently?
How did you know what to set the timing to throughout the rev-range (ie advance etc. under various load conditions etc).
Do you rely on the A/F ratio meter to set the fuelling 'on the fly' or can you map it permanently?
Basically, how did you get it all to work properly, what did you retain from the factory setup?
Greg
I have started a new thread so as not further to confuse the M90 thread.
Very interested in your SDS system points, so a few questions:
Did you buy 2 x 6 cylinder systems and mount them independently?
How did you know what to set the timing to throughout the rev-range (ie advance etc. under various load conditions etc).
Do you rely on the A/F ratio meter to set the fuelling 'on the fly' or can you map it permanently?
Basically, how did you get it all to work properly, what did you retain from the factory setup?
Greg
#2
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,236 Likes
on
943 Posts
![Default](/forum/images/icons/icon1.gif)
HI, Greg, best way is Google SDS EFI, read all about it.
my system somewhat old 1994 , it was the prototype for V12 JAG, (i heard that they dont do V12 anymore)Donno.

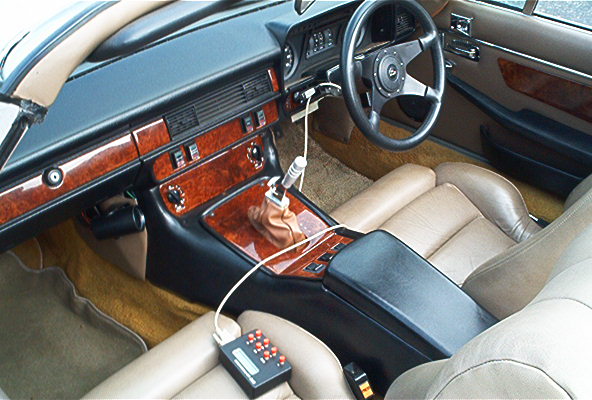

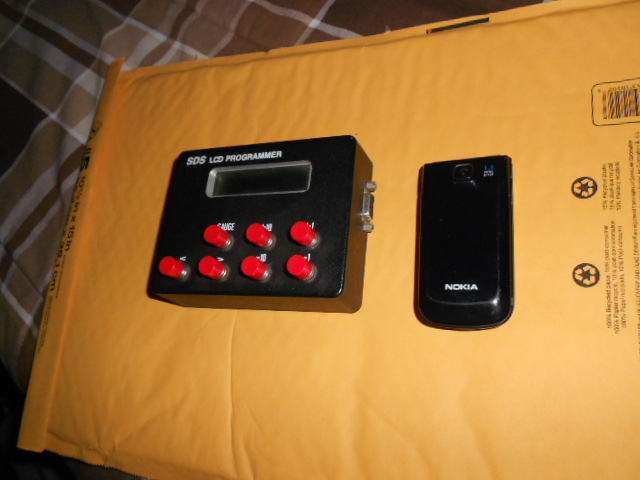

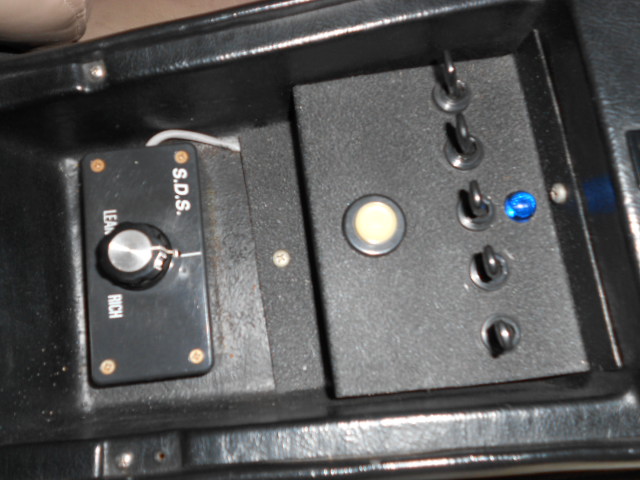

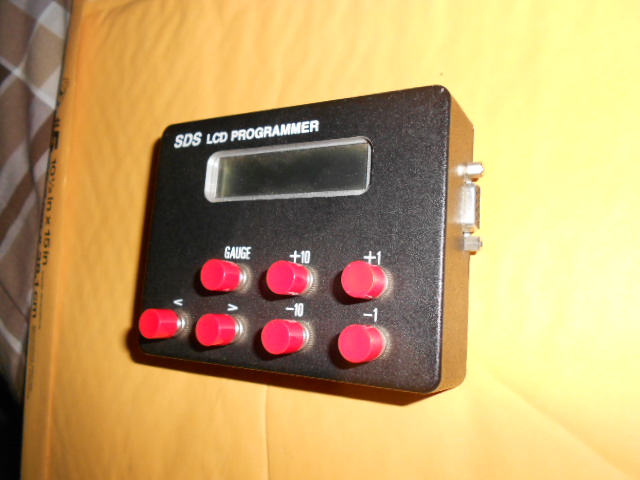

anyway i use one computor box, one program handheld control box, 2 injector driver units, for P/H injectors(Honda injs) 21#.
it came with all the wiring, sensors, plug ends.
i did not use any of the jag engine wiring,it was totaly junk, fact is most all of original wiring replaced(33yrs old),, and any LUCAS stuff is still trouble some, like head lite swt, and key ignition switch, have to wiggle sometimes, very annoying!
i use the jag dizzy for spark distribution, and Crane optical ignition trigger, housing is gutted. i actually 1996, started a crank trigger setup in conjunction with CRANE electronics & engineering, but lost interest to a MAZDA rotary project,(500hp out of 1.3L) it was fun!!
(AND NOWHERE DID I SAY THAT COMPLETE PROGRAMMING WAS SIMPLE), HEHE.
actual tuning and programming can take months,seems i'm always fiddilling with it.
and a wideband A/F gage is required, or its all guesswork! and a dyno (rolling road) can be very helpful.
i have no idea what cost is today, i'm not even sure the company has the same owner engineers!
my system somewhat old 1994 , it was the prototype for V12 JAG, (i heard that they dont do V12 anymore)Donno.
anyway i use one computor box, one program handheld control box, 2 injector driver units, for P/H injectors(Honda injs) 21#.
it came with all the wiring, sensors, plug ends.
i did not use any of the jag engine wiring,it was totaly junk, fact is most all of original wiring replaced(33yrs old),, and any LUCAS stuff is still trouble some, like head lite swt, and key ignition switch, have to wiggle sometimes, very annoying!
i use the jag dizzy for spark distribution, and Crane optical ignition trigger, housing is gutted. i actually 1996, started a crank trigger setup in conjunction with CRANE electronics & engineering, but lost interest to a MAZDA rotary project,(500hp out of 1.3L) it was fun!!
(AND NOWHERE DID I SAY THAT COMPLETE PROGRAMMING WAS SIMPLE), HEHE.
actual tuning and programming can take months,seems i'm always fiddilling with it.
and a wideband A/F gage is required, or its all guesswork! and a dyno (rolling road) can be very helpful.
i have no idea what cost is today, i'm not even sure the company has the same owner engineers!
#4
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 7,362
Received 1,236 Likes
on
943 Posts
![Default](/forum/images/icons/icon1.gif)
of interest, some EMS, that cost more than most cars, like one out of Calif. $10,000. for a dual channel, racing unit,and one channel goes down, flip a switch and another comes on line instantly, or a street mode, to switch to race mode, with completely different maps.
and YES,, producing a map for your own engine,can be a lot of time, but today,not 25yrs ago, there is a completely NEW form of engine tuners,a new kind of technician, that does only HI-performance work, going all over the world to just plug in his laptop, stroke a few keys, and make the MAGIC happen.
they demand BIG money for there services, but they have the experience, and for RICH BOYS and there TOYS, money doesnt matter,no matter what they say, or argue about.
all the tuner has to know,is the guy really serious!!!!
but not to worry, any stuff on this forum would be fairly easy.
Ron
and YES,, producing a map for your own engine,can be a lot of time, but today,not 25yrs ago, there is a completely NEW form of engine tuners,a new kind of technician, that does only HI-performance work, going all over the world to just plug in his laptop, stroke a few keys, and make the MAGIC happen.
they demand BIG money for there services, but they have the experience, and for RICH BOYS and there TOYS, money doesnt matter,no matter what they say, or argue about.
all the tuner has to know,is the guy really serious!!!!
but not to worry, any stuff on this forum would be fairly easy.
Ron
#5
![Default](/forum/images/icons/icon1.gif)
Thanks for the info RB. On the SDS website, they only do 4, 6 8 cylinders. What I really am concerned about is that if one of my two young boys are interested, the car could be around for decades, and by that time all the electronic bits to keep it going will be unavailable.
If/when funds permitted, I would love to buy a complete system, try it out and get it running properly, then box it up ready as a replacement for when needed. Maybe silly, but I can dream.
What I really want is someone to do an off the shelf, fully modern, ready programmed and mapped system that can be bolted straight on.
Greg
If/when funds permitted, I would love to buy a complete system, try it out and get it running properly, then box it up ready as a replacement for when needed. Maybe silly, but I can dream.
What I really want is someone to do an off the shelf, fully modern, ready programmed and mapped system that can be bolted straight on.
Greg
#6
![Default](/forum/images/icons/icon1.gif)
Thanks for the info RB. On the SDS website, they only do 4, 6 8 cylinders. What I really am concerned about is that if one of my two young boys are interested, the car could be around for decades, and by that time all the electronic bits to keep it going will be unavailable.
If/when funds permitted, I would love to buy a complete system, try it out and get it running properly, then box it up ready as a replacement for when needed. Maybe silly, but I can dream.
What I really want is someone to do an off the shelf, fully modern, ready programmed and mapped system that can be bolted straight on.
Greg
If/when funds permitted, I would love to buy a complete system, try it out and get it running properly, then box it up ready as a replacement for when needed. Maybe silly, but I can dream.
What I really want is someone to do an off the shelf, fully modern, ready programmed and mapped system that can be bolted straight on.
Greg
#7
![Default](/forum/images/icons/icon1.gif)
Yes. You can mount them independently.
For setting the ignition timing, look at the marks on your harmonic balancer which is generally located at pulley.
Disconnect the vacuum line going into your distributor's vacuum advance module (if so equipped) and plug the line with an old bolt or a golf tee.
Start the engine and make its speed idle and then shut it off. Connect the timing light to the spark plug wire on No. 1 cylinder.
Start the engine and point the timing light at your harmonic balancer. The light will flash in sync with the spark plug firing on that particular cylinder.
Note the balancer reading to the pointer. On the balancer, there is either a zero mark or the letter TDC.
This reading is nothing but the degrees of advance or retard, depending upon the balancer.
Turn the distributor until the degree reading on the balancer matches the amount of advance or retard specified by Jaguar.
Buy adjusting the amount of air enters into the combustion chamber, you can set the fuelling "on the fly".
You can also know how the complete Ignition System Works.
For setting the ignition timing, look at the marks on your harmonic balancer which is generally located at pulley.
Disconnect the vacuum line going into your distributor's vacuum advance module (if so equipped) and plug the line with an old bolt or a golf tee.
Start the engine and make its speed idle and then shut it off. Connect the timing light to the spark plug wire on No. 1 cylinder.
Start the engine and point the timing light at your harmonic balancer. The light will flash in sync with the spark plug firing on that particular cylinder.
Note the balancer reading to the pointer. On the balancer, there is either a zero mark or the letter TDC.
This reading is nothing but the degrees of advance or retard, depending upon the balancer.
Turn the distributor until the degree reading on the balancer matches the amount of advance or retard specified by Jaguar.
Buy adjusting the amount of air enters into the combustion chamber, you can set the fuelling "on the fly".
You can also know how the complete Ignition System Works.
