I though I'd create a separate thread with the technique that I used to to lower (3/4") the front of my car (1989 XJS):

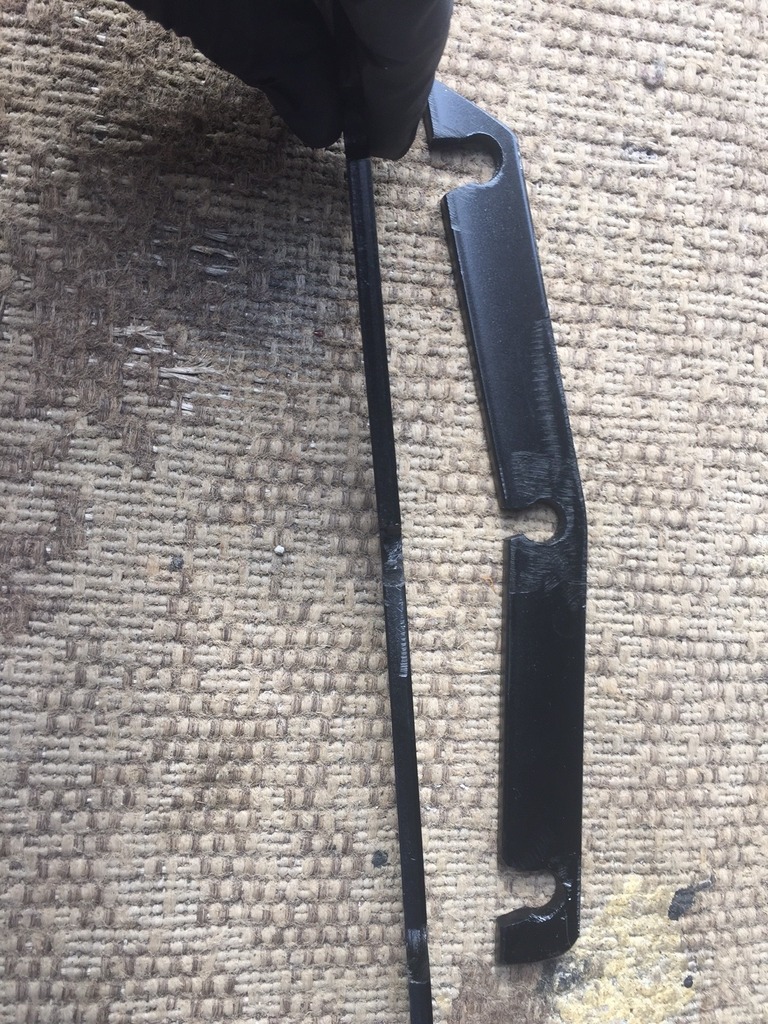

I added two 1/4" pieces of steel flat bar, bent at an angle to follow the A-arm contour on each side of A-arm. This amounted to a thickness of ~13 mm.

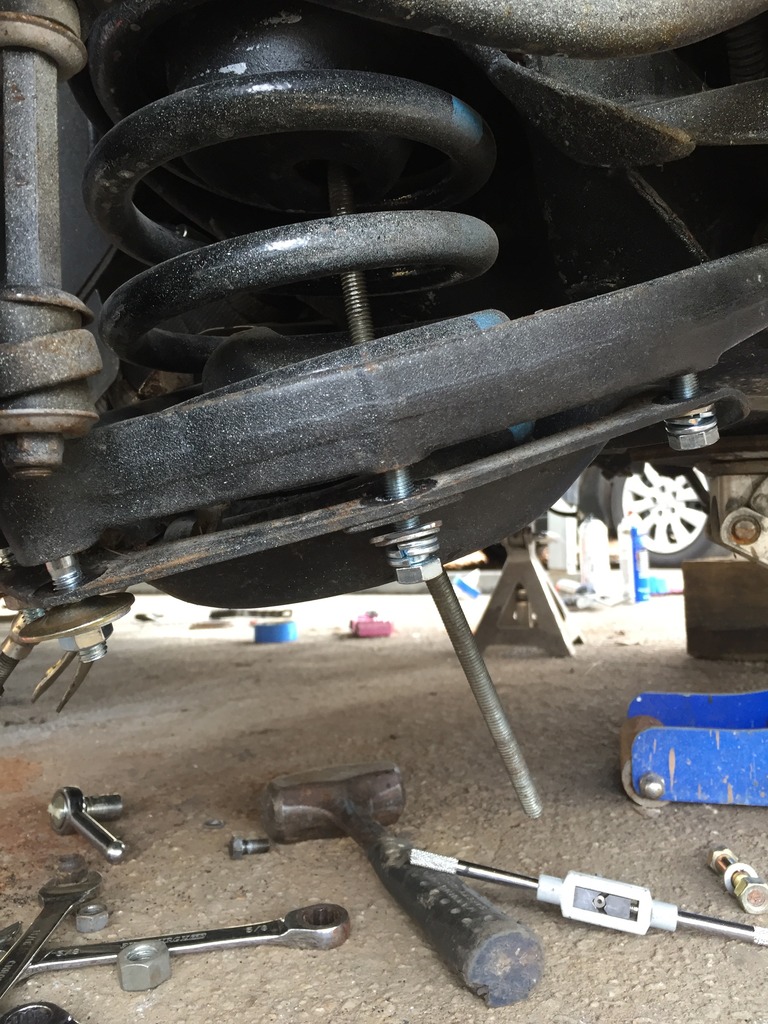

I used a threaded rod through the center of the spring to hold the spring pan in place while I replaced each original bolt with a a longer replacement bolt. I bought 1 1/2" bolts (3/8" 24 unf) but they were a tad long and needed to cut down a couple of threads to keep from bottoming out. Ideally you'd find 1 3/8" bolts (if they exist). (Ignore extra washers in pic below-this was before I shortened bolt)

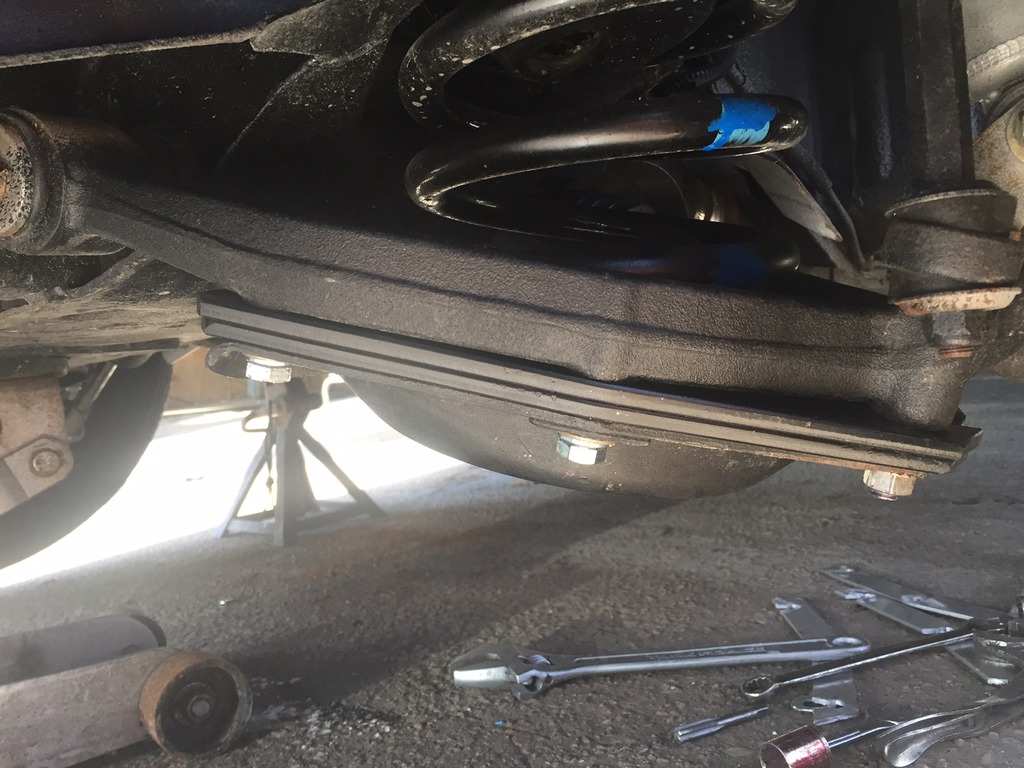

Here they are installed:

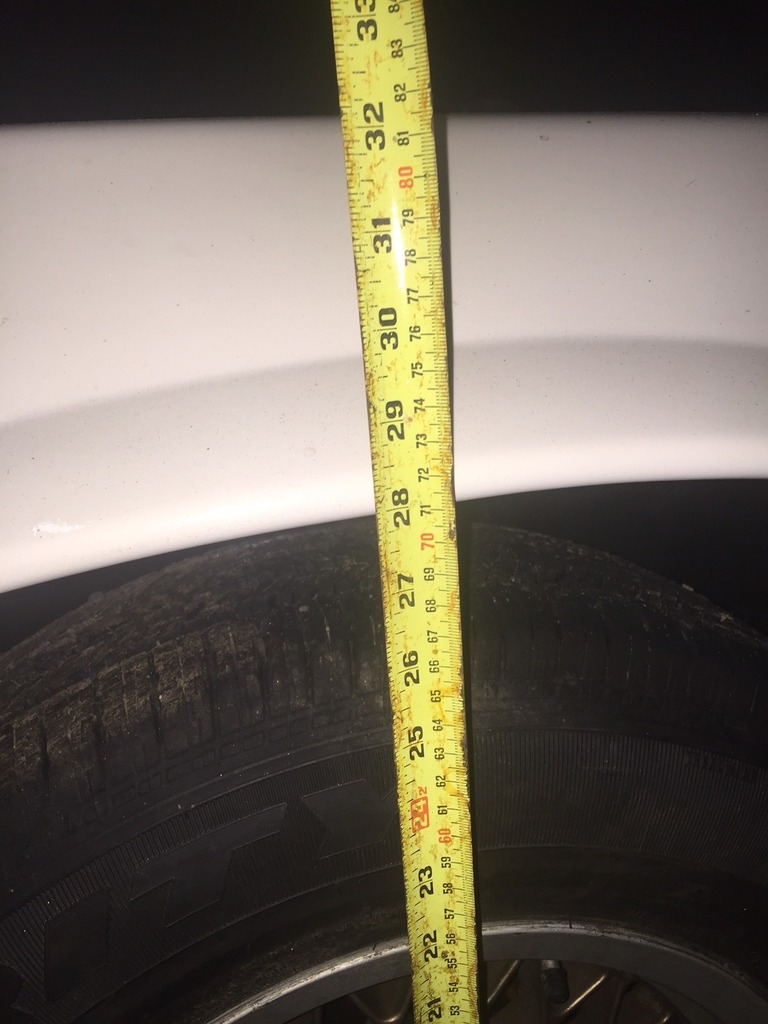

Stock driver fender measured 28" from ground to fender through centerline of tire:
Lowered 3/4":
And here is end result:
I added two 1/4" pieces of steel flat bar, bent at an angle to follow the A-arm contour on each side of A-arm. This amounted to a thickness of ~13 mm.
I used a threaded rod through the center of the spring to hold the spring pan in place while I replaced each original bolt with a a longer replacement bolt. I bought 1 1/2" bolts (3/8" 24 unf) but they were a tad long and needed to cut down a couple of threads to keep from bottoming out. Ideally you'd find 1 3/8" bolts (if they exist). (Ignore extra washers in pic below-this was before I shortened bolt)
Here they are installed:
Stock driver fender measured 28" from ground to fender through centerline of tire:
Lowered 3/4":
And here is end result:
The following 7 users liked this post by bullittandy:
dsetter (01-03-2016),
Hitch (10-20-2016),
Jonathan-W (01-04-2016),
petemohr (01-03-2016),
ronbros (01-03-2016),
and 2 others liked this post.
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,850
Received 10,906 Likes
on
7,166 Posts
#3
Lovely job. Maybe a spot of weld between the spacer and the spring pan to finish it off? Just a couple of beads to ensure the plate cannot jiggle out? Incidentally, the Allan Scott book on the racing TWR XJS says the lower the air dam to the road the more that front end lift is reduced, so lowering does not only make it look better, it makes it handle better at speed too.
Greg
Greg
The following users liked this post:
Spyhunter2k (03-13-2021)
#4
don't see why I just could not use SS-steel washers... there is a gap already... the bar stock just seems... well I don't know...
yes it would be more open... and any water would just flow out and not be trapped... I live where there is no road salt... snow excetra... just rain now and again...
yes it would be more open... and any water would just flow out and not be trapped... I live where there is no road salt... snow excetra... just rain now and again...
Last edited by Jonathan-W; 01-04-2016 at 08:27 AM.
#5
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,850
Received 10,906 Likes
on
7,166 Posts
The following users liked this post:
ronbros (01-05-2016)
#6
I tend to agree with Doug. I think it would be a safer idea to weld onto the spring pan about a one inch wide spacer piece with a carefully sized drilled hole for the bolt, so the bolt was not loose in the hole. Also, when I redid mine (as standard) I bought high tensile bolts for a bit more peace of mind, although this is not necessary at all.
Greg
Greg
The following users liked this post:
ronbros (01-05-2016)
#7
I tend to agree with Doug. I think it would be a safer idea to weld onto the spring pan about a one inch wide spacer piece with a carefully sized drilled hole for the bolt, so the bolt was not loose in the hole. Also, when I redid mine (as standard) I bought high tensile bolts for a bit more peace of mind, although this is not necessary at all.
Greg
Greg
I did all those on my Sprite and the best solution was the lowered racing springs...
for the rear they sell shocks with a threaded spring seats that is used to set the rear end height.... 4 required...
what height is it supposed to be? I think my conv. is too low....
Last edited by Jonathan-W; 01-05-2016 at 10:33 AM.
Trending Topics
#8
Or you could just $UP and save up for the higher rate lowered spring set...
I did all those on my Sprite and the best solution was the lowered racing springs...
for the rear they sell shocks with a threaded spring seats that is used to set the rear end height.... 4 required...
what height is it supposed to be? I think my conv. is too low....
I did all those on my Sprite and the best solution was the lowered racing springs...
for the rear they sell shocks with a threaded spring seats that is used to set the rear end height.... 4 required...
what height is it supposed to be? I think my conv. is too low....
#10
Ron, I think it will settle a great deal once in use. I think Andy will find he has lowered it quite a bit once it starts being used. I still think Andy, that your spacers should be welded to the spring pan though! After all, as we all know, what can go wrong, will go wrong, and having one pop out at the wrong time would be pretty bad!
On another topic from Jonathan, I think Andy has done the right thing to lower the car but not stiffen the springs. It is very hard to keep a decent ride quality on shortened springs.
Greg
On another topic from Jonathan, I think Andy has done the right thing to lower the car but not stiffen the springs. It is very hard to keep a decent ride quality on shortened springs.
Greg
#11
#12
This method of lowering the car was once pretty common on cars that had a the spring seat cup on the bottom. usually the spacers were even thicker. I think this is a good way to lower the car a bit without making the ride too harsh. I would just keep an eye on the rubber suspension stops. I would imagine the car might bottom out more often than normal.
The following users liked this post:
ronbros (01-10-2016)
#13
The following users liked this post:
ronbros (01-07-2016)
#14
Hi I have just purchased a set of low front springs, they claim to have a 30mm lower ride height. As Rivguy mentioned I'm worried about the bump stops being to close now. Has anyone had any experience with this? Can you get shorter lower bump stops, or should I trim the Stock ones?
Cheers.
Cheers.
#15
hi if you can find the front and rear springs from a mid to late 1985 -1989 XJS 3.6 sport these are a lot stiffer and a little lower than standard. I used these in my race car back in 203.I also used 10mil spacers made for each bolt this way they can not slip out.I also found because of the suspention geometry 10mil spacer actuatley lowered the car about 18mils cheers Ray.
#16
Lowering spacers
This is a very timely thread. I’m interested in lowering the front of my 1986 XJ-S V-12 Car I recently bought.
Can I ask why the holes are slotted? I understand you used the center bolt with a piece of all thread to hold the spring in place so the center hole may have to be slotted. But couldn’t the forward and aft holes be not slotted and just remove one at a time, install the longer bolt and then the next?
also did this effect your alignment?
Can I ask why the holes are slotted? I understand you used the center bolt with a piece of all thread to hold the spring in place so the center hole may have to be slotted. But couldn’t the forward and aft holes be not slotted and just remove one at a time, install the longer bolt and then the next?
also did this effect your alignment?
Last edited by Lotahp1; 11-14-2017 at 05:22 PM. Reason: Adding question
#17
This is a very timely thread. I’m interested in lowering the front of my 1986 XJ-S V-12 Car I recently bought.
Can I ask why the holes are slotted? I understand you used the center bolt with a piece of all thread to hold the spring in place so the center hole may have to be slotted. But couldn’t the forward and aft holes be not slotted and just remove one at a time, install the longer bolt and then the next?
also did this effect your alignment?
Can I ask why the holes are slotted? I understand you used the center bolt with a piece of all thread to hold the spring in place so the center hole may have to be slotted. But couldn’t the forward and aft holes be not slotted and just remove one at a time, install the longer bolt and then the next?
also did this effect your alignment?
I think I slotted them in order to keep as many bolts in as possible (during install) to ensure that the spring pan stayed aligned. You could simply have holes (not slots) and see if you can get the bolts started. I recall it being kinda tricky because of the fine threads and weird angle that the spring pan bolts enter the lower control arm.
The suspension did settle some more and the stance is perfect. Ride stayed nice too.
#18
Lowering a car will affect alignment settings. Even with double wishbone camber does not stay constant through the full bump and rebound, toe will also be affected to some extent.
Anytime the suspension is changed it's a good idea to check alignment. I have 245 50 16's on the front and I have had to play with alignment settings to reduce tramlining. With the 215 65 15's I ran Zero toe I have had to increase toe in with the wide tyres to reduce wandering.
Anytime the suspension is changed it's a good idea to check alignment. I have 245 50 16's on the front and I have had to play with alignment settings to reduce tramlining. With the 215 65 15's I ran Zero toe I have had to increase toe in with the wide tyres to reduce wandering.
The following users liked this post:
ronbros (11-19-2017)
