Update time:
I received the touchscreen yesterday an installed this morning.
The Fakra connector still hasn't come in and I've yet to order a camera, but thought I would test the touchscreen swap.
Mixed news. After the install, I did a hard reset on the battery which was already disconnected. Upon starting the car.
All features work EXCEPT climate. Initially it didn't display properly. The second time I started the car, the buttons appear but are grayed out.
The seat heater and steering wheel heat function worked both times. The Auto button works, the off button does nothing.
I received the touchscreen yesterday an installed this morning.
The Fakra connector still hasn't come in and I've yet to order a camera, but thought I would test the touchscreen swap.
Mixed news. After the install, I did a hard reset on the battery which was already disconnected. Upon starting the car.
All features work EXCEPT climate. Initially it didn't display properly. The second time I started the car, the buttons appear but are grayed out.
The seat heater and steering wheel heat function worked both times. The Auto button works, the off button does nothing.
I wonder if the new screen needs to be initialized somehow, maybe through IDS? Or maybe the climate control protocols are different? Do the hard buttons still work such as fan speed, temp, recirc?
EDIT: Also all NAV and audio and car settings work 100%?
Last edited by jahummer; 12-08-2016 at 02:17 PM.
#44
Join Date: Jan 2015
Location: Naperville, Illinois USA
Posts: 4,676
Received 2,012 Likes
on
1,345 Posts
If a man is standing in the middle of a forest speaking & there is no woman around to hear him, is he still wrong? - George Carlin
#45
The seat warmers are working. The steering wheel heat flashes color briefly, then returns but the steering wheel does start to heat.
The vents and A/C are still grayed out.
When I touch the off button on climate it changes color briefly but doesn't do anything else.
If I can get some help figuring out the climate, the other features are kind of cool. There are some additional pics to select in off mode, in addition to the Jaguar and the clock.
You can pick a blue or green color scheme
My phone book was completely visible.
Yes I had phone signal strength with the upgrade of the BT module.
Nav worked to the degree that I tested it which was just to confirm my current location (map on and showed correct)
All audio worked, including FM (didn't try AM), CD and iPod.
I connected to IDS but had no specific codes related to climate and I'm not sure what to try next. I will however, reconnect my OEM screen to see if it still works.
Steve, Cambo, any ideas you can steer me to try with IDS?
I'm hoping this isn't some differentiation between the information control module(XF) and the infotainment control module (XK)
The following users liked this post:
jahummer (12-08-2016)
#46
#47
Although the climate control system between the two appears to be more or less the same components, the climate control modules in the XK & XF have different part numbers which tells me different software...
Where to from here?
Either give up, or we have to dig deeper into the Climate Control Module... but if it's a case of having to swap the Climate Control Module as well, this is way too much stuffing around to get a bloody reverse camera working...
Where to from here?
Either give up, or we have to dig deeper into the Climate Control Module... but if it's a case of having to swap the Climate Control Module as well, this is way too much stuffing around to get a bloody reverse camera working...
The following users liked this post:
jahummer (12-08-2016)
#48
I'd hate to give up now as I'm kind of liking the other screen functions (most specifically phone directory which I use a lot) I can get a module on the cheap if that's all it takes but I'd like to explore another option, unless the quickest and safest route is to swap the CCM.
I received two DTC's
U300055
Control Module
Incorrect car configuration data received
Re-configure the RJB using the manufacturer approved diagnostic system. Clear DTC and re-test. If the DTC remains suspect the climate control module. Check and install a new module as required, refer to the new module/component installation note at the top of the DTC Index
U300087
Control Module
Missing message
Re-configure the RJB using the manufacturer approved diagnostic system. Check climate control module for DTCs and refer to the DTC Index. Carry out CAN network integrity tests using the manufacturer approved diagnostic system. If DTC remains suspect the climate control module. Check and install a new module as required, refer to the new module/component installation note at the top of the DTC Index
So how does one go about reconfiguring the rear junction box vis IDS/SSD?
Is this too risky to a point of no return on the vehicle? I don't want to brick anything obviously, but still willing to try to make it work.
I received two DTC's
U300055
Control Module
Incorrect car configuration data received
Re-configure the RJB using the manufacturer approved diagnostic system. Clear DTC and re-test. If the DTC remains suspect the climate control module. Check and install a new module as required, refer to the new module/component installation note at the top of the DTC Index
U300087
Control Module
Missing message
Re-configure the RJB using the manufacturer approved diagnostic system. Check climate control module for DTCs and refer to the DTC Index. Carry out CAN network integrity tests using the manufacturer approved diagnostic system. If DTC remains suspect the climate control module. Check and install a new module as required, refer to the new module/component installation note at the top of the DTC Index
So how does one go about reconfiguring the rear junction box vis IDS/SSD?
Is this too risky to a point of no return on the vehicle? I don't want to brick anything obviously, but still willing to try to make it work.
The following users liked this post:
jahummer (12-08-2016)
#49
How difficult and costly would it be to do? I didn't look up the price but sometimes it's not about cost or difficultly but about just being able to do it.

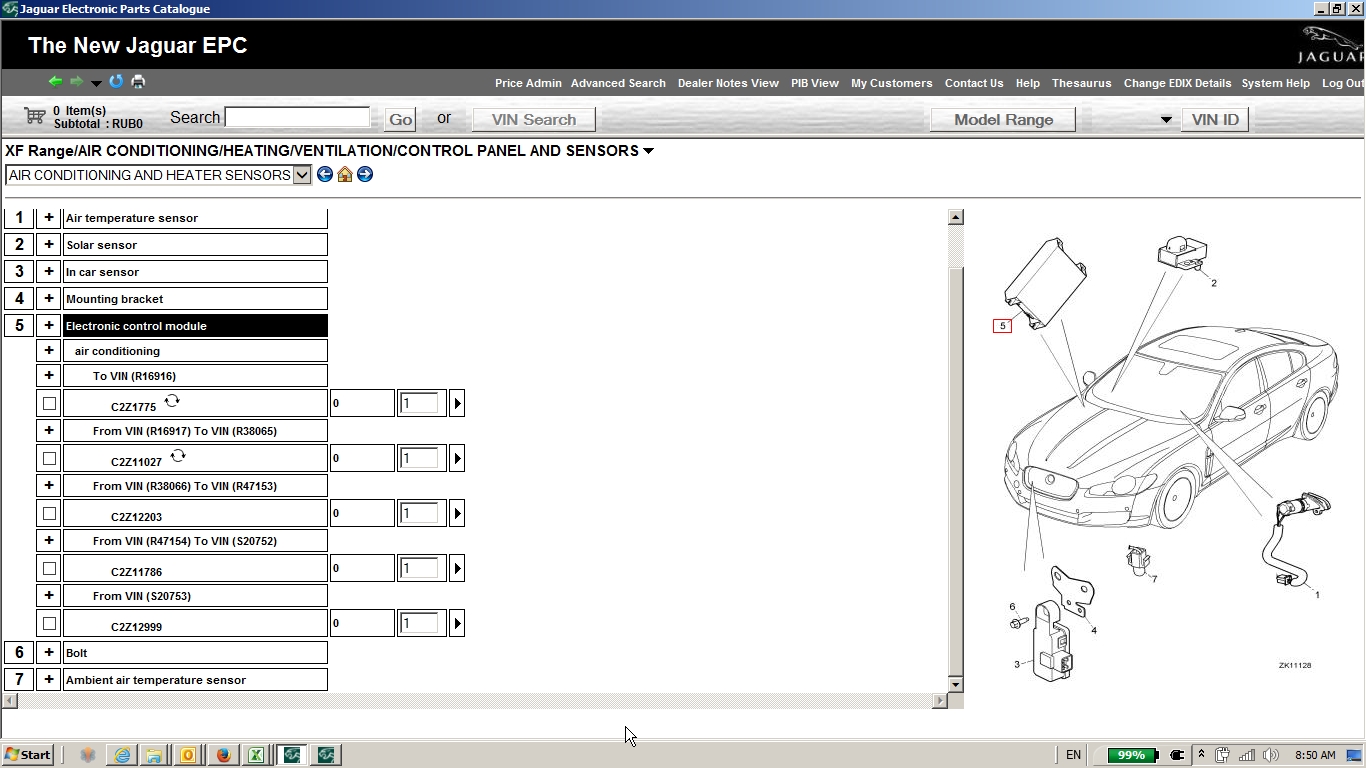

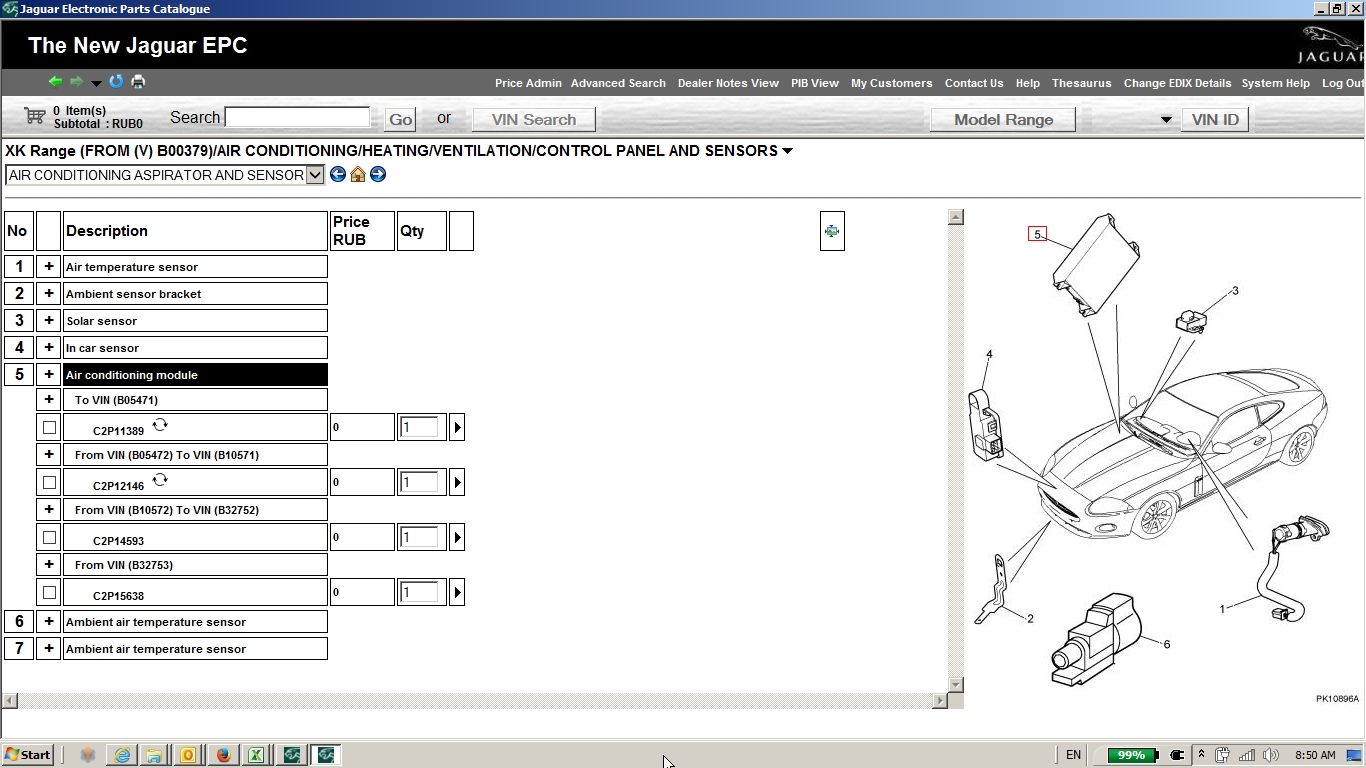

Although the climate control system between the two appears to be more or less the same components, the climate control modules in the XK & XF have different part numbers which tells me different software...
