Coolant tank pipe connector - what a PITA!
#1
Coolant tank pipe connector - what a PITA!
I needed to replace the coolant return pipe - the one that connects the expansion tank to the supercharger manifold. Sourced the correct part (£26) but could I get the connector to go over the spigot on the supercharger manifold? No I couldn't!
I could get the plastic insert and 2 rubber o-rings inside the spigot but just could not get the clips to engage and ended up fracturing the connector at the elbow
I've managed a decent lash up and ordered another pipe.
Is there some special tool/technique required to get these connectors on? I noticed a sprinkling of them throughout the engine bay.
Steve
I could get the plastic insert and 2 rubber o-rings inside the spigot but just could not get the clips to engage and ended up fracturing the connector at the elbow
I've managed a decent lash up and ordered another pipe.
Is there some special tool/technique required to get these connectors on? I noticed a sprinkling of them throughout the engine bay.
Steve
#3

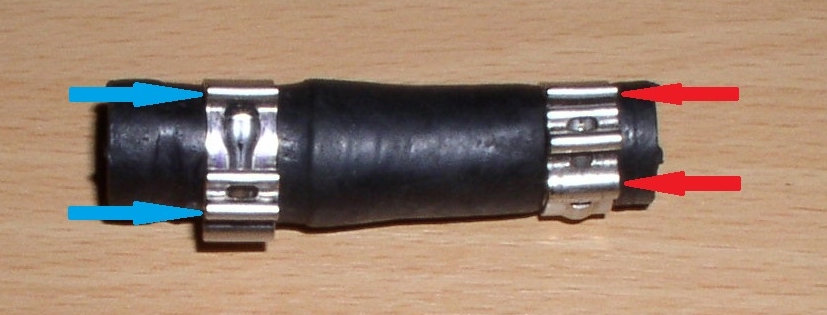

Is it this type of Norma Clip giving you trouble?
If so, there is a special tool but a pair of pliers works just as well.
1. squeeze the two 'shoulders' arrowed in red together to release
2. squeeze the two 'shoulders' arrowed in blue together to close
The factory use these because they are quick to fit and give a constant pressure unlike worm drive (Jubilee Clips) which can easily be overtightened and shatter plastic cooling system components.
Graham
If so, there is a special tool but a pair of pliers works just as well.
1. squeeze the two 'shoulders' arrowed in red together to release
2. squeeze the two 'shoulders' arrowed in blue together to close
The factory use these because they are quick to fit and give a constant pressure unlike worm drive (Jubilee Clips) which can easily be overtightened and shatter plastic cooling system components.
Graham
#4
Is it this type of Norma Clip giving you trouble?
Attachment 94118

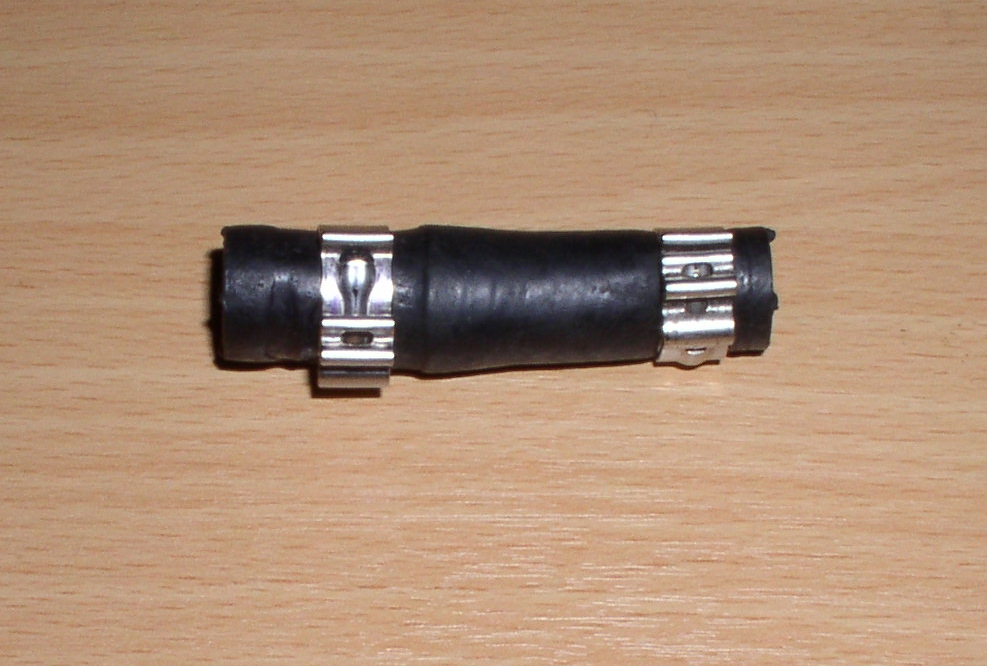

If so, there is a special tool but a pair of pliers works just as well.
Attachment 94119
1. squeeze the two 'shoulders' arrowed in red together to release
2. squeeze the two 'shoulders' arrowed in blue together to close
The factory use these because they are quick to fit and give a constant pressure unlike worm drive (Jubilee Clips) which can easily be overtightened and shatter plastic cooling system components.
Graham
Attachment 94118
If so, there is a special tool but a pair of pliers works just as well.
Attachment 94119
1. squeeze the two 'shoulders' arrowed in red together to release
2. squeeze the two 'shoulders' arrowed in blue together to close
The factory use these because they are quick to fit and give a constant pressure unlike worm drive (Jubilee Clips) which can easily be overtightened and shatter plastic cooling system components.
Graham
No, I can/have sorted those. The one that screwed me up connects the small bore plastic pipe to the top of the supercharger manifold. There is a central plastic spigot with 2 rubber O rings - this pushes into the centre of the manifold spigot. The problem is that it is secured by an integral plastic clip that pushes over a notch on the outside of the spigot and I just cannot get it in far enough to engage.

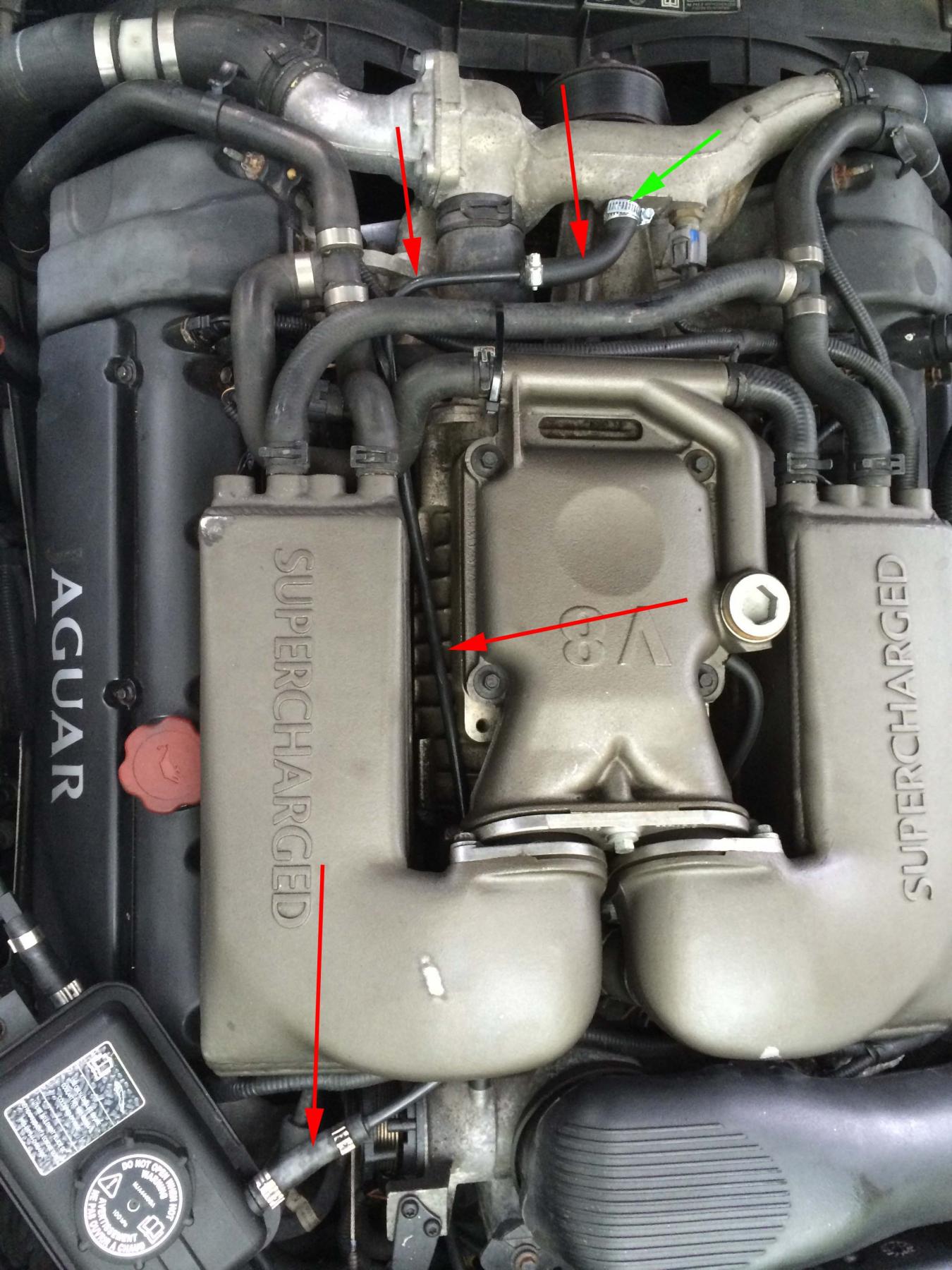

The photo shows my "lash up" repair. The green arrow points to where the offending connector/clip goes but I have had to make do with pushing a piece of hose over and using a jubilee clip. I can't find a photo of the part but this link to eBay shows a pipe with the connector I mean JAGUAR XJ8 X308 1997-2002 COOLANT TANK HOSE PIPE | eBay
Steve
Last edited by worrasf; 08-25-2014 at 10:50 AM.
