Custom Hub Holding Tool
#1
Custom Hub Holding Tool
Yup - time to change a front wheel bearing.
I'm trying to design a hub holding tool that's compatible with the rest of my resources. Open the attached document to see a simple diagram. It'll be made of 1/4" steel welded into an angle iron. There'll only be two holes for the wheel studs and it will have two triangular gussets just beyond the holes to prevent twisting. I'll place this into a very stout vise with the gusset right up against the vise jaw.
I'm open to suggestion as to whether this will handle the load of removing the ABS "nut" or should I double up the steel? Also: would only using two wheel studs risk damage to the studs themselves? Any other ideas are welcome too!
As always: THANKS!
I'm trying to design a hub holding tool that's compatible with the rest of my resources. Open the attached document to see a simple diagram. It'll be made of 1/4" steel welded into an angle iron. There'll only be two holes for the wheel studs and it will have two triangular gussets just beyond the holes to prevent twisting. I'll place this into a very stout vise with the gusset right up against the vise jaw.
I'm open to suggestion as to whether this will handle the load of removing the ABS "nut" or should I double up the steel? Also: would only using two wheel studs risk damage to the studs themselves? Any other ideas are welcome too!
As always: THANKS!
#2

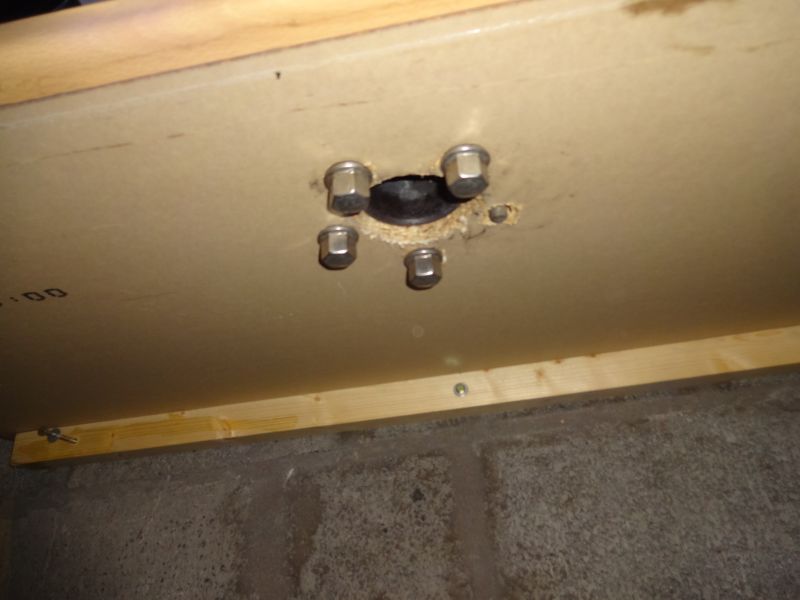

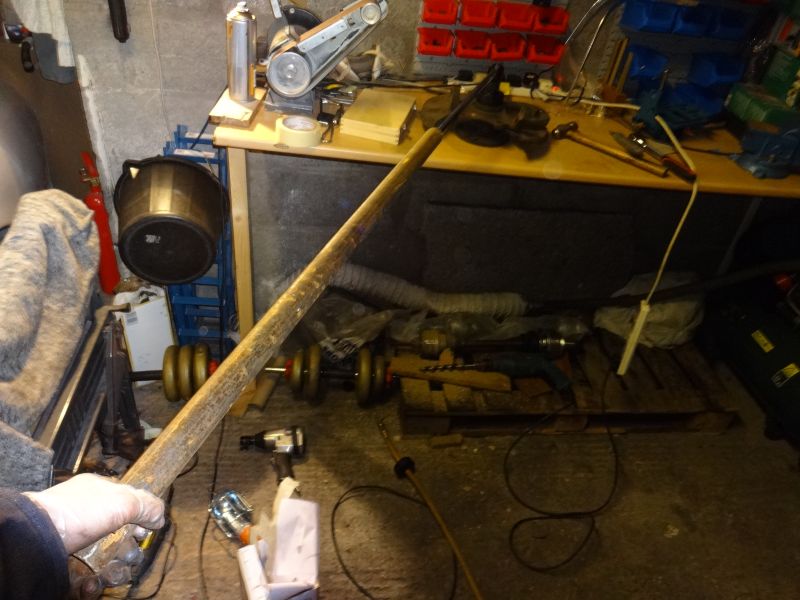

In theory it would hold it however you might risk bending the studs, you would need to have the plate right up against the hub face...... What I do is have 3 aluminium tubes, about 1" o/d with a 1/2 i/d each one has a flat milled on them which slides over the studs, the flats then sit against your vice jaws. I have done it many times like this without issue and very simple to make
#4
Thanks guys. The alluminum tube thing sounds interesting. Not sure where I'd find the 1/4" thick tubing though. I love the work bench idea, but the only hydraulic press I have access to is in a Navy work shop. I really shouldn't go drilling holes in government property. Only politicians are authorized to be so irresponsible!
#6
#7
Look at the attached photo to see what I did when I changed my front bearings. Fortunately I was also putting on new front rotors at the same time so this was a no brainer.
I cut the edges off of one of my used rotors with a metal band saw. I had access to one in a friend's shop but any machine shop could do this easily for you.
Then it was a simple matter to secure the used rotor in a large workbench vise and attach the hub to it using the lug nuts. It wasn't going anywhere.
I cut the edges off of one of my used rotors with a metal band saw. I had access to one in a friend's shop but any machine shop could do this easily for you.
Then it was a simple matter to secure the used rotor in a large workbench vise and attach the hub to it using the lug nuts. It wasn't going anywhere.
