Fitting 2004 xk8 stereo into 1997 xk8
#1
#2
![Default](/forum/images/icons/icon1.gif)
It won't be straightforward.
Have you got the "premium" or the "standard" kit ?
Early (Harmon Karden) premium kit has the CD player wired back to the head unit, whereas the later Alpine system has the CD player connected directly to the amplifier in the boot. Connectors are totally different - look at the later unit and there may be a little changeover switch on the head unit marked standard/premium.

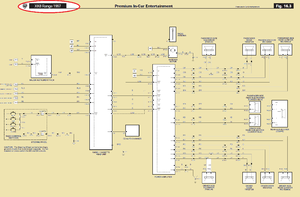

Everything is possible, but (particularly if it's the premium system) - it is quite complicated and you will need both wiring diagrams to try and identify all the correct wires.
Have you got the "premium" or the "standard" kit ?
Early (Harmon Karden) premium kit has the CD player wired back to the head unit, whereas the later Alpine system has the CD player connected directly to the amplifier in the boot. Connectors are totally different - look at the later unit and there may be a little changeover switch on the head unit marked standard/premium.
Everything is possible, but (particularly if it's the premium system) - it is quite complicated and you will need both wiring diagrams to try and identify all the correct wires.
#3
![Default](/forum/images/icons/icon1.gif)
AFAIK you can only use the components of one brand together, will say, if you have the old HK AMP and/or the CD-changer in the trunk, these will not work with the new Alpine-HU - due to the different bus-systems.
The connection between the Audio-Components is for the newer Alpine-HU done with a single AI-Net cable from HU to trunk, not much of a problem to additional route this, I think. BTW: You can buy every AI-Net cable with the proper length and socket-variant, there is no difference between Jaguar and Alpine.
The connection's for the speakers should be no problem, also the ones for the special signals (lighting, speed) from the car's electronic to the HU seem nearly the same from a rush look-over. I think, you may have to adapt some contacts on the connector to the HU (Nice thing with the AMP-multilock connectors: You can remove a single contact with a special tool or a micro-plier and put it on another position, so rewiring is easy).
The resistors for the Buttons in the steering-wheel column must be checked for compatibility - or exchange the column.
When it comes to the built-in phone, I can't even guess...
Do you have the electrical guide for your car?
Sorry for the good broken english
, greetings from Germany & have a nice new year!
Wolf
The connection between the Audio-Components is for the newer Alpine-HU done with a single AI-Net cable from HU to trunk, not much of a problem to additional route this, I think. BTW: You can buy every AI-Net cable with the proper length and socket-variant, there is no difference between Jaguar and Alpine.
The connection's for the speakers should be no problem, also the ones for the special signals (lighting, speed) from the car's electronic to the HU seem nearly the same from a rush look-over. I think, you may have to adapt some contacts on the connector to the HU (Nice thing with the AMP-multilock connectors: You can remove a single contact with a special tool or a micro-plier and put it on another position, so rewiring is easy).
The resistors for the Buttons in the steering-wheel column must be checked for compatibility - or exchange the column.
When it comes to the built-in phone, I can't even guess...
Do you have the electrical guide for your car?
Sorry for the good broken english
![Icon Smile](https://www.jaguarforums.com/forum/images/smilies/icon_smile.gif)
Wolf
#4
![Default](/forum/images/icons/icon1.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
![Icon Banana](https://www.jaguarforums.com/forum/images/smilies/icon_banana.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
Any questions , just ask
Last edited by Lady Penelope; 12-28-2017 at 12:53 AM.
#5
![Default](/forum/images/icons/icon1.gif)
Hi All,
My initial question was actually regarding the slots. I mean, how should i fit the one on the left with the one on the right? I thought that everything fits in terms of wiring and connections.
I got the base sound system, 4 speakers that i've replaced with A medium line from Focal. They were bolt-on.
Don't think i have an amplifier, other than the HU itself. Will check and see. But my question was primarily regarding the slot.
Thank you
My initial question was actually regarding the slots. I mean, how should i fit the one on the left with the one on the right? I thought that everything fits in terms of wiring and connections.
I got the base sound system, 4 speakers that i've replaced with A medium line from Focal. They were bolt-on.
Don't think i have an amplifier, other than the HU itself. Will check and see. But my question was primarily regarding the slot.
Thank you
#6
![Default](/forum/images/icons/icon1.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
![Icon Banana](https://www.jaguarforums.com/forum/images/smilies/icon_banana.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
Any questions , just ask
https://www.youtube.com/watch?v=lrHsjr6TWAs
https://www.youtube.com/watch?v=j1eI-7XWjho
Thank you
#7
![Default](/forum/images/icons/icon1.gif)
Someone may know different, but I couldn't find ANYWHERE a compatible LCD display.
I'm pretty sutre the "slot" is the same but in your first picture (of the early Harmon Karden unit), there's bits of the plastic surround as well.
Everything is available if you want a modern head unit. This company has a good reputation, although I have np personal experience.
https://incartec.co.uk/Pages/Product.aspx?P=4778
I'm pretty sutre the "slot" is the same but in your first picture (of the early Harmon Karden unit), there's bits of the plastic surround as well.
Everything is available if you want a modern head unit. This company has a good reputation, although I have np personal experience.
https://incartec.co.uk/Pages/Product.aspx?P=4778
Trending Topics
#8
![Default](/forum/images/icons/icon1.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
![Icon Pala](https://www.jaguarforums.com/forum/images/smilies/icon_pala.gif)
![Icon Speaker1](https://www.jaguarforums.com/forum/images/smilies/icon_speaker1.gif)
There is no longer a source for the AJ9500A LED . The LED driver is pretty generic and will reverse engineer it but the glass has specific symbols for this stereo unit's application . I won't be trying the repair I came up with until next week . If it works I will probably be starting a side business with it as well as modifying the whole HU , Lady P. wants a new paintjob
![Icon Couchhide](https://www.jaguarforums.com/forum/images/smilies/icon_couchhide.gif)
Last edited by Lady Penelope; 12-28-2017 at 11:27 AM.
