I was closing the hood yesterday and it got half way and stopped.
It looked like it was hitting the passenger window so I lowered the window and the hood continued to close but stopped just before latching.
Having eventually found the pump I depressurized the system but the hood still doesn't want to move.
It is firmly stuck and I managed to drive it home slowly without a problem.
Any help would be appreciated - its very sunny here in Somerset today and I would have used it this afternoon!
Thank for your help
It looked like it was hitting the passenger window so I lowered the window and the hood continued to close but stopped just before latching.
Having eventually found the pump I depressurized the system but the hood still doesn't want to move.
It is firmly stuck and I managed to drive it home slowly without a problem.
Any help would be appreciated - its very sunny here in Somerset today and I would have used it this afternoon!
Thank for your help
Last edited by steveinfrance; 02-26-2013 at 10:37 AM.
#2
Hi.
In your drivers manual there is a chapter on how to move the top manually. In addition to depressurize the system, you may have to unlatch the rear part of the frame. Just be sure to follw the instructions to the letter.
If you manage to close the top, you can also latch it manually.
Now, if you get to move the top manually, move it up and down a couple of times befor putting pressure back on. This may help if the automatics have gotten out of sequence.
In your drivers manual there is a chapter on how to move the top manually. In addition to depressurize the system, you may have to unlatch the rear part of the frame. Just be sure to follw the instructions to the letter.
If you manage to close the top, you can also latch it manually.
Now, if you get to move the top manually, move it up and down a couple of times befor putting pressure back on. This may help if the automatics have gotten out of sequence.
#3
Windows will automatically drop an inch or so to accommodate the top. If you're intervening to do this yourself, there's another problem afoot.
When you repressurized, did the motor or rams sound normal? Groaning at all...slow? That closing requires the most pressure from the system, and if its not leaking at the latch, the rams themselves do blow seals. Check the fluid level to be sure you've not lost any.
When you repressurized, did the motor or rams sound normal? Groaning at all...slow? That closing requires the most pressure from the system, and if its not leaking at the latch, the rams themselves do blow seals. Check the fluid level to be sure you've not lost any.
#4
Windows will automatically drop an inch or so to accommodate the top. If you're intervening to do this yourself, there's another problem afoot.
When you repressurized, did the motor or rams sound normal? Groaning at all...slow? That closing requires the most pressure from the system, and if its not leaking at the latch, the rams themselves do blow seals. Check the fluid level to be sure you've not lost any.
When you repressurized, did the motor or rams sound normal? Groaning at all...slow? That closing requires the most pressure from the system, and if its not leaking at the latch, the rams themselves do blow seals. Check the fluid level to be sure you've not lost any.
When I press the hood button there is no response.I have looked in the drivers handbook and carried out what it says, and when I depressurise the system I cannot move the hood at all.How do I test the 40amp fuses or could it be a relay
#6
#7
Trending Topics
#8
Join Date: Oct 2007
Location: PHX some of the time
Posts: 117,804
Received 6,361 Likes
on
5,534 Posts
#9
If there's a click but no whirr you've obviously got an electrical problem - fuse or relay.
The location of all the relays and fuses is in the driver's handbook (you can download it from the HOW-TO's here if you haven't got one).
It's best to have your own source of this data in case the car bites you on the bum in the middle of nowhere.
You can swap relays to test. If the fuse is blown I'd be worried. Don't just replace it and hope - post back here.
The location of all the relays and fuses is in the driver's handbook (you can download it from the HOW-TO's here if you haven't got one).
It's best to have your own source of this data in case the car bites you on the bum in the middle of nowhere.
You can swap relays to test. If the fuse is blown I'd be worried. Don't just replace it and hope - post back here.
#10
If there's a click but no whirr you've obviously got an electrical problem - fuse or relay.
The location of all the relays and fuses is in the driver's handbook (you can download it from the HOW-TO's here if you haven't got one).
It's best to have your own source of this data in case the car bites you on the bum in the middle of nowhere.
You can swap relays to test. If the fuse is blown I'd be worried. Don't just replace it and hope - post back here.
The location of all the relays and fuses is in the driver's handbook (you can download it from the HOW-TO's here if you haven't got one).
It's best to have your own source of this data in case the car bites you on the bum in the middle of nowhere.
You can swap relays to test. If the fuse is blown I'd be worried. Don't just replace it and hope - post back here.
Thanks everyone for your help
Ive tried the things suggested and summarize below
The fluid level is slightly low I don't know if its leaked as I hadn't checked it before but I haven't seen any leaks.Its green.
The fuse is OK and I swapped the relays around and it still didn't work.
When I press the hood button there is a click from around the passenger drop down window. The door windows work properly as they drop slightly when the door is opened and return when its closed.The battery is fully charged and is kept on trickle charge although I don't know how old it is.Ive had the car 4 years.
The hood is securely stuck and when I depressurize it I cannot move it forward at all to latch it.
John
#11
Hi.
Are you sure you have depressurised the system correct by turning the valve fully anti clockwise? Then you should be able to manually open the closing latch by the allen key. Then you should be able to close the top manually.
The door windows should be slightly open doing this, and the aft quarter windows should be fully down. If the aft quarter windows are up and they do not lower when pushing the top down button momentarily, you might have to "jump wire" the respective relay sockets to get them down. Please advise if you don't know which relays I am talking about.
Are you sure you have depressurised the system correct by turning the valve fully anti clockwise? Then you should be able to manually open the closing latch by the allen key. Then you should be able to close the top manually.
The door windows should be slightly open doing this, and the aft quarter windows should be fully down. If the aft quarter windows are up and they do not lower when pushing the top down button momentarily, you might have to "jump wire" the respective relay sockets to get them down. Please advise if you don't know which relays I am talking about.
#12
What I think must have happened (but why I don't know) is the latch has closed before the hood engaged in it.
The hood hit the closed latch and the rams have gone over-centre so the hood is mechanically, not hydraulically, locked.
The latch closed + signal from the ram makes the BPM think the hood is fully up which is why the pump isn't running.
I'd guess the BPM is now confused and doesn't know what to do.
You can lower the top manually but you have to know where to push. The system is like an old fashioned pram hood.
What I'd do is try to lower manually.
I'd then (pump petcock still open) put the Allen key in the latch unlock hole and check the latch moves OK (oil at the same time)
Close the petcock.
Then do a hard reset and see what happens.
The hood hit the closed latch and the rams have gone over-centre so the hood is mechanically, not hydraulically, locked.
The latch closed + signal from the ram makes the BPM think the hood is fully up which is why the pump isn't running.
I'd guess the BPM is now confused and doesn't know what to do.
You can lower the top manually but you have to know where to push. The system is like an old fashioned pram hood.
What I'd do is try to lower manually.
I'd then (pump petcock still open) put the Allen key in the latch unlock hole and check the latch moves OK (oil at the same time)
Close the petcock.
Then do a hard reset and see what happens.
Last edited by steveinfrance; 02-23-2013 at 06:34 AM.
#13
And to add to the good advice above, top up your fluid with Pentosin CHF-11S. The system may malfunction due to the fluid being even a little low.
#15
He could also unplug the 2-wire connector at the pump and try briefly applying 12v battery directly to it for a quick confirmation as to whether it is the culprit.
Last edited by WhiteXKR; 02-23-2013 at 08:51 AM.
#16
Have now determined that
The pump works having connected a 12v battery to it
I connected a multimeter to the connector that goes into the pump and tried the hood switch and there was no voltage - does this suggest that the switch is u/s and if so how do I get it out (tried to download the JTIS but it wouldn't work)

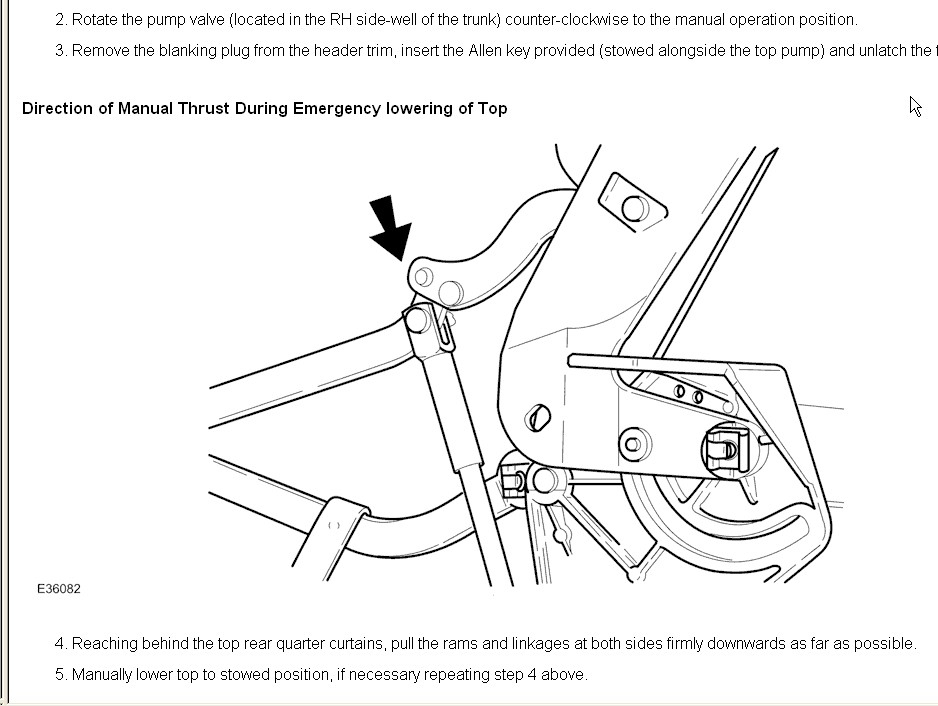

Thanks Steve for the diagram of the manual thrust - I'm not the biggest of men but I couldn't push/pull the linkages. The near vertical strut in the diagram is pinned through the horizontal linkage (just below the arrow) with a retaining clip. If I removed the clip and disconnected the vertical link would this have any dire consequences/
Thanks again everyone
The pump works having connected a 12v battery to it
I connected a multimeter to the connector that goes into the pump and tried the hood switch and there was no voltage - does this suggest that the switch is u/s and if so how do I get it out (tried to download the JTIS but it wouldn't work)
Thanks Steve for the diagram of the manual thrust - I'm not the biggest of men but I couldn't push/pull the linkages. The near vertical strut in the diagram is pinned through the horizontal linkage (just below the arrow) with a retaining clip. If I removed the clip and disconnected the vertical link would this have any dire consequences/
Thanks again everyone
#17
I can't push hard enough to get the bugga over centre either.
I think your actual switch is OK since you said the windows move when you operate it.
My guess is the BPM's confused. It gets out of sync and panics.
Unfortunately that may require retracting the lift ram so the end-of-travel microswitch opens.
The good news is your pump isn't toast.
Can you confirm the hood is banged up against the top of the windscreen?
If so, try taking out the blanking plug in the windscreen header, undo the petcock on the pump and use the Allen key clipped to the pump to turn the catch clockwise.
If there's a big clunk and the hood goes home turn the Allen key anti-clockwise, close the petcock and try an open.
I don't know enough to say if you can pull out that pin. It may be OK.
JTIS will download - what OS are you on ?
I think your actual switch is OK since you said the windows move when you operate it.
My guess is the BPM's confused. It gets out of sync and panics.
Unfortunately that may require retracting the lift ram so the end-of-travel microswitch opens.
The good news is your pump isn't toast.
Can you confirm the hood is banged up against the top of the windscreen?
If so, try taking out the blanking plug in the windscreen header, undo the petcock on the pump and use the Allen key clipped to the pump to turn the catch clockwise.
If there's a big clunk and the hood goes home turn the Allen key anti-clockwise, close the petcock and try an open.
I don't know enough to say if you can pull out that pin. It may be OK.
JTIS will download - what OS are you on ?
Last edited by steveinfrance; 02-24-2013 at 10:27 AM.
#18
It's really good that the pump is alive, as these are crazy expensive. (Just to be sure, check that the pump will run in both directions by reversing the battery polarity.)
Once you get the top unstuck ...
You hear some sort of click when you depress the "roof" switch on the console, yes? If so, that switch is probably OK. We're then into the collection of modules and switches and relays that end up sending voltage
to the pump. You'll need the relevant doc's to trouble-shoot this stuff. I think these are pretty well identified in the "How to" sticky thread.
Good luck.
Once you get the top unstuck ...
You hear some sort of click when you depress the "roof" switch on the console, yes? If so, that switch is probably OK. We're then into the collection of modules and switches and relays that end up sending voltage
to the pump. You'll need the relevant doc's to trouble-shoot this stuff. I think these are pretty well identified in the "How to" sticky thread.
Good luck.
#19
