looking for a pair of wornout xk8 front shock mounts
#1
![Default](/forum/images/icons/icon1.gif)
I am going to be replacing my xk8 front upper shock mounts and have an idea I want to try. If you have a pair used upper shock mounts that you would like to (sell) get rid of please contact me.
Tony Chiles
t06chiles-at-bellsouth-dot-net
"Make it a GREAT day"
Tony Chiles
t06chiles-at-bellsouth-dot-net
"Make it a GREAT day"
Last edited by tony chiles; 02-02-2014 at 08:44 PM. Reason: subject changed
#2
The following users liked this post:
tony chiles (11-12-2013)
The following users liked this post:
tony chiles (11-12-2013)
#4
Join Date: Apr 2012
Location: Summerville, South Carolina
Posts: 24,624
Received 4,285 Likes
on
3,704 Posts
The following users liked this post:
tony chiles (11-12-2013)
The following users liked this post:
tony chiles (11-12-2013)
#7
Join Date: Apr 2012
Location: Summerville, South Carolina
Posts: 24,624
Received 4,285 Likes
on
3,704 Posts
The following users liked this post:
tony chiles (11-13-2013)
Trending Topics
#8
Join Date: Apr 2012
Location: Summerville, South Carolina
Posts: 24,624
Received 4,285 Likes
on
3,704 Posts
#10
![Default](/forum/images/icons/icon1.gif)

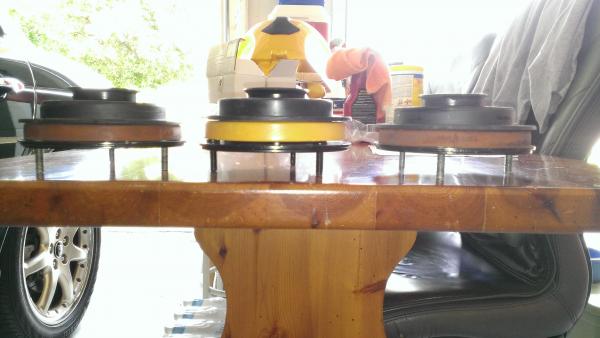

Front shock mount rebuild
So I ask for a pair of used shock mounts and “sklimii” one of the moderators hooked me up. So with shock mounts in hand I started to work on my alternative to the super foam donuts that is used on these. I found some 3/4” plastic materialfrom McMaster Carr that was 12x24, enough to make 4 sets. I took some measurements and drew up the part I wanted and took the material to local machine shop (word of warning, machine work can be more expensive than you realized
![Icon Omg](https://www.jaguarforums.com/forum/images/smilies/icon_omg.gif)
This is off a1997 xk8 with 54K miles and they are shot
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71186-looking-pair-wornout-xk8-front-shock-mounts-img_1013.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71187-looking-pair-wornout-xk8-front-shock-mounts-img_1014.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71188-looking-pair-wornout-xk8-front-shock-mounts-img_1016.jpg?dateline=1391393656)
New donut from the machine shop
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71189-looking-pair-wornout-xk8-front-shock-mounts-img_1017.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71190-looking-pair-wornout-xk8-front-shock-mounts-img_1018.jpg?dateline=1391393656)

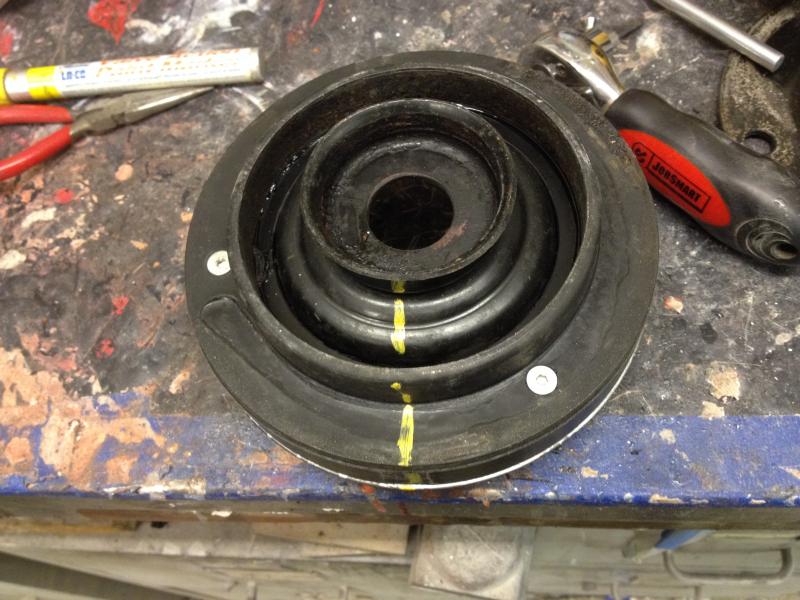

I wanted to be sure that the spring seat would not slide around or jump over the lip in the above picture so three stainless screwswere used to attach the spring seat to the plastic donut as seen in the next two pictures
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71191-looking-pair-wornout-xk8-front-shock-mounts-img_1021.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71192-looking-pair-wornout-xk8-front-shock-mounts-img_1020.jpg?dateline=1391393656)
From the above picture you can see that some relief was added for the studs, screws and internal notches for the riser that is just below the yellow paint.
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71193-looking-pair-wornout-xk8-front-shock-mounts-img_1038.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71194-looking-pair-wornout-xk8-front-shock-mounts-img_1024.jpg?dateline=1391393656)
The picture above shows a 1 1/16” wrench for reference

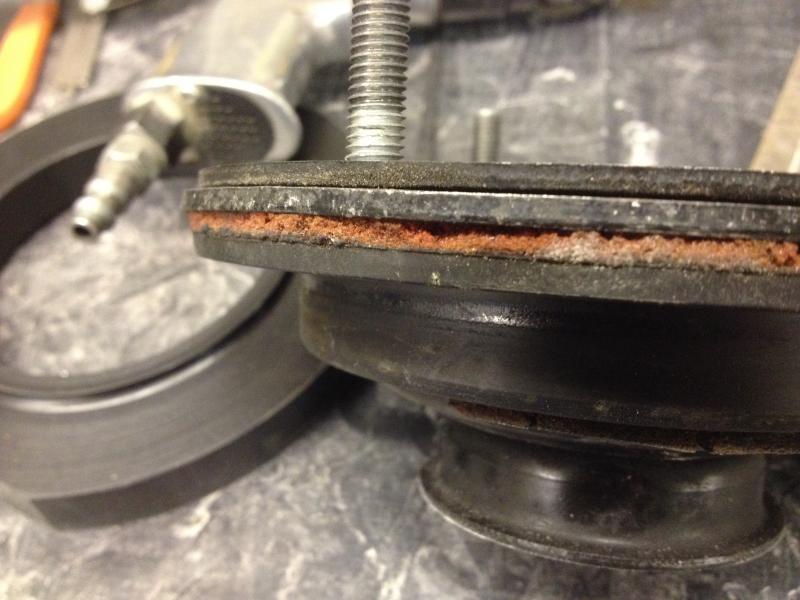

The pictures below show the foam donuts that are used to isolate a washer for the shock to mount to. When these go bad they will not be centered in the upper shock mount cup, and they can look just as nasty.
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71195-looking-pair-wornout-xk8-front-shock-mounts-img_1034.jpg?dateline=1391393656)
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71196-looking-pair-wornout-xk8-front-shock-mounts-img_1030.jpg?dateline=1391393656)
These foam donuts are compressed when the top part ofthe shock mount is added
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71197-looking-pair-wornout-xk8-front-shock-mounts-img_1031.jpg?dateline=1391393656)
and to keep this all together I supersized the 3 rivets from 1/8 to 3/16, for demonstration one is shown below. Note that the inside donuts are not in the shock mount, this picture was just to show the rivet. i need to find a suitable replacment for the foam donuts in the cup. I had one set of foam donuts that were reusable, but these are not and i am looking for an alternative at this time.
![](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/71198-looking-pair-wornout-xk8-front-shock-mounts-img_1026.jpg?dateline=1391393656)
In the end I have to agree with Sam that it is easier just to buy the shock mounts and install them, but if you want a solution that will last the life of the car, this is it.
The following 2 users liked this post by tony chiles:
giandanielxk8 (02-03-2014),
hobo (02-02-2020)
#11
![Default](/forum/images/icons/icon1.gif)
Tony - thanks for this great & informative how-to/"or NOT!" on the ever-troublesome front shock mounts. In the end, you've convinced me to go with the ready-made prefabricated replacement mounts. However I congratlulate you on your initiative, mechanical skills, and photography. The guys like you are the spirit of this great Forum.
#13
![Default](/forum/images/icons/icon1.gif)
the donuts are 150.00 a pair. my cost was 425.00 just for the donuts and then I did more work on them to add the reliefs for the screws, studs and risers
There are only three sets available.
I might be able to do a refurbishing swap if I can fine some material to isolate the shock washer.
You can pm
"Make it a GREAT day"
Tony Chiles
There are only three sets available.
I might be able to do a refurbishing swap if I can fine some material to isolate the shock washer.
You can pm
"Make it a GREAT day"
Tony Chiles
