Need help to find phone connection
#1
![Default](/forum/images/icons/icon1.gif)

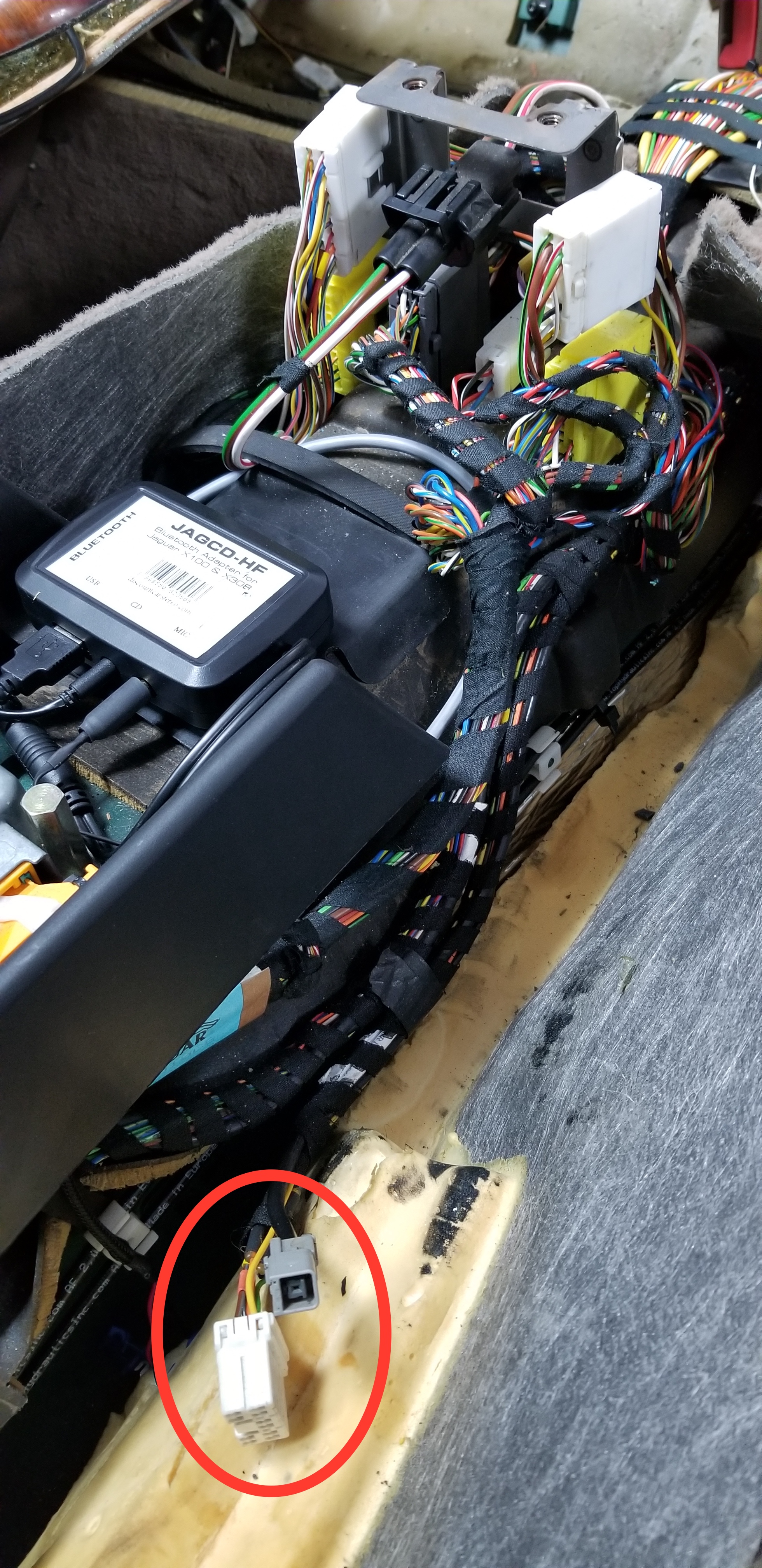

Hi All. I am installing the Bluetooth phone kit from Discountstereo.com. It shows getting power and ground from the Jag phone connector but the listing they give doesn't match any of the colors on the connectors in the center console area. My question is, is the circled empty connector in the picture the phone connector? 2000 XK8.
#2
#3
![Default](/forum/images/icons/icon1.gif)

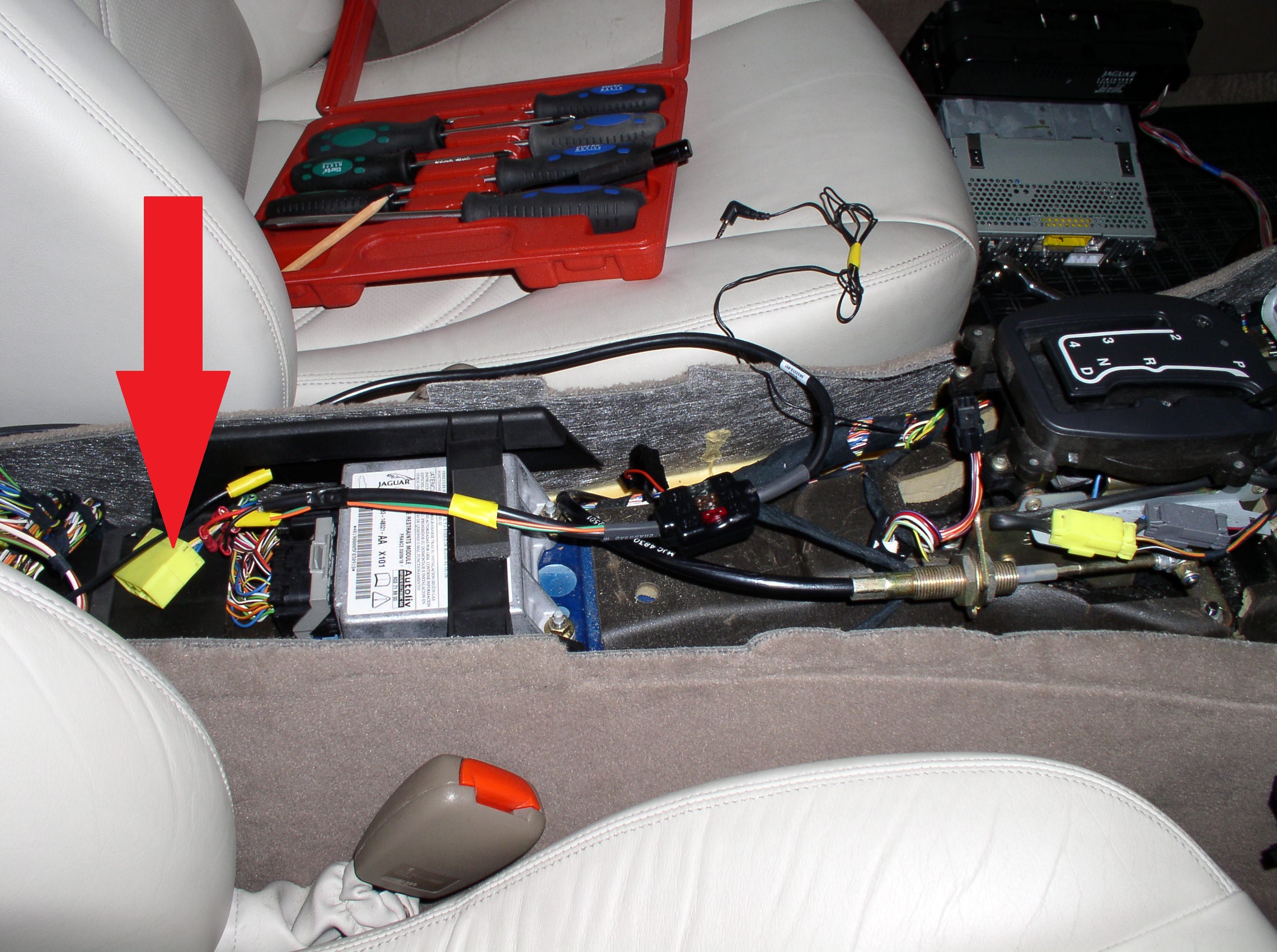

Here's the yellow phone connector in my 2001 XK8:
![Need help to find phone connection-phone.jpg](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/209274d1516958067t-need-help-find-phone-connection-phone.jpg)
I did this list of the early (white) and later (yellow) telephone socket pinouts when I was fitting a Parrot BT to the 2001:
Telephone Socket Pin Numbering.pdf
The socket changeover from 10-Way to 14-Way was around 2000.
Graham
![Need help to find phone connection-phone.jpg](https://www.jaguarforums.com/forum/attachments/xk8-xkr-x100-17/209274d1516958067t-need-help-find-phone-connection-phone.jpg)
I did this list of the early (white) and later (yellow) telephone socket pinouts when I was fitting a Parrot BT to the 2001:
Telephone Socket Pin Numbering.pdf
The socket changeover from 10-Way to 14-Way was around 2000.
Graham
#4
#5
![Default](/forum/images/icons/icon1.gif)
Here's the yellow phone connector in my 2001 XK8:
Attachment 209274
I did this list of the early (white) and later (yellow) telephone socket pinouts when I was fitting a Parrot BT to the 2001:
Attachment 209275
The socket changeover from 10-Way to 14-Way was around 2000.
Graham
Attachment 209274
I did this list of the early (white) and later (yellow) telephone socket pinouts when I was fitting a Parrot BT to the 2001:
Attachment 209275
The socket changeover from 10-Way to 14-Way was around 2000.
Graham
#6
Join Date: Oct 2007
Location: PHX some of the time
Posts: 117,603
Received 6,332 Likes
on
5,517 Posts
The following users liked this post:
motorcarman (01-26-2018)
