OBD2 wont communicate with my car
#21
Maby some help.
P1000 OBD Systems Readiness Test Not Complete
P1637 CAN Link ECM/ABS Control Module Circuit/Network
P1638 CAN Link ECM/INSTM Circuit/Network
P1642 CAN Link Circuit
P1643 CAN Link Engine Control Module/Transmission Control Module Circuit/Network
Looks to me like it's saying the CAN is screwed.
But it is doing more now that it has since I got the car.
P1637 CAN Link ECM/ABS Control Module Circuit/Network
P1638 CAN Link ECM/INSTM Circuit/Network
P1642 CAN Link Circuit
P1643 CAN Link Engine Control Module/Transmission Control Module Circuit/Network
Looks to me like it's saying the CAN is screwed.
But it is doing more now that it has since I got the car.
Some life is better than none!
The CAN by definitionis is quite ridgid and it only seems it cant find it's pals on the network.
Check the CAN wires, it should be about 60 ohm resistance. If it is infinite or zero you have a bad wire. If its 120 ohms one side of the bus is bad. I'm not sure which modules are at the end of the bus with the terminator resistors inside. But if they are not there it wont work. As all modules are lost this would be my first check.
See this thread from somewhere else.
CAN Physical Layer and Termination Guide - National Instruments
Good luck!
/Daniel
The following users liked this post:
jaglenn (04-20-2014)
#22
I don't know on this jag but on the S-Type with CAN (so, 2003+) the terminators are in the PCM (aka ECM) and the ICM (dash aka cluster).
With one water-damaged PCM what is/are the other(s) like? Is the PCM connector good (clean, dry, lithium grease etc)?
You can take modules off the bus if need be so long as if you take one with a terminator off you add your own terminator (120 ohm resistor).
With one water-damaged PCM what is/are the other(s) like? Is the PCM connector good (clean, dry, lithium grease etc)?
You can take modules off the bus if need be so long as if you take one with a terminator off you add your own terminator (120 ohm resistor).
#24
#25

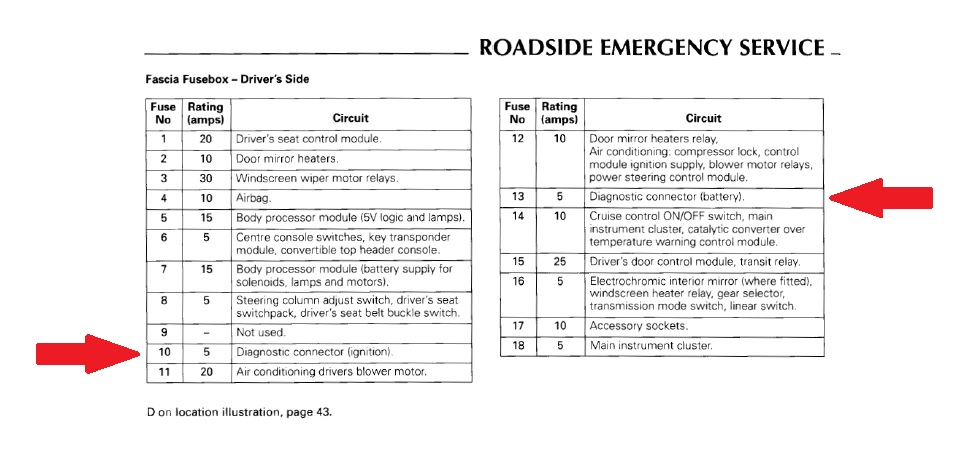

Graham, your fuse diagram is for what car?..
Both DLC fuses OK and your scantool known to work on XK8/XKR?
Attachment 80714
(click on the image to enlarge it)
Graham
Attachment 80714
(click on the image to enlarge it)
Graham
#26
#29
#30
I've had 3 out of 5 perfectly good OBD2 scanners that could not communicate with my 2000 XK8. Of the two that did work, one was too dumb to provide the detailed info that I needed and the other was a bluetooth OBD2 dongle that transmits the data to a PC or tablet that runs various OBD2 diagnostic apps. Something is odd or non-standard about the OBD2 on this Jag.
So you might try another different model scanner.
So you might try another different model scanner.
