XK8 / XKR ( X100 ) 1996 - 2006

oil pressure switch that went bad

Thread Tools

Search this Thread

  #1
Old 08-14-2013, 08:51 PM
nine7xk8's Avatar
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Los Angeles
Posts: 108
Likes: 0
Received 12 Likes on 12 Posts
Default oil pressure switch that went bad

My oil pressure light was going to red and back to normal. This is what I found


Last edited by GGG; 08-15-2013 at 02:51 AM. Reason: edit typo in thread title so it appears in searches
  #2
Old 08-14-2013, 09:03 PM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,988 Likes on 2,125 Posts
Default

Originally Posted by nine7xk8
My oil pressure light was going to red and back to normal. This is what I found

Is it only during idling or when you are driving also?

  #3
Old 08-15-2013, 12:41 AM
nine7xk8's Avatar
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Los Angeles
Posts: 108
Likes: 0
Received 12 Likes on 12 Posts
Default

what I found was this white xkr . a broken sending unit

Attached Thumbnails oil pressure switch that went bad-20130814_184528.jpg
  #4
Old 08-15-2013, 12:43 AM
nine7xk8's Avatar
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Los Angeles
Posts: 108
Likes: 0
Received 12 Likes on 12 Posts
Default

that is to tell me that when people get this type of problem, its most likely this pressure switch thats causing it. Even if the switch dont look broken the way mine did, I could imagine that they go bad

  #5
Old 08-15-2013, 12:51 AM
nine7xk8's Avatar
Senior Member
Thread Starter
Join Date: Jul 2011
Location: Los Angeles
Posts: 108
Likes: 0
Received 12 Likes on 12 Posts
Default

P.s. People that dont have a rag top xk8 wish they did. hardtops are not that attractive. and why does it seem like the more you work on these cars the more you fall inlove with them

  #6
Old 08-15-2013, 02:54 AM
GGG's Avatar
GGG
GGG is offline
Join Date: Dec 2011
Location: Durham, UK
Posts: 120,461
Received 16,852 Likes on 12,186 Posts
Default

Originally Posted by nine7xk8
P.s. People that dont have a rag top xk8 wish they did. hardtops are not that attractive. and why does it seem like the more you work on these cars the more you fall inlove with them
If I lived in LA, I'd probably agree about the Convertible. If you lived in the UK, you'd probably prefer the Coupe.

Graham

  #7
Old 08-15-2013, 06:18 AM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,988 Likes on 2,125 Posts
Default

Originally Posted by nine7xk8
that is to tell me that when people get this type of problem, its most likely this pressure switch thats causing it. Even if the switch dont look broken the way mine did, I could imagine that they go bad
Besides the switch, another common cause is the oil sump screen getting clogged with plastic bits from broken tensioners and chain guides.

  #8
Old 08-15-2013, 10:01 AM
Paul Pavlik's Avatar
Veteran Member
Join Date: Aug 2009
Location: Milwaukee, WI
Posts: 1,205
Received 431 Likes on 323 Posts
Default

Originally Posted by nine7xk8
P.s. People that dont have a rag top xk8 wish they did. hardtops are not that attractive. and why does it seem like the more you work on these cars the more you fall inlove with them
Gosh, I thought that my car was Beautiful. Glad that you clarified that.

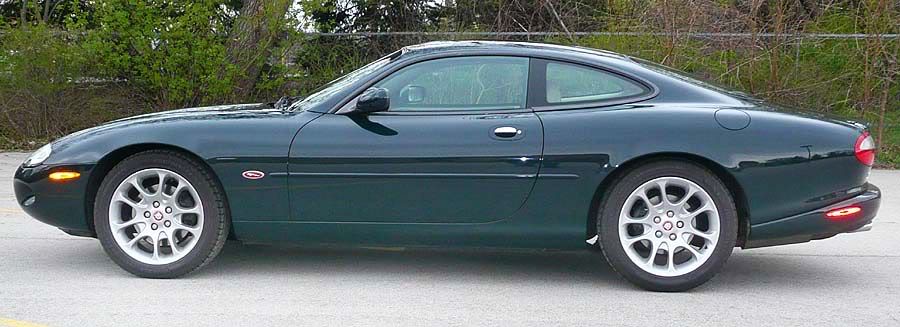

Attached Thumbnails oil pressure switch that went bad-myxkr09b.jpg
The following users liked this post:
The Coupe (08-15-2013)
  #9
Old 08-15-2013, 01:56 PM
H20boy's Avatar
Veteran member
Join Date: Mar 2007
Location: Oak Ridge, TN
Posts: 11,338
Received 1,151 Likes on 753 Posts
Default

Originally Posted by WhiteXKR
Besides the switch, another common cause is the oil sump screen getting clogged with plastic bits from broken tensioners and chain guides.
...or remember the block shavings I found?!?

  #10
Old 08-15-2013, 03:22 PM
Mr. Feathers's Avatar
Senior Member
Join Date: Jul 2013
Location: California, USA
Posts: 212
Received 29 Likes on 22 Posts
Default

I second the oil switch thing. I actually paid $150 for the dealer's second opinion - which was A) bad switch, or b) worn rod bearings. Bought a switch for $18 from O'Reillys and replaced it myself & that fixed the problem instantly Now I wish I hadn't wasted money at the dealer...

  #11
Old 08-15-2013, 04:02 PM
SteveJacks's Avatar
Senior Member
Join Date: Jul 2011
Location: Jacksonville
Posts: 568
Received 192 Likes on 135 Posts
Default

Originally Posted by Paul Pavlik
Gosh, I thought that my car was Beautiful. Glad that you clarified that.

I want one of each, both are beautiful.

  #12
Old 08-15-2013, 04:06 PM
WhiteXKR's Avatar
Veteran Member
Join Date: Apr 2010
Location: Arlington VA USA
Posts: 7,652
Received 2,988 Likes on 2,125 Posts
Default

Originally Posted by Mr. Feathers
I second the oil switch thing. I actually paid $150 for the dealer's second opinion - which was A) bad switch, or b) worn rod bearings. Bought a switch for $18 from O'Reillys and replaced it myself & that fixed the problem instantly Now I wish I hadn't wasted money at the dealer...

The switches do go bad, but an oil sump clogged with plastic bits is also a reality on these engines and an inspection can give you an idea as to the condition of the plastic timing components.
