Seized front upper wishbone!!
#1
Seized front upper wishbone!!
Hi all.
Today I decided to investigate the firm ride on my recently aquired 1999 XK8.
After going over a few sleeping policemen I had noticed how smooth the nearside was compared to the offside,so I jacked up the n/s and I had to jack it up quite away before the wheel cleared the ground.
Not so the o/s,didnt go up very far before the wheel was clear.
I loosened off the upper spring mounts to see if it was a seized damper,but no.
I then disconnected the top ball joint to test the lower and upper wishbones,and found the lower moves as I would expect but the upper is frozen solid.
I am now in the process of giving it liberal doses of WD40,I have loosened off the nut and tried to turn the bolt with the help of a long lever,but dont want to force it to the point of breaking something, :roll: so I am gently levering it up and down in the hope that I can free it off.
As all the other bushes are moving as they should and dont show signs of wear I am giving them all a liberal dose of WD40 to hopefully help prevent them seizing up,and when I get more time I will remove and grease the bolts.
I have no doubt that a few of you have experienced this,so please feel free to divulge any tricks of the trade that you used to free them off???
I will of course be replaceing the bushes or if need be the whole upper wishbone,what i dont want to have happen is the subframe breaking on me! :shock:
Thanks in advance for all the help and tips that I hope will come flooding in!! :wink:
Dave
Today I decided to investigate the firm ride on my recently aquired 1999 XK8.
After going over a few sleeping policemen I had noticed how smooth the nearside was compared to the offside,so I jacked up the n/s and I had to jack it up quite away before the wheel cleared the ground.
Not so the o/s,didnt go up very far before the wheel was clear.
I loosened off the upper spring mounts to see if it was a seized damper,but no.
I then disconnected the top ball joint to test the lower and upper wishbones,and found the lower moves as I would expect but the upper is frozen solid.
I am now in the process of giving it liberal doses of WD40,I have loosened off the nut and tried to turn the bolt with the help of a long lever,but dont want to force it to the point of breaking something, :roll: so I am gently levering it up and down in the hope that I can free it off.
As all the other bushes are moving as they should and dont show signs of wear I am giving them all a liberal dose of WD40 to hopefully help prevent them seizing up,and when I get more time I will remove and grease the bolts.
I have no doubt that a few of you have experienced this,so please feel free to divulge any tricks of the trade that you used to free them off???
I will of course be replaceing the bushes or if need be the whole upper wishbone,what i dont want to have happen is the subframe breaking on me! :shock:
Thanks in advance for all the help and tips that I hope will come flooding in!! :wink:
Dave
#2
If the nut is off, you won't break anything, there is nothing else to keep the a-arm bolt from turning. My guess is that the bolt head is corroded to the first shim and/or the the bushing sleeve. keep shooting some wd-40 as far into the bushing that you can, then just wrench it eventually. You could tap the nut end of the bolt, see if you can break it free with just few hard smacks, but don't damage the threads. In fact, this is how I got a seized bolt out of my lower shock bushing...i put the nut back on, threaded it till the bolt was about to protrude through the nut, then wacked the nut.
#4
Anyway will carry on squirting,hitting and levering,maybe I need a longer lever that 5ft!!!
When I do lever the bolt head back and forth via a socket and extension,the top of the subframe flexes and thats what I worry about breaking!
Even the best penetrating fluids can take time to do the job!
Now if it wasnt hissing down and windy and I had finished building my carport I could be out there having another go and be dry,as the garage has my other 2 classics in it.
Ah well,I will have to stay in and carry on with the leather seat refurb for my Rover!
Dave
#6
Hi Pilkie, Been there done that! I notice you are based in Bristol, so your car will have suffered the dreaded British salt and damp like mine.
I recently replaced the upper bushes on my 2000 XKR for the same reasons you'r experiencing.
One of my fulcrum bolts was stuck solid within the sub frame, actually corroded on to it, see pics.
So bad was it I had to cut through the fulcrum bolt at the thread end and even then it refused to move. I had to resort to using a blow lamp to heat and cool it, with plenty of penertrating oil and a big spanner at the other end. This bolt was seriously stuck.

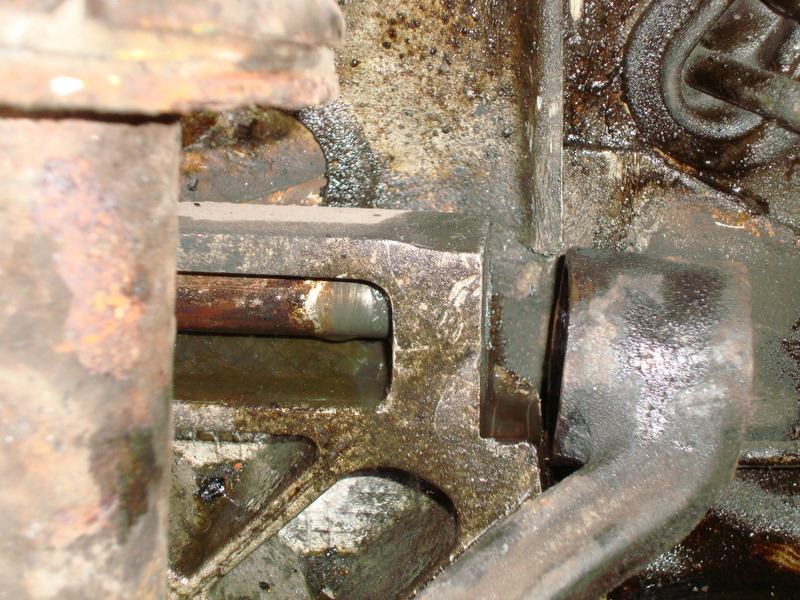

Several patient hours later I managed to get it out. See pics. The rusty lump is the remains of one end of the fulcrum bolt and the inner bushing. I hope you don't have the same problems as me.
