Transit Isolation Module Location
#1
![Default](/forum/images/icons/icon1.gif)
Howdy Folks:
Would someone tell me exactly where the Transit Isolation Module is located. My understanding from the wiring diagram is that it is adjacent to the battery, but I am not finding it nor its associated connectors if it has been removed. I suspect a leaking current through its internal 25 amp fuse that may be causing my battery drain. Thanks for any help.
Would someone tell me exactly where the Transit Isolation Module is located. My understanding from the wiring diagram is that it is adjacent to the battery, but I am not finding it nor its associated connectors if it has been removed. I suspect a leaking current through its internal 25 amp fuse that may be causing my battery drain. Thanks for any help.
#2
The following users liked this post:
Dr. D (03-13-2011)
#3
![Default](/forum/images/icons/icon1.gif)

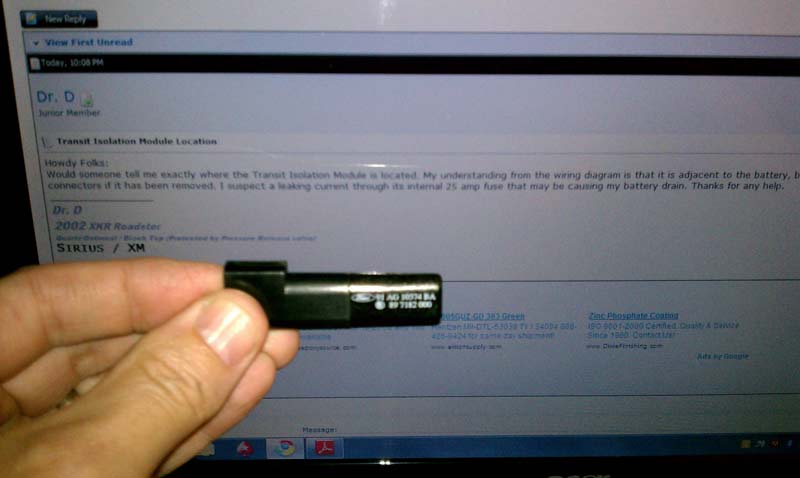

That's interesting. I went out into the garage to see if I could find it and I found this thing (in the pic below). It's plugged into a big fat harness that runs parallel to battery and it has two red wires with white stripes plugged into it. I've looked through the electrical guide to see if I can figure out what it is, but I still have no idea. However, when I unplug it everything dies. Everything electrical quits working.
#4
![Default](/forum/images/icons/icon1.gif)
Thanks for the PDF. That eliminates my leak being in that circuit or the body processor module circuit, leaving only the passenger door module circuit (driver side checked OK). I did not realize that both door module fuses were removed for shipping. Again thanks a million.
#5
![Default](/forum/images/icons/icon1.gif)
That's interesting. I went out into the garage to see if I could find it and I found this thing (in the pic below). It's plugged into a big fat harness that runs parallel to battery and it has two red wires with white stripes plugged into it. I've looked through the electrical guide to see if I can figure out what it is, but I still have no idea. However, when I unplug it everything dies. Everything electrical quits working.
#7
Trending Topics
#8
#9
![Default](/forum/images/icons/icon1.gif)
Oh... I know what happened. Earlier in the day I was fiddling with my door handle gaskets and I disconnected the battery to avoid cutting off my hands accidentally. Last night I pulled that little diode thing out and the trunk lights went out. I assumed it had killed everything electrical, so after I plugged it back in and went to see if my windows had lost their memory, which they had. I assumed that it was because of the little thing I unplugged, but in retrospect I realize that memory loss was caused by the work I did earlier in the day.
#10
![Default](/forum/images/icons/icon1.gif)
Several of us have been ******* down reluctant boot lights, mine have a mind of their own. This could be a clue. Thanks.
