XKR intake manifold gasket torque/bolt pattern?
#1
#2
#3
![Default](/forum/images/icons/icon1.gif)

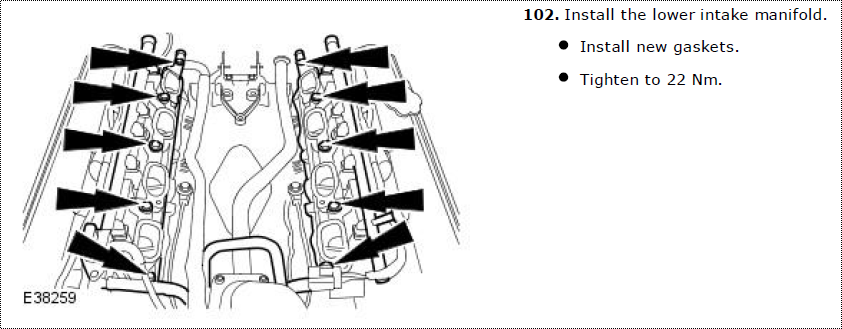

Look in the engine assembly section of JTIS for the 2003. Everything associated with the intake is 22 nM. The lower manifold, charge air coolers to manifold and the supercharger. Start in the center and work your way outward alternating back and forth along the fasteners.
I normally torque to half value and then retrace the pattern to full value.
E..G. bolt down the center 2 and move to the next to towards the front and then go to the 2 towards the back. Repeat until they are all torqued.
I normally torque to half value and then retrace the pattern to full value.
E..G. bolt down the center 2 and move to the next to towards the front and then go to the 2 towards the back. Repeat until they are all torqued.
#4
#5
![Default](/forum/images/icons/icon1.gif)
Are you talking about the 'charge cooler inlet assembly'?... the black rubber ducts and plates that connect the supercharger outlet plate to the two intercooler inlets? In the '99 Manual, they're 18-24Nm.
Or... the Supercharger outlet plate that sits on top of the supercharger with the integrated supercharger coolant port on top, with 4 mount bolts and a rubber gasket?... those bolts are at 9-11Nm. I would recommend that you DO NOT torque them to 22Nm or you risk them snapping off in their holes and needing to use ezyouts to drill out the bolt stubs.
Those numbers are for a 4.0 litre blower, from the '99 workshop manual but the 4.2 litre blower and connections are pretty much the same. I just did mine last week! Painfull process!
Quick warning...clean any bolts that you've removed and their threaded holes properly and don't over torque them. Remember that we're talking aluminium here, and the threads strip easily, and if they do, you're stuck with trying to put helicoils in there, which is painful. If the threads strip on the duct plates (which I've had happen)... you'll need to either get replacement plates, which cost a fortune new, or bodge up 'through bolts' with a nut and spring washer to get them up to torque and stop the rubber ducts from deforming into the plenum outlet. You don't want to go there... trust me, plus it looks messy.
Also, it's worth buying new supercharger outlet plate bolts (as recommended in the manual) if yours aren't in good condition as they are only 6mm x 1mm pitch bolts and they strip and break really easily.
Good luck.
Jack.
Or... the Supercharger outlet plate that sits on top of the supercharger with the integrated supercharger coolant port on top, with 4 mount bolts and a rubber gasket?... those bolts are at 9-11Nm. I would recommend that you DO NOT torque them to 22Nm or you risk them snapping off in their holes and needing to use ezyouts to drill out the bolt stubs.
Those numbers are for a 4.0 litre blower, from the '99 workshop manual but the 4.2 litre blower and connections are pretty much the same. I just did mine last week! Painfull process!
Quick warning...clean any bolts that you've removed and their threaded holes properly and don't over torque them. Remember that we're talking aluminium here, and the threads strip easily, and if they do, you're stuck with trying to put helicoils in there, which is painful. If the threads strip on the duct plates (which I've had happen)... you'll need to either get replacement plates, which cost a fortune new, or bodge up 'through bolts' with a nut and spring washer to get them up to torque and stop the rubber ducts from deforming into the plenum outlet. You don't want to go there... trust me, plus it looks messy.
Also, it's worth buying new supercharger outlet plate bolts (as recommended in the manual) if yours aren't in good condition as they are only 6mm x 1mm pitch bolts and they strip and break really easily.
Good luck.
Jack.
#7
![Default](/forum/images/icons/icon1.gif)
I have attached a picture of the part I'm talking about, it has 5 bolts on both the left/right side, the fuel injectors connect to it and the charge air coolers sit on top. I found one reference of it in the JTIS that calls it the "charge air cooler adapter" but I can't find anything that gives me the torque number.
I'm guessing it is supposed to be torqued to the same number as the intake manifold on an XK8 at 21 Nm but I wanted to make sure...
I'm guessing it is supposed to be torqued to the same number as the intake manifold on an XK8 at 21 Nm but I wanted to make sure...
